Integrated Power Module (IPM)

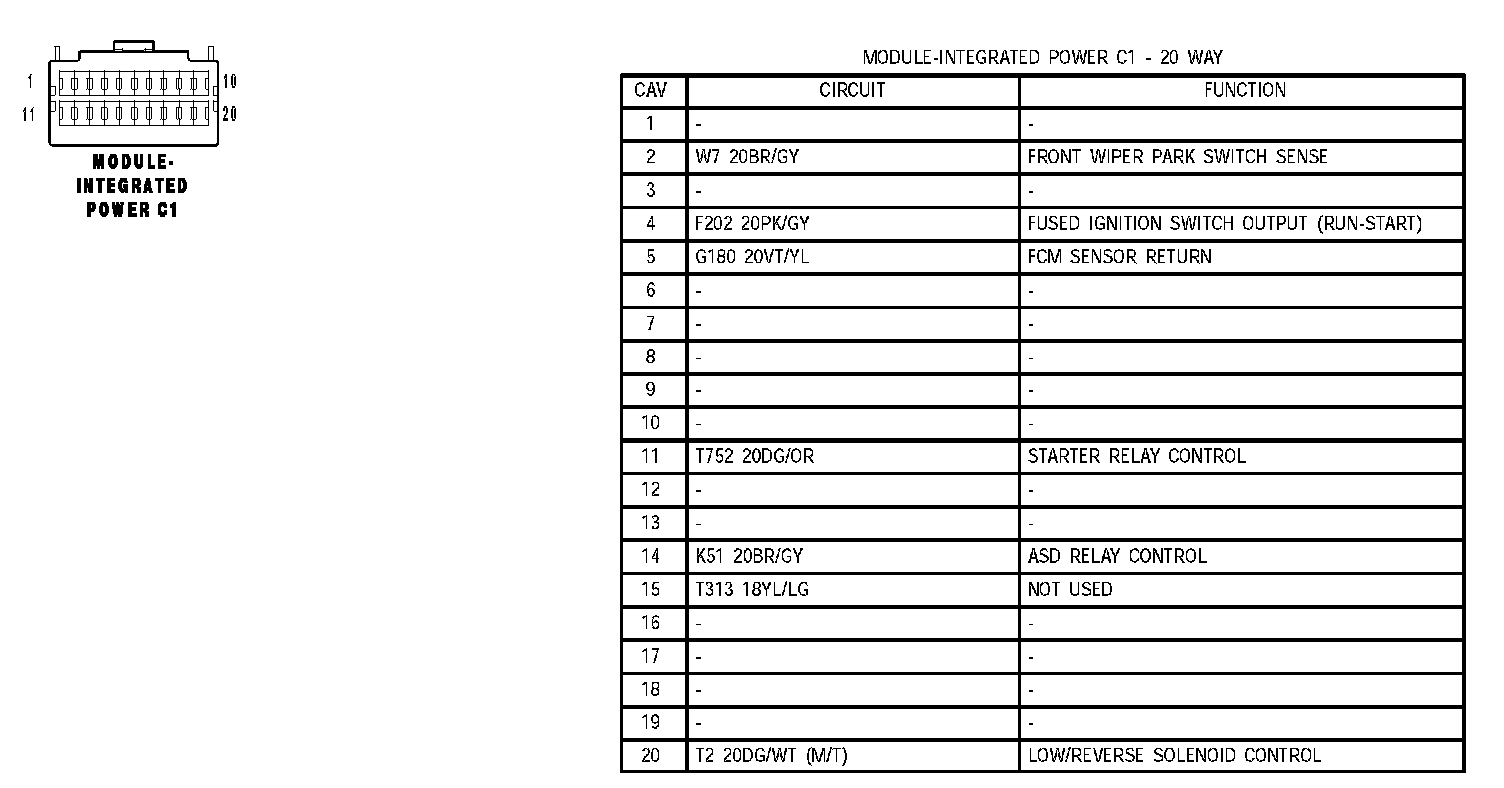

Module Integrated Power C1:

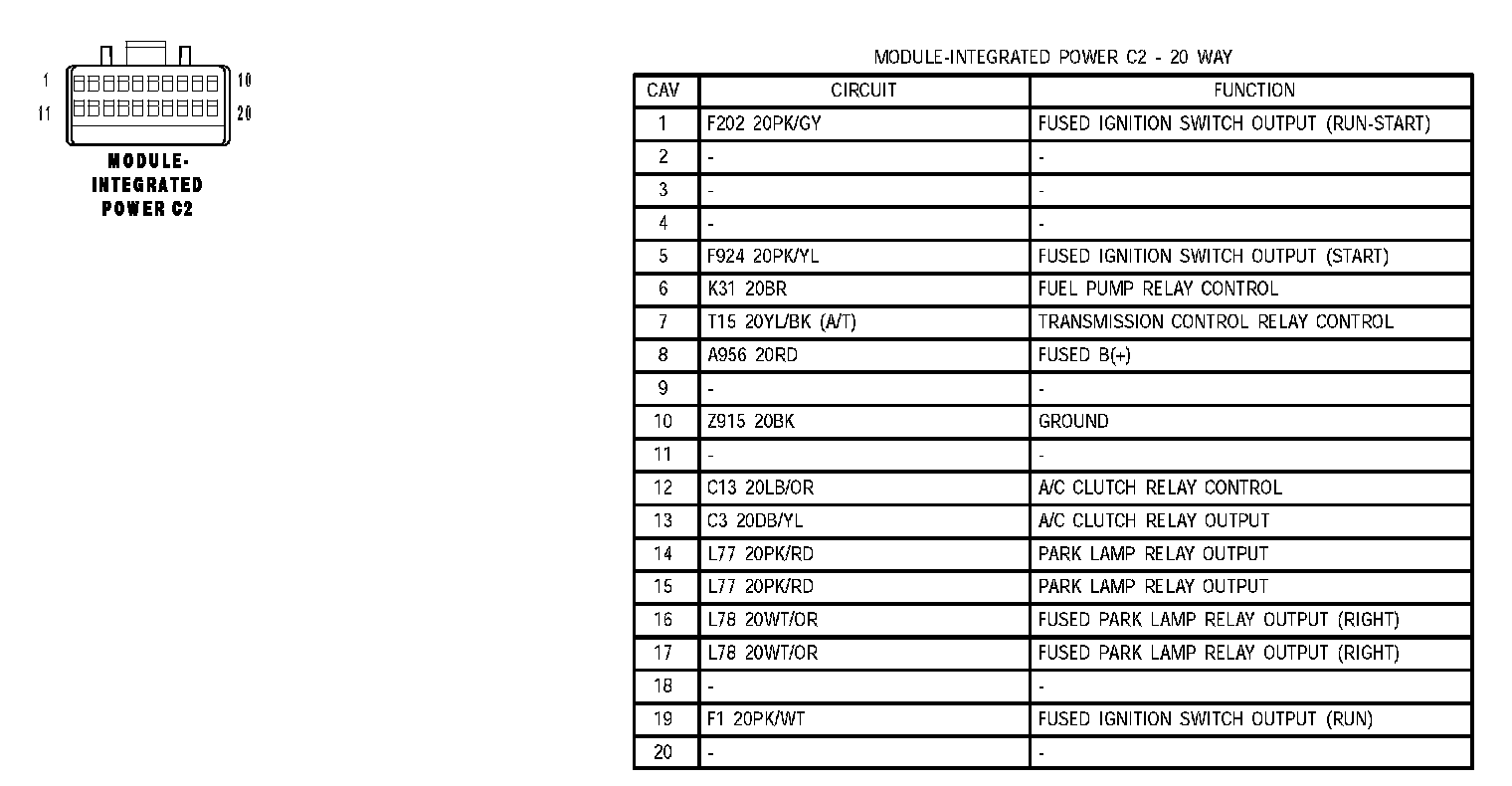

Module Integrated Power C2:

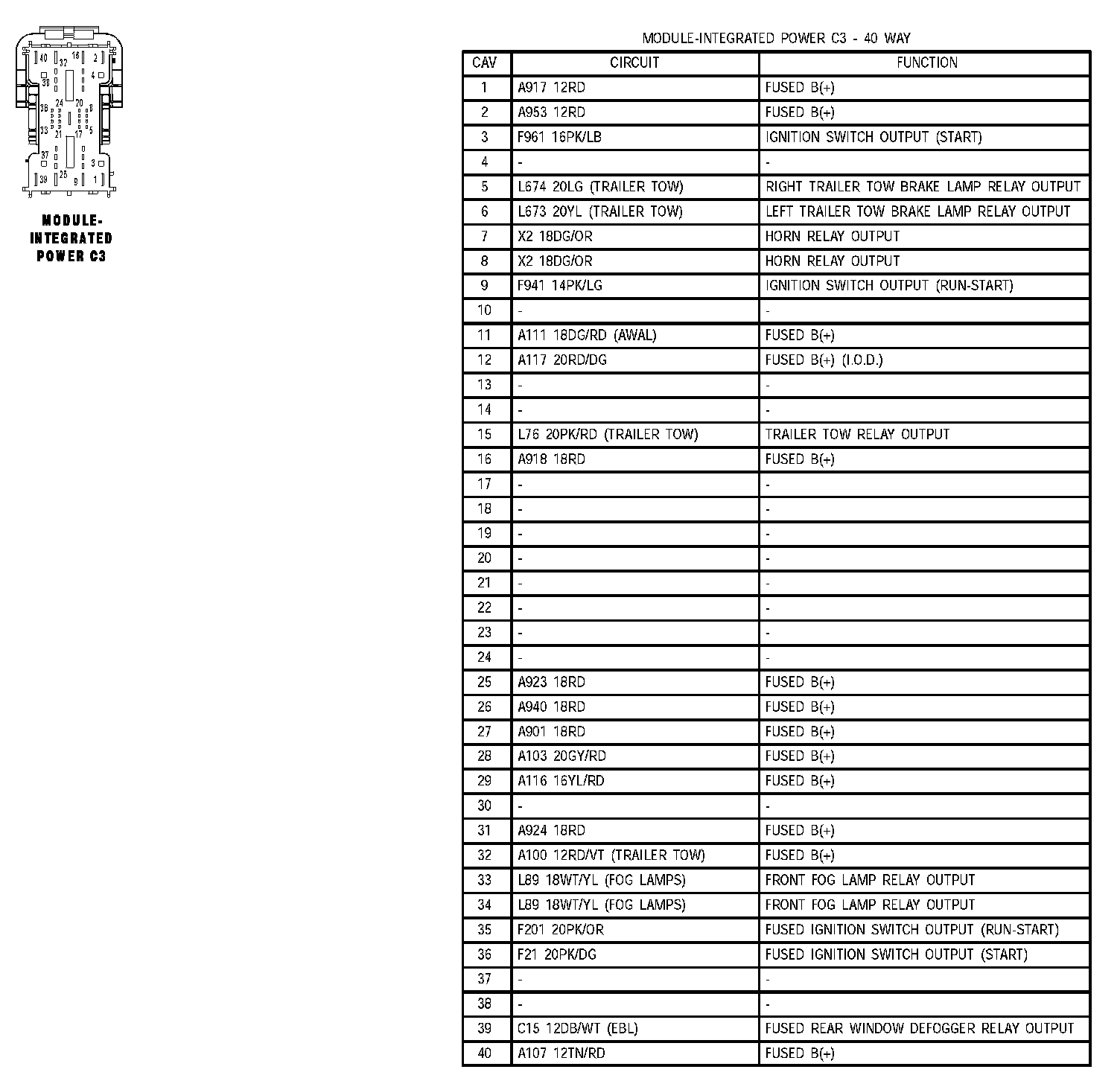

Module Integrated Power C3:

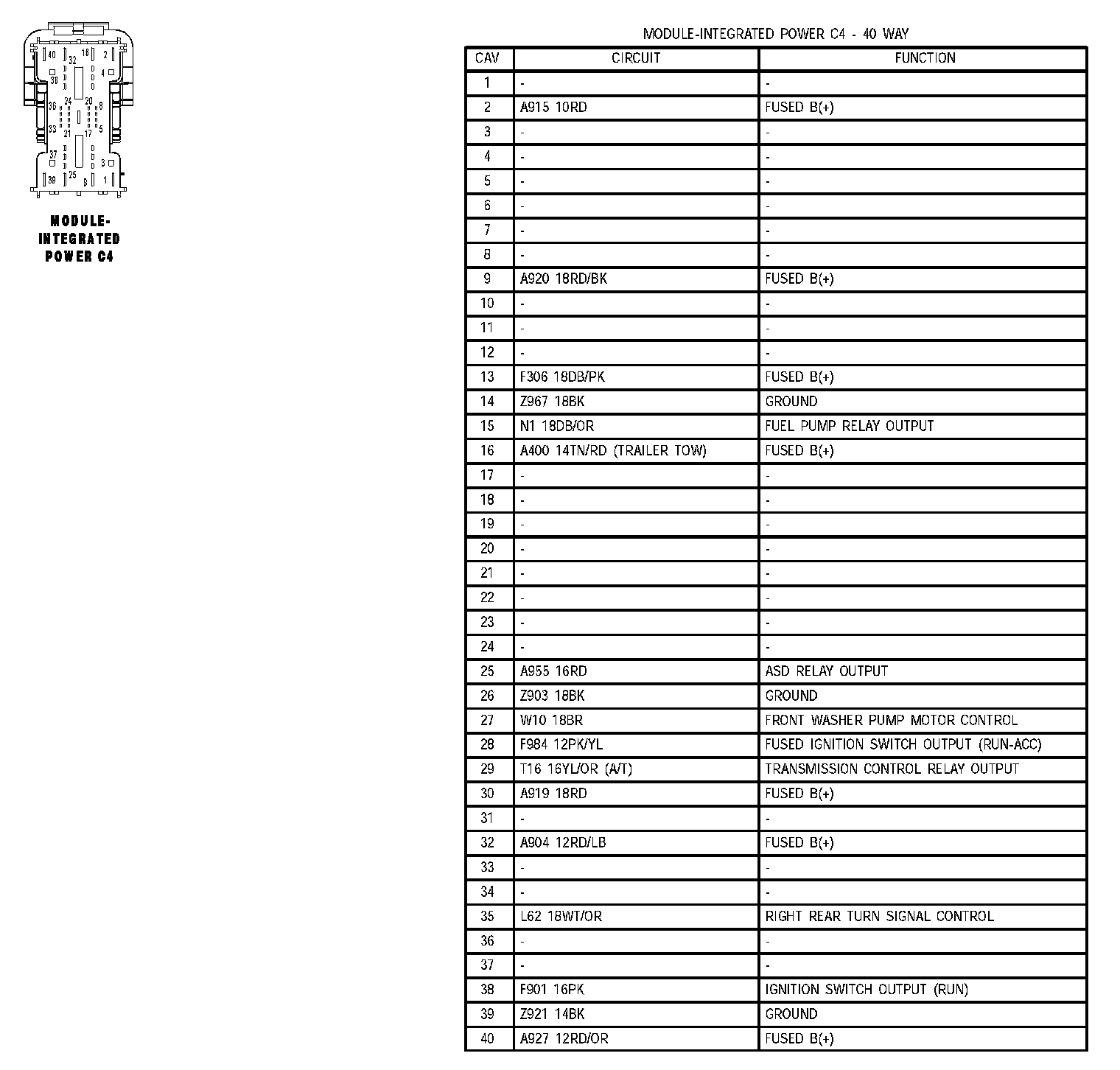

Module Integrated Power C4:

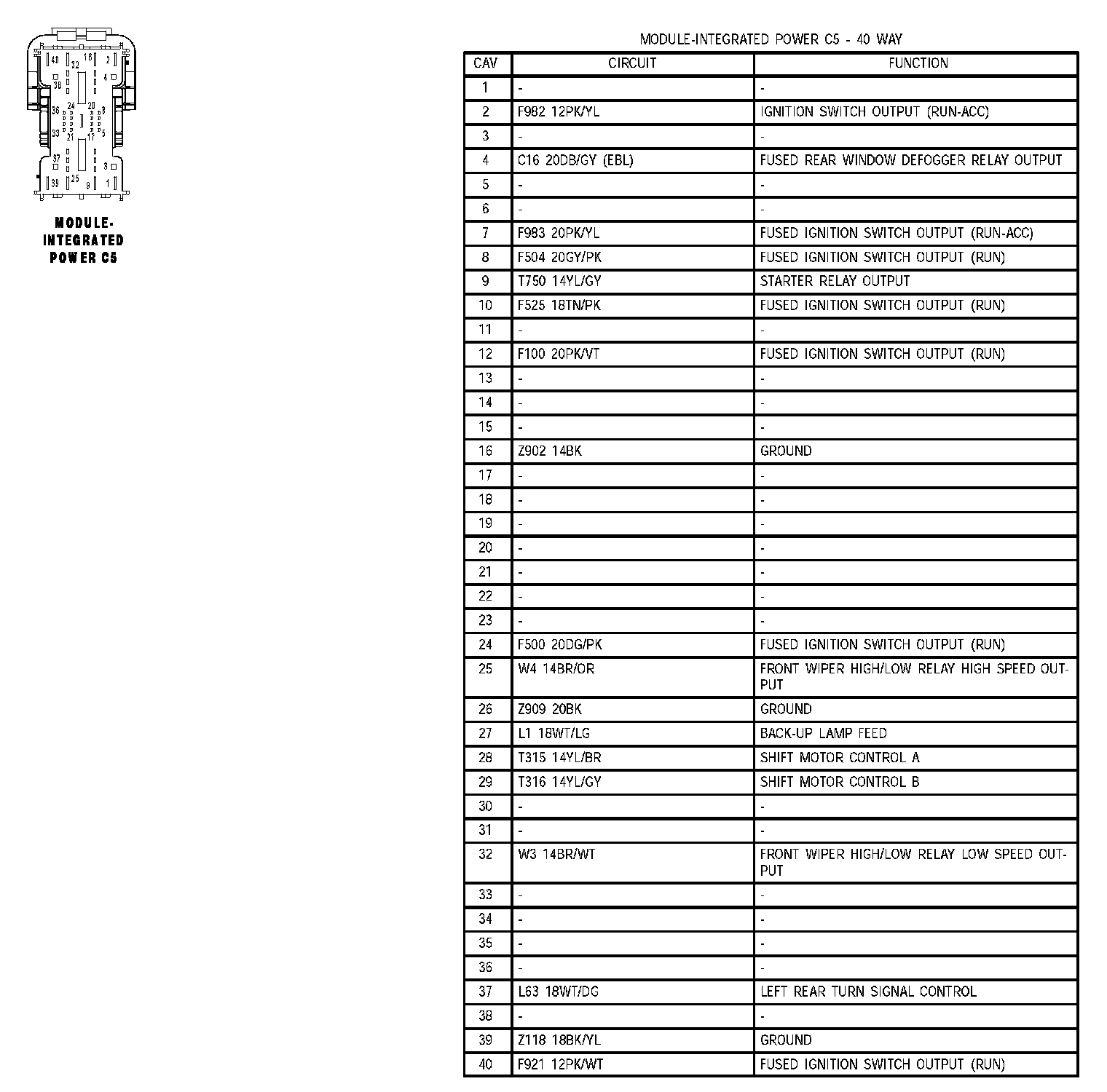

Module Integrated Power C5:

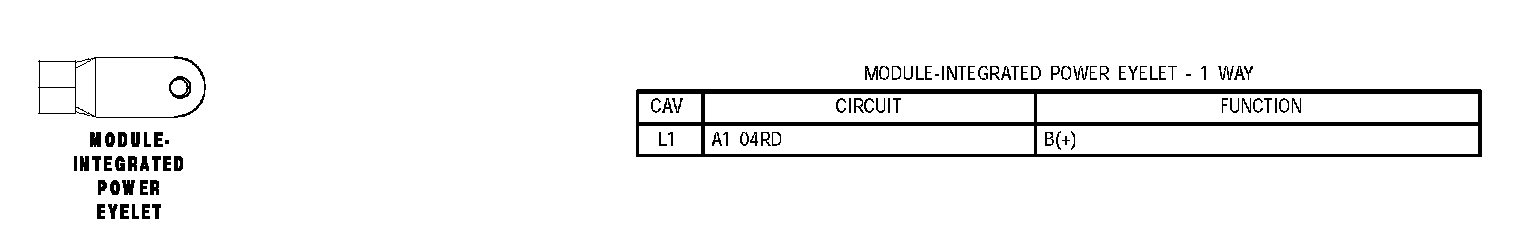

Module Integrated Power Eyelet:
