Connecting Rod, Engine

CONNECTING RODS
Piston Pin Bore Diameter 23.955 - 23.975 mm (0.9431 - 0.9438 inch)

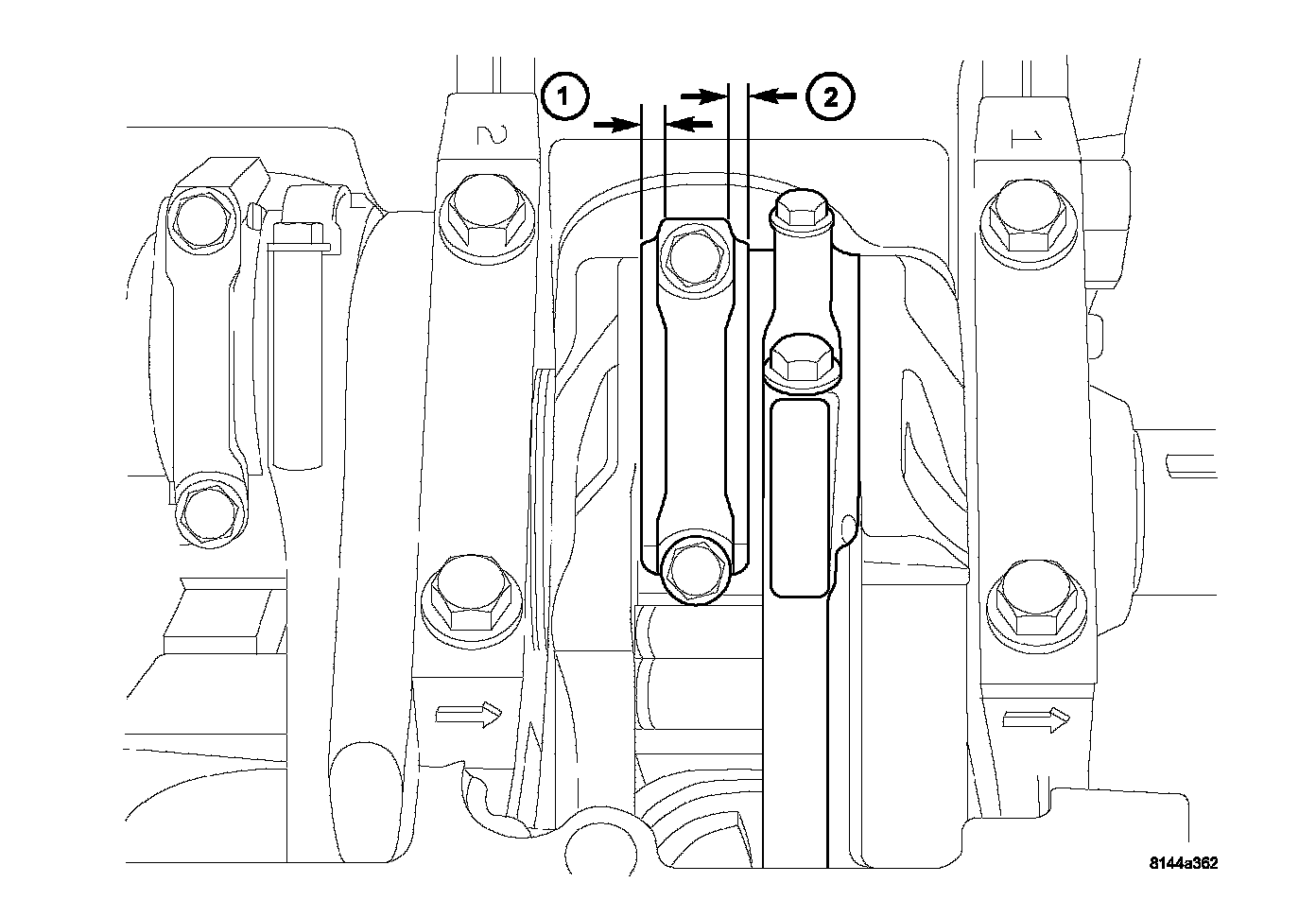

Side Clearance 0.10 - 0.35 mm (0.003 - 0.0137 inch)
Connecting Rod
Journal Diameter 53.992 - 54.008 mm (2.125 - 2.126 inch)
Out of Round (MAX) 0.005 mm (0.0002 inch)
Taper (MAX) 0.003 mm (0.0001 inch)





Connecting Rod Bolts

CAUTION: Connecting Rod Bolts are Torque to Yield Bolts and Must Not Be Reused. Always replace the Rod Bolts whenever they are loosened or removed.

Lubricate rod bolts and bearing surfaces with engine oil. Install connecting rod cap and bearing.
Tighten bolts to 21 Nm (15 ft. lbs.) plus a 90° turn.
