Rear Blower Module C1 (3 Zone ATC) (Body) 6 Way
Rear Blower Module C1 (3 Zone ATC) (Body) 6 Way

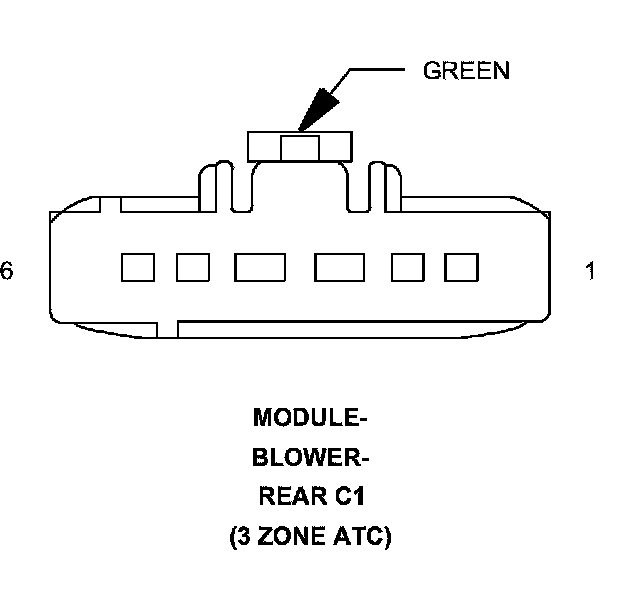

Connector C1 (3 ZONE ATC) - (BODY) 6 WAY

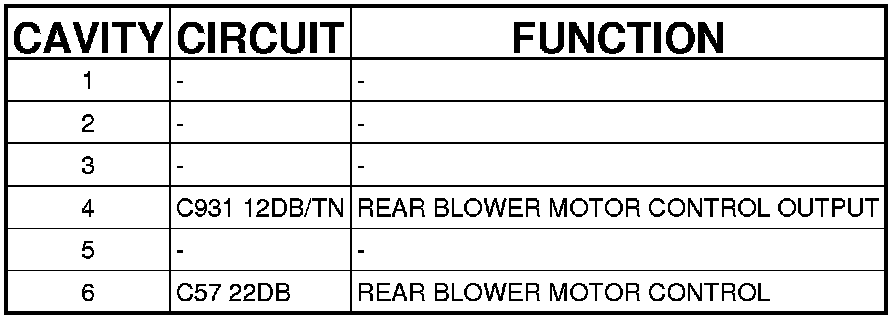

MODULE-BLOWER-REAR (3 ZONE ATC) - (BODY) 6 WAY
