Fuel Pressure: Specifications

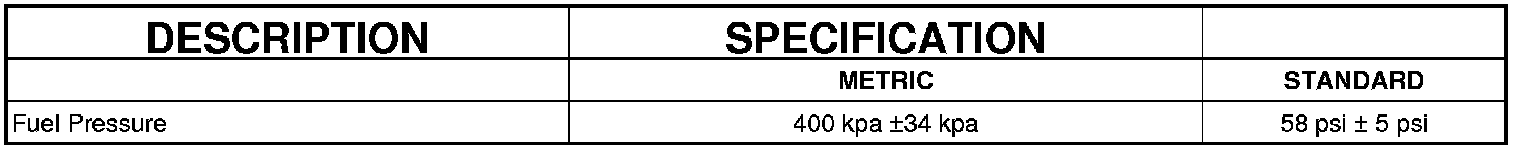

FUEL SYSTEM PRESSURE

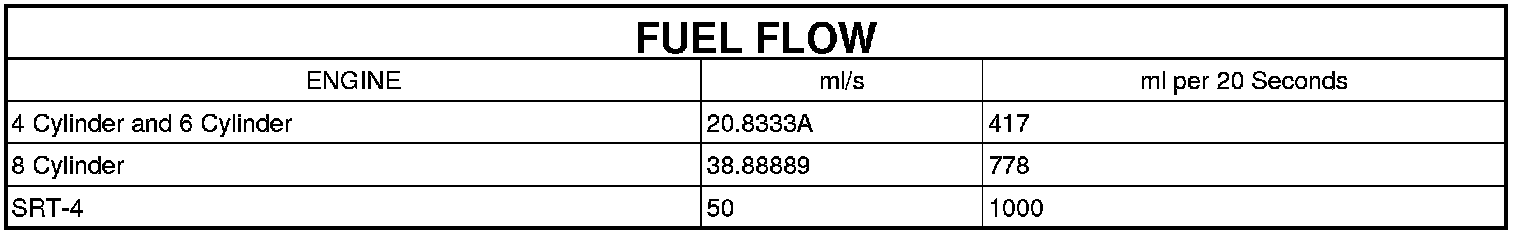

Fuel Flow





Leakdown

Less than 10 psi in 5 minutes.
