Home >> Dodge >> 1982 >> Aries L4-135 2.2L SOHC >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Diagrams >> Chrysler Alternators >> Part 1 of 2

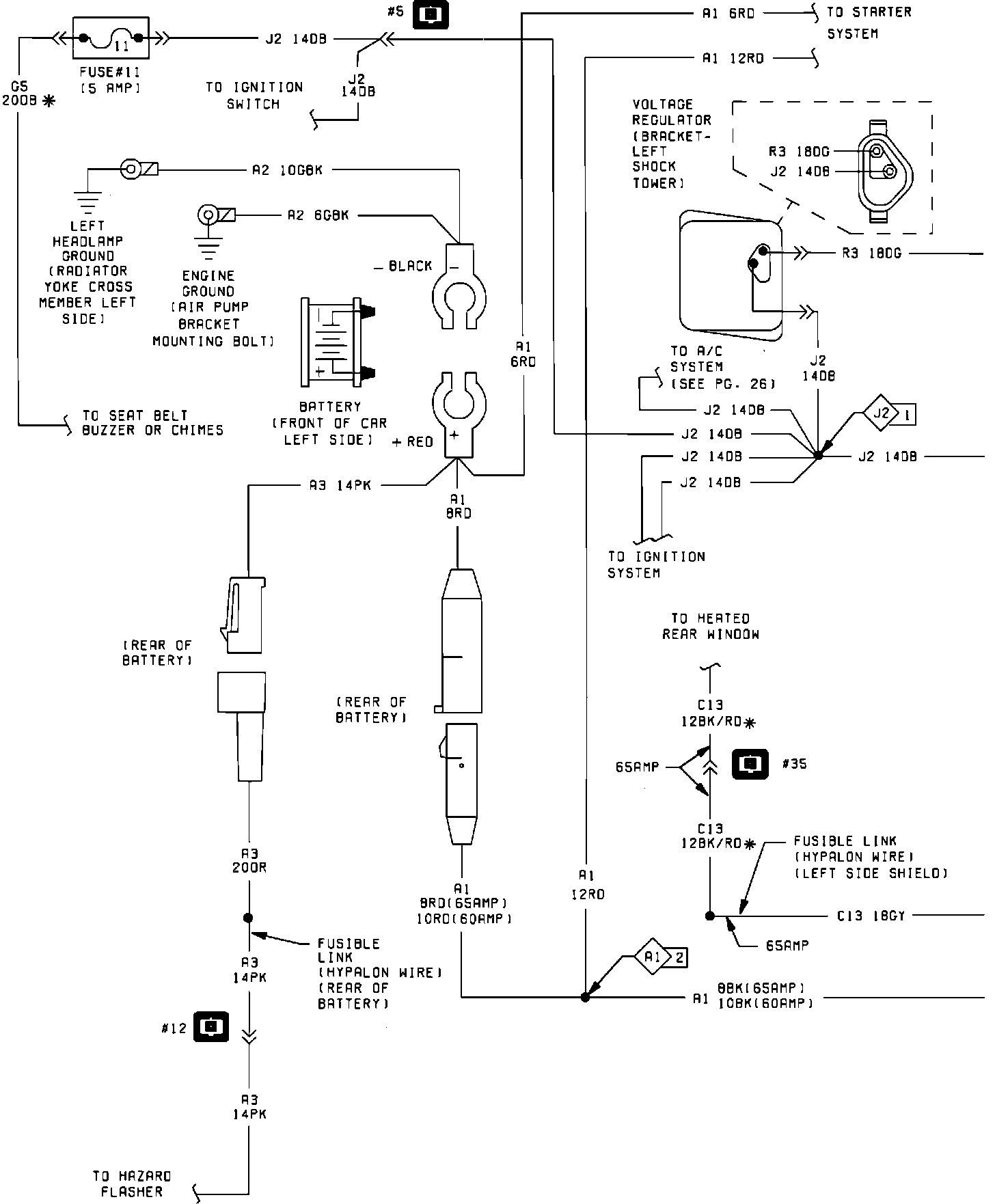

Part 1 of 2

Charging System:
