Home >> Dodge >> 1983 >> 400 L4-135 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trip Computer >> Part 2 of 2

Part 2 of 2

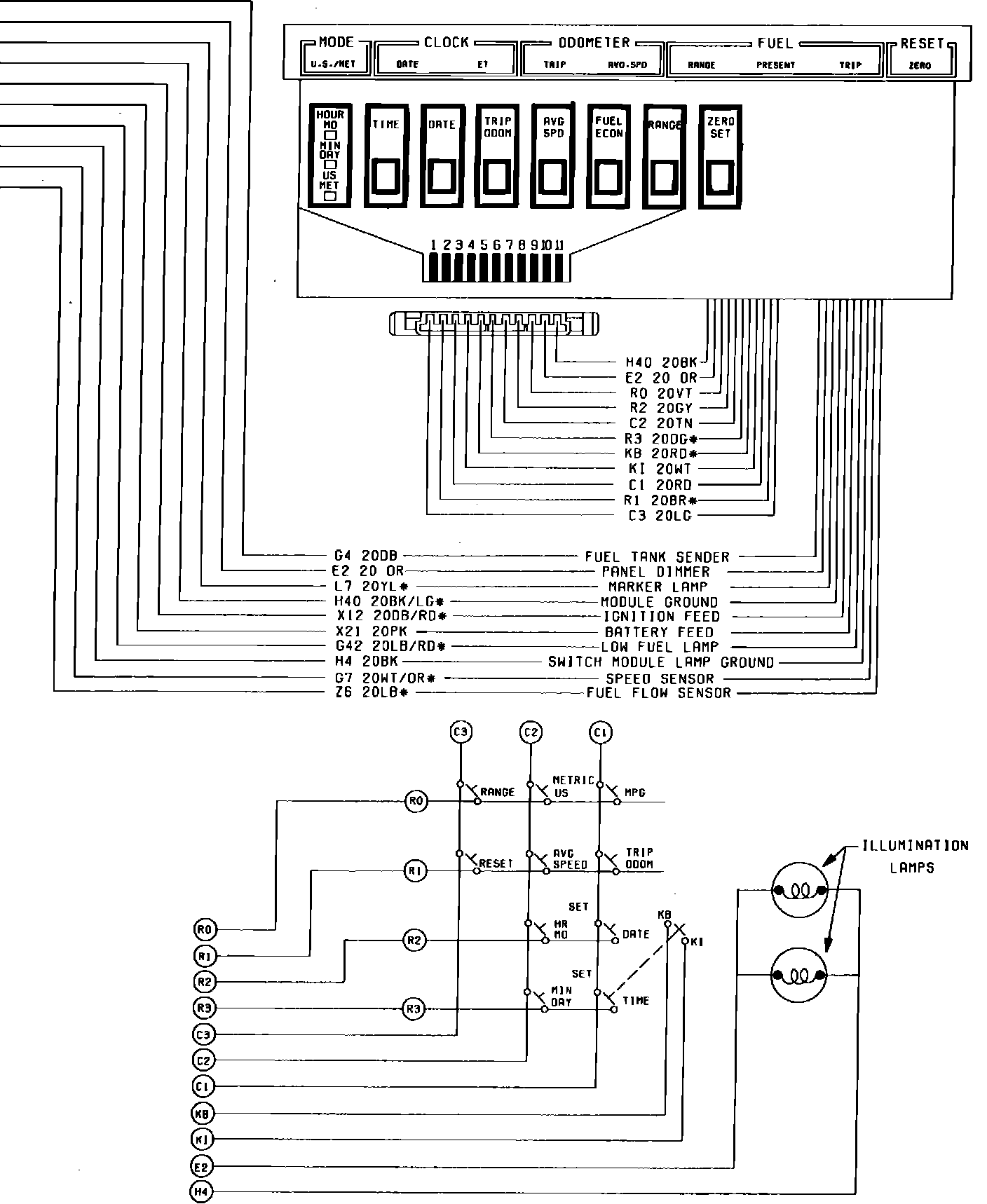

Fig. 124 Travel Computer Switch Module Wiring Circuit (Part 2 of 2). 1983:
