Electrical Diagrams

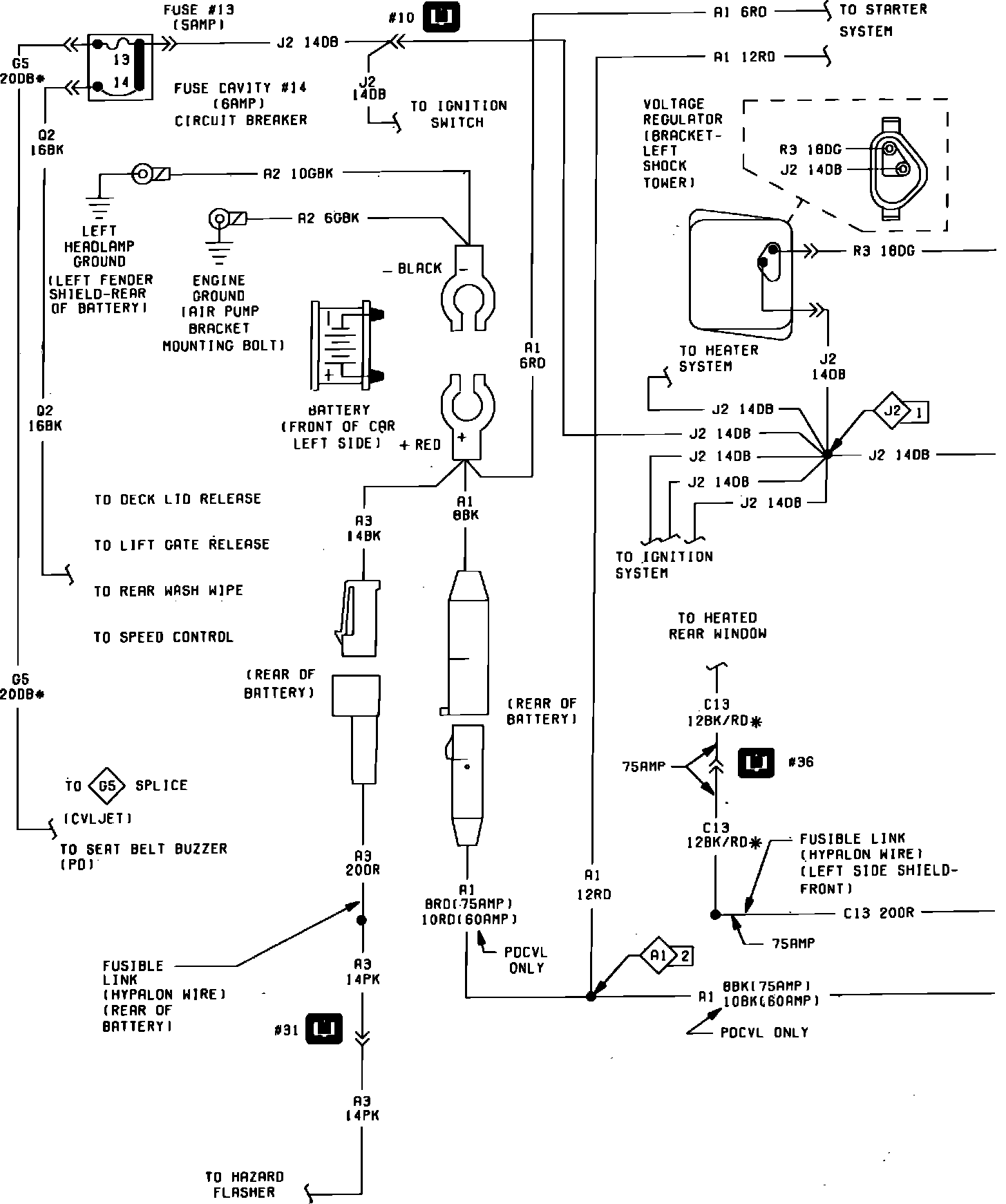

Fig. 26 Charging System Wiring Circuit (Part 1 of 2). 1983 W/2.2 Liter Engine:

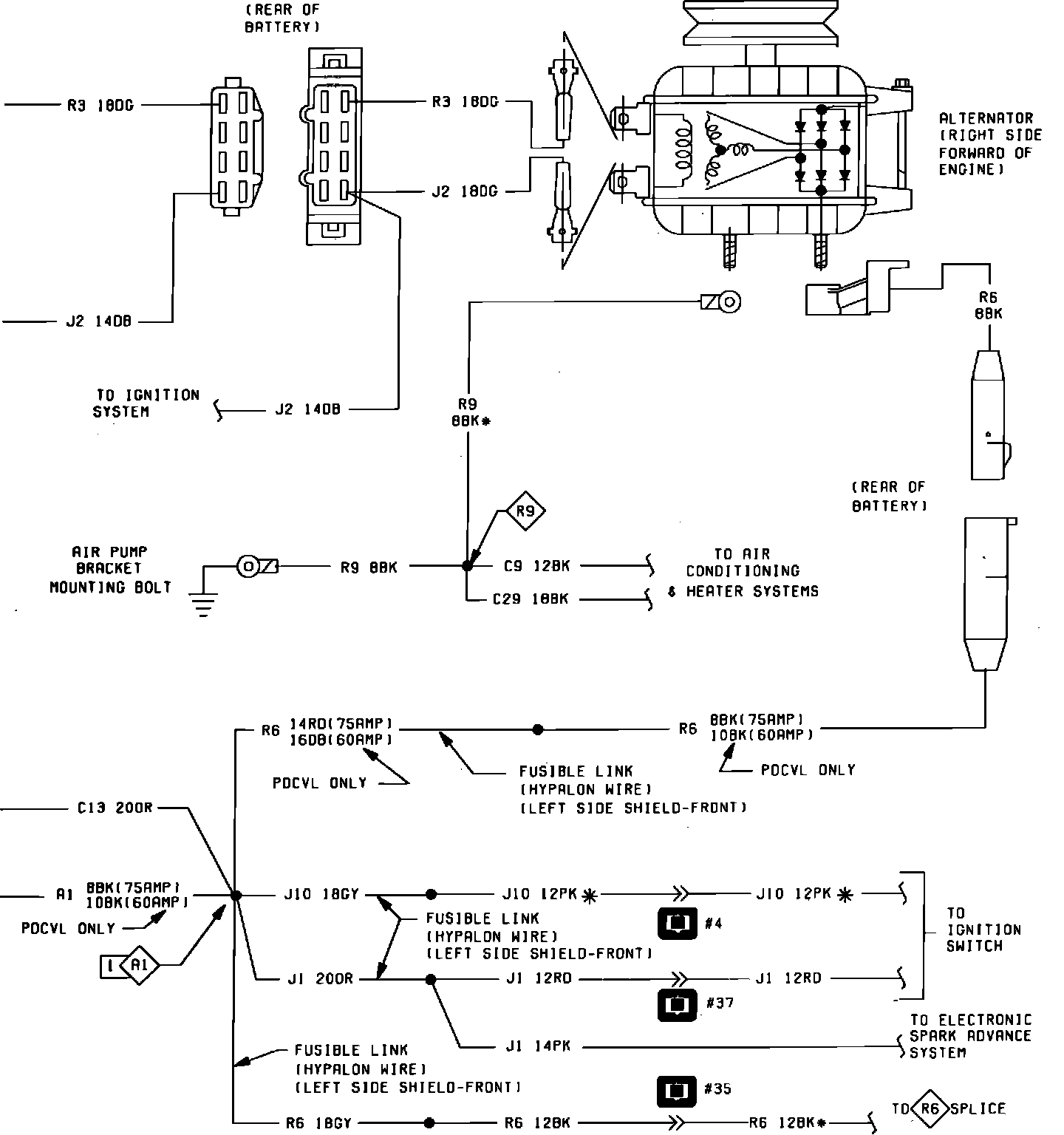

Fig. 26 Charging System Wiring Circuit (Part 2 of 2). 1983 W/2.2 Liter Engine:
