Charger L4-135 2.2L SOHC VIN C 2-bbl
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Engine Compartment Splices
Engine Compartment Splices

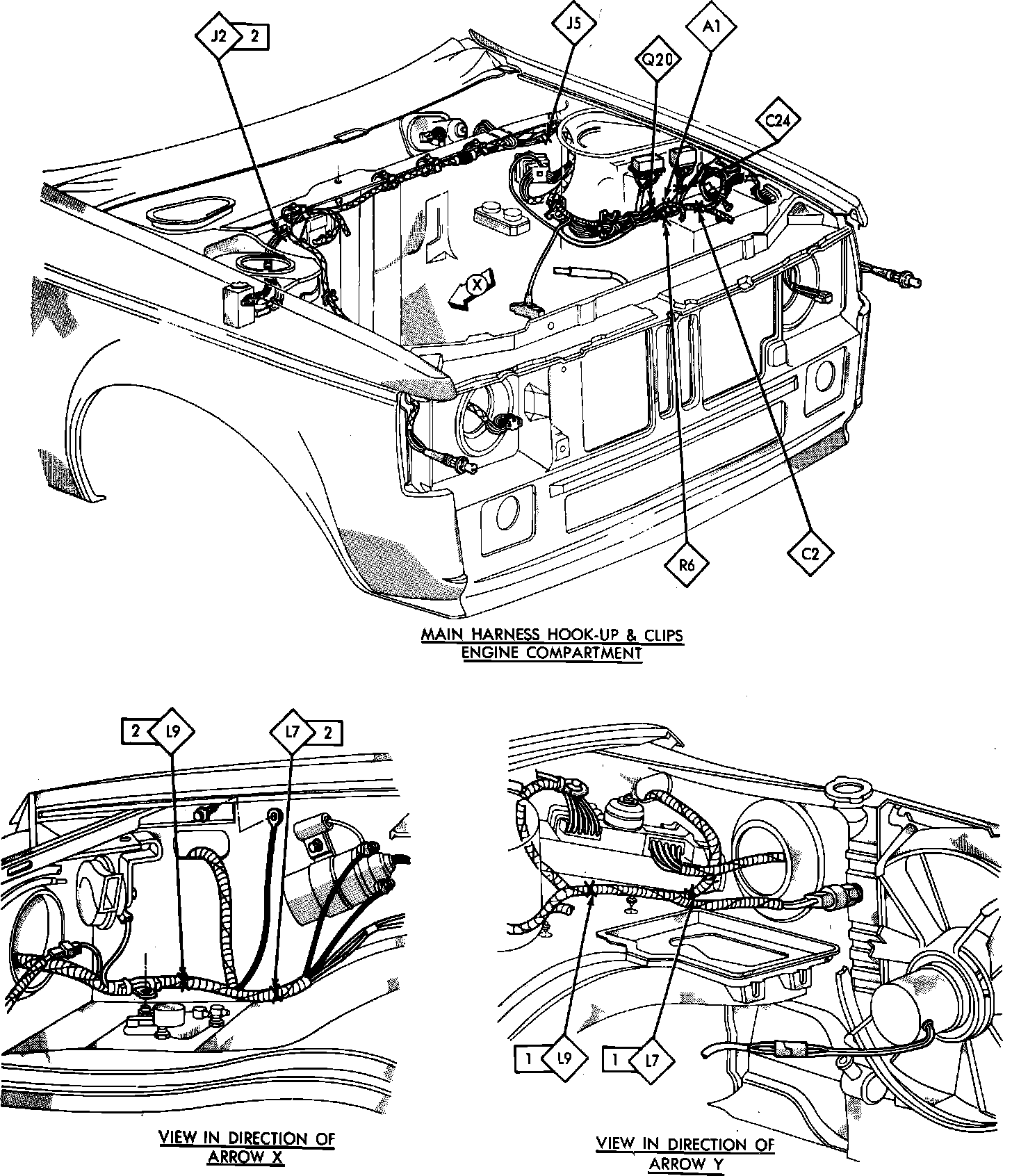

Fig. 64 Splice Location (Engine Compartment & Front End). 1983-84:
