Engine Compartment Splices

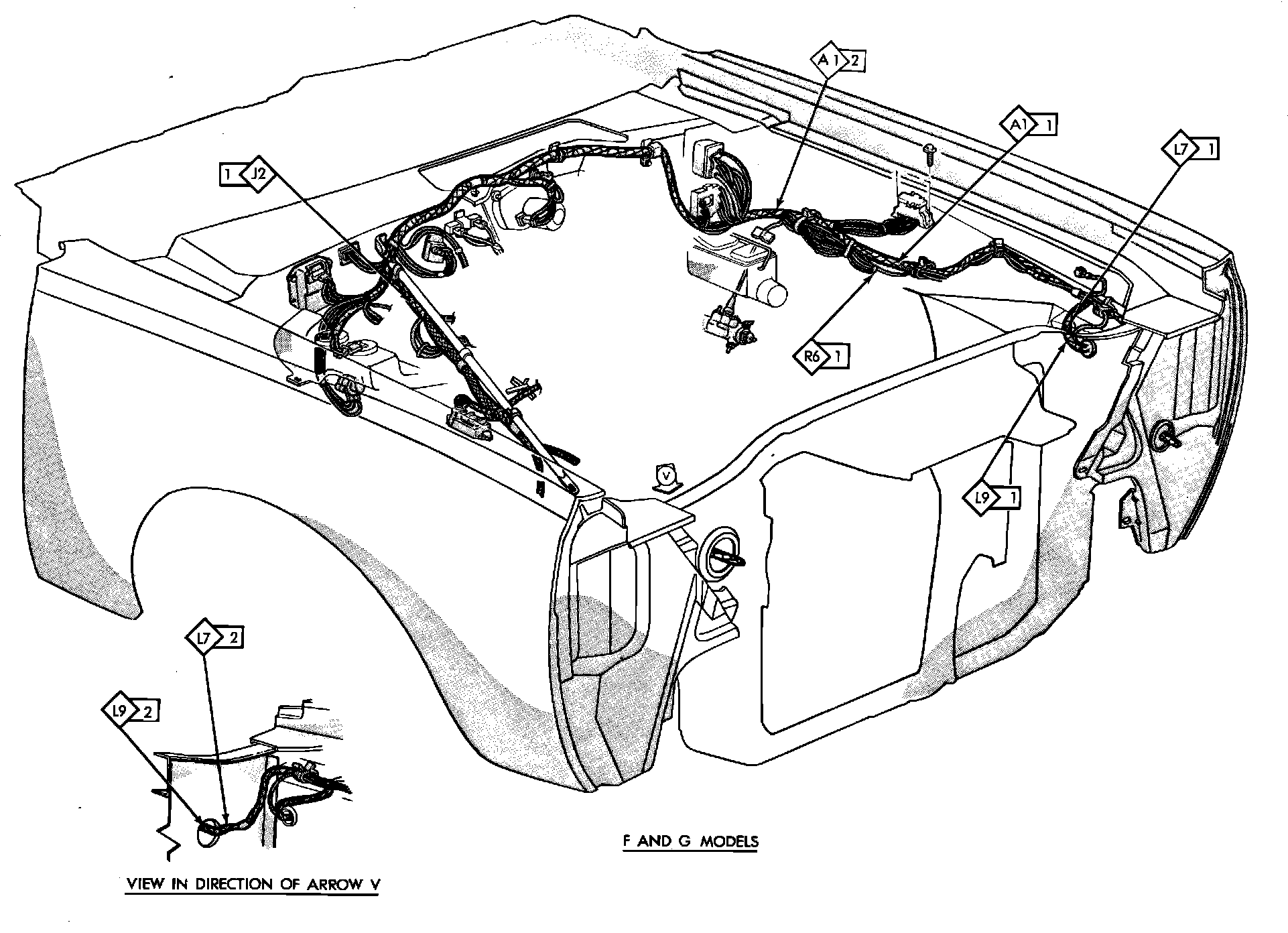

Fig. 66 Engine Compartment Splice Locations:

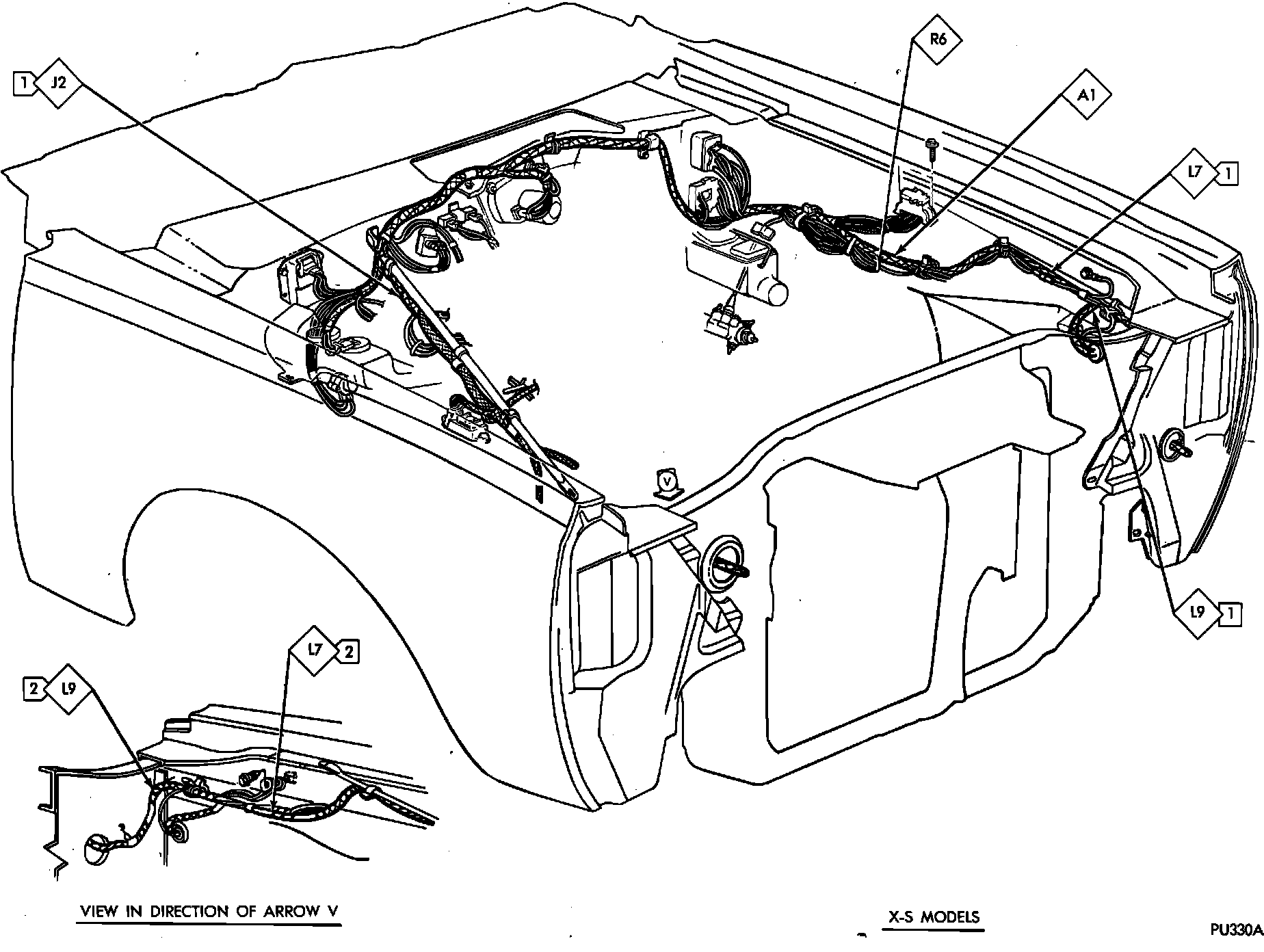

Fig. 45 Splice Locations (Engine Compartment). Cordoba & Mirada:
