Recall - Instrument Panel Cluster Rework
83chrysler1345
No... November, 1983
TO: All Chrysler Corporation Dealers
SUBJECT: Instrument Panel Cluster Rework
MODELS: 1984 Plymouth Horizon and Turismo; Dodge Omni, Charger and Rampage
IMMEDIATE ACTION REQUIRED
Instrument panel clusters installed in the subject model vehicles (both standard and rallye clusters) have the high beam lamp cover or "chimney" glued to the base of the cluster housing as an assembly aid. Heat generated in the chimney area (from the high beam lamp, cluster lamps, defroster, etc.) may cause the glue to soften and melt, possibly allowing it to drop into the speedometer head mechanism and fail the head and/or the speedometer cable.
Enclosed with this letter is a listing which specifically identifies, by vehicle identification number, all involved vehicles which were invoiced to you.

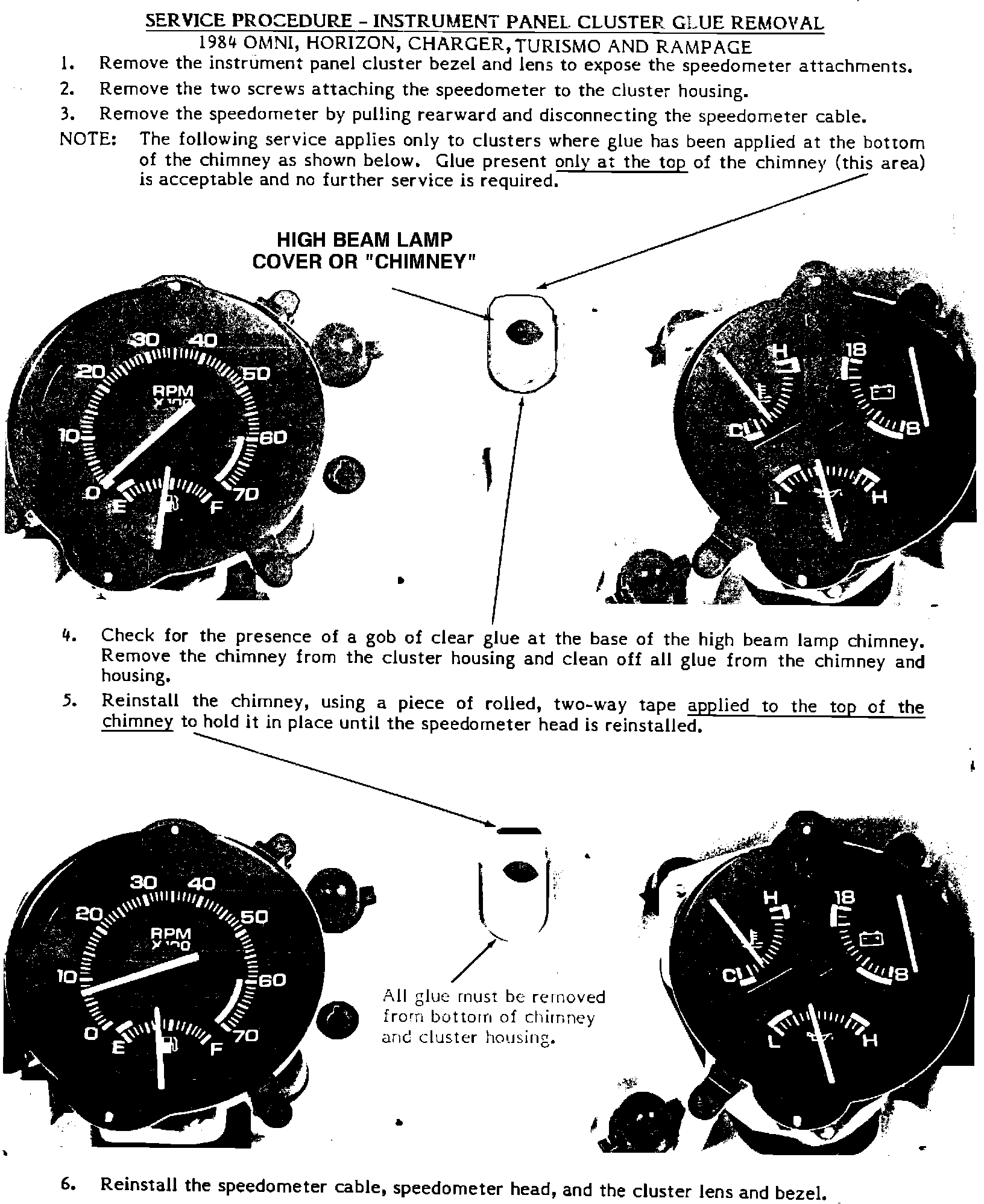

To eliminate the potential for speedometer head and/or cable failure, each vehicle must be corrected by removing the glue from the cluster housing. Refer to the Service Procedure on the back of this letter for complete service instructions.
Many of the vehicles involved in this recall are likely still in dealer stock. It is imperative that the recall service be performed immediately, prior to their retail delivery. If you have delivered a listed vehicle, please contact and advise your customer to return it as soon as possible for this service.
REIMBURSEMENT
Complete a separate WRO for each vehicle serviced and identify the claim as "Recall No. 345 - Instrument Panel Cluster Rework." Use the following Labor Operation Number and time allowance:
Labor Operation No. Time Allowance
Remove Glue From Instrument 08345182 0.3 Hour
Panel Cluster
If you have any questions, or require assistance in completing this action, please contact your Zone Service Office.
October 6, 1983
TO: INVOLVED DODGE DEALERS
SUBJECT: 1984 RAMCHARGER & "W" MODELS
A small number of 1984 Dodge Ramcharger and "W" models were shipped with an incorrect size lug wrench. The lug wrench supplied with the vehicle is 13/16" size instead of 3/4".
Our records indicate you have received one or more of the involved trucks. We are shipping your dealership a 3/4" lug wrench to be provided for each affected vehicle.
If you have delivered an involved vehicle, please contact the customer and provide him with the correct (3/4") lug wrench.
If you have any questions, please contact your Zone Technical Advisor.
