Bulkhead Connector
>>
Engine Compartment Side
Engine Compartment Side

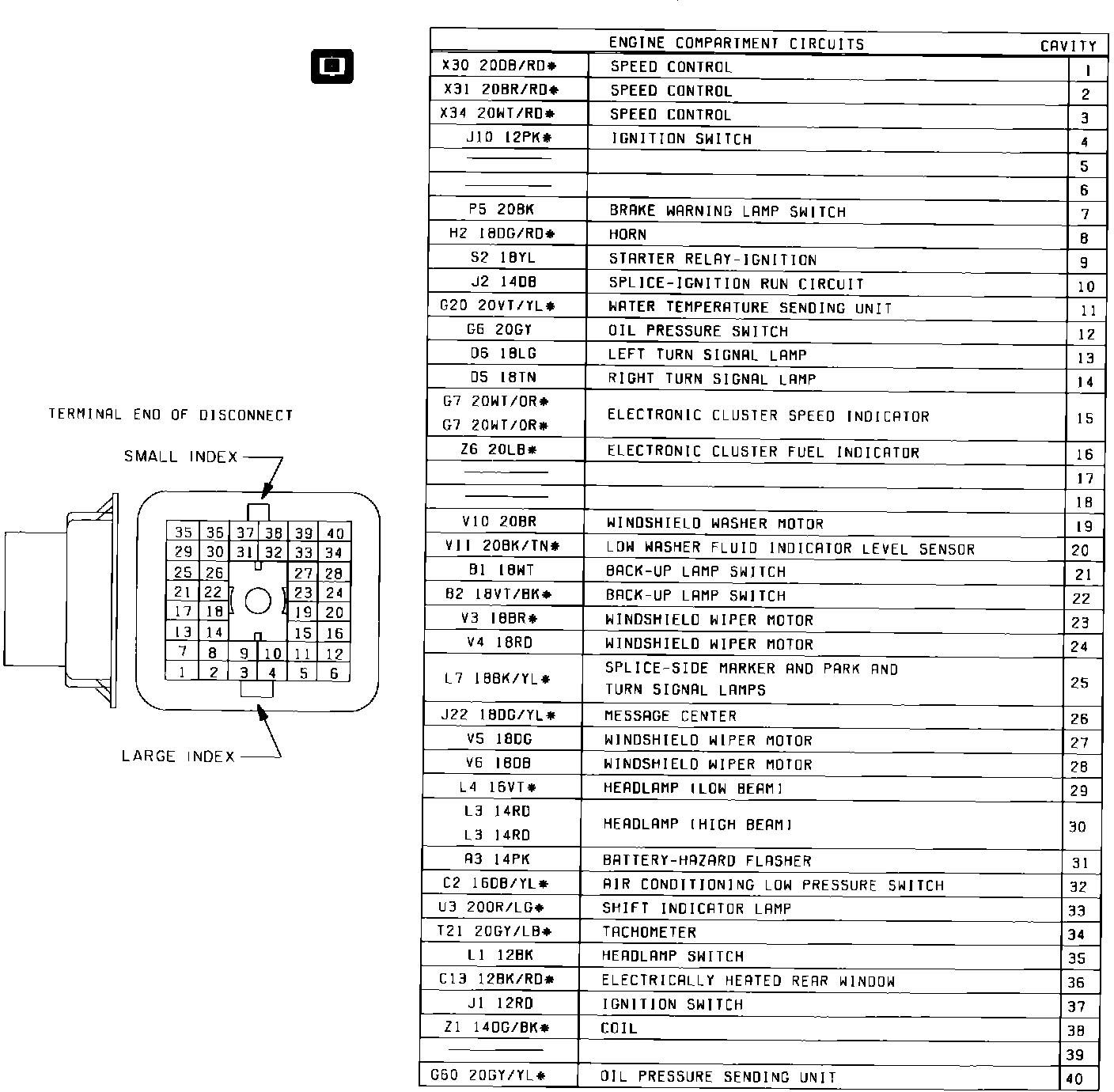

Fig. 5 Bulkhead Connector (40 Way). 1985 Engine Side:
