Home >> Dodge >> 1985 >> Daytona L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Ignition Switch/System >> Part 2 of 5

Part 2 of 5

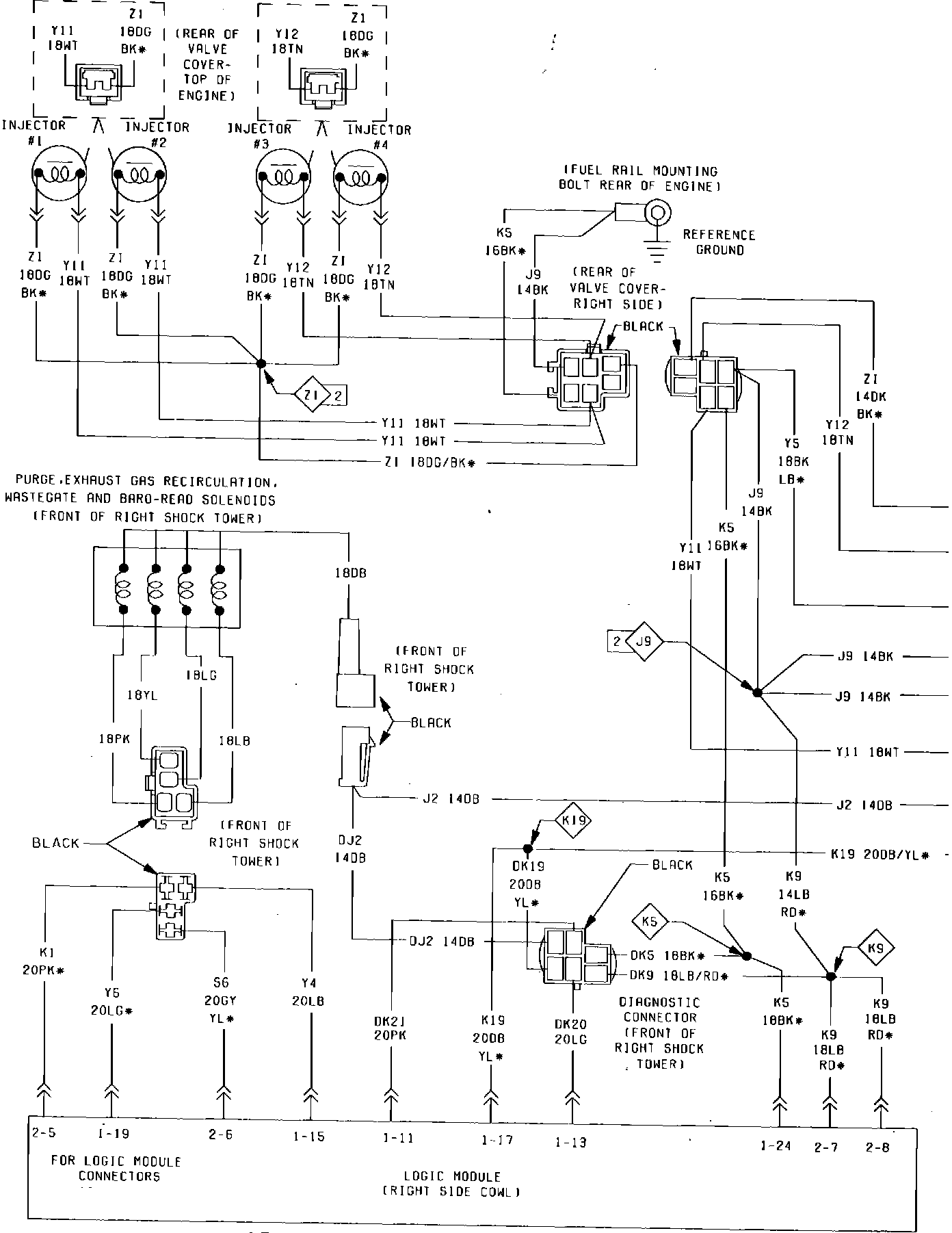

Fig. 33 Ignition System Wiring Circuit (With Turbocharger, Part 2 of 5). 1985:
