Dodge
>>
1986
>>
Conquest L4-2555cc 2.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
With Intercooler
With Intercooler

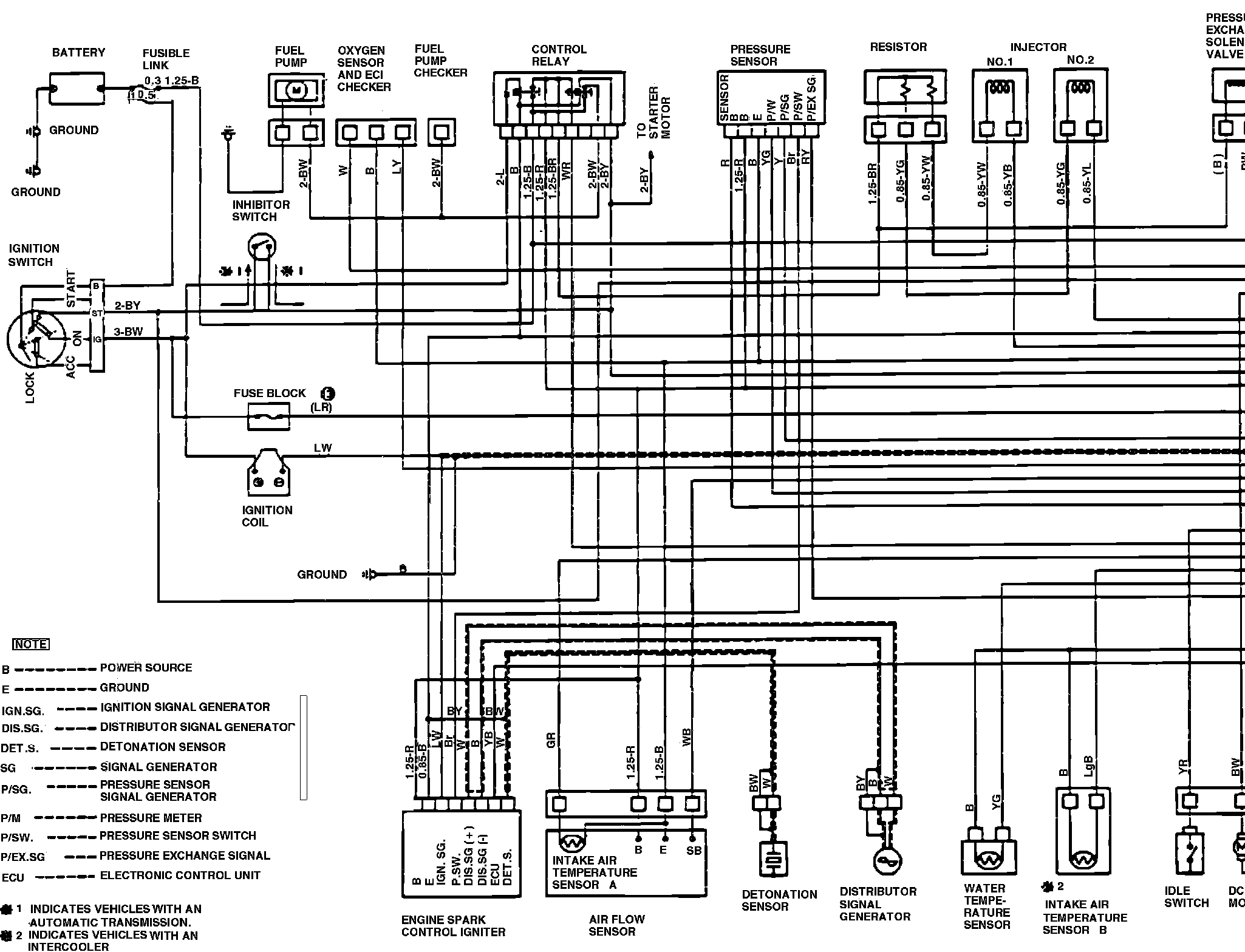

��X31985-1986 Conquest with Intercooler:
