Part 2

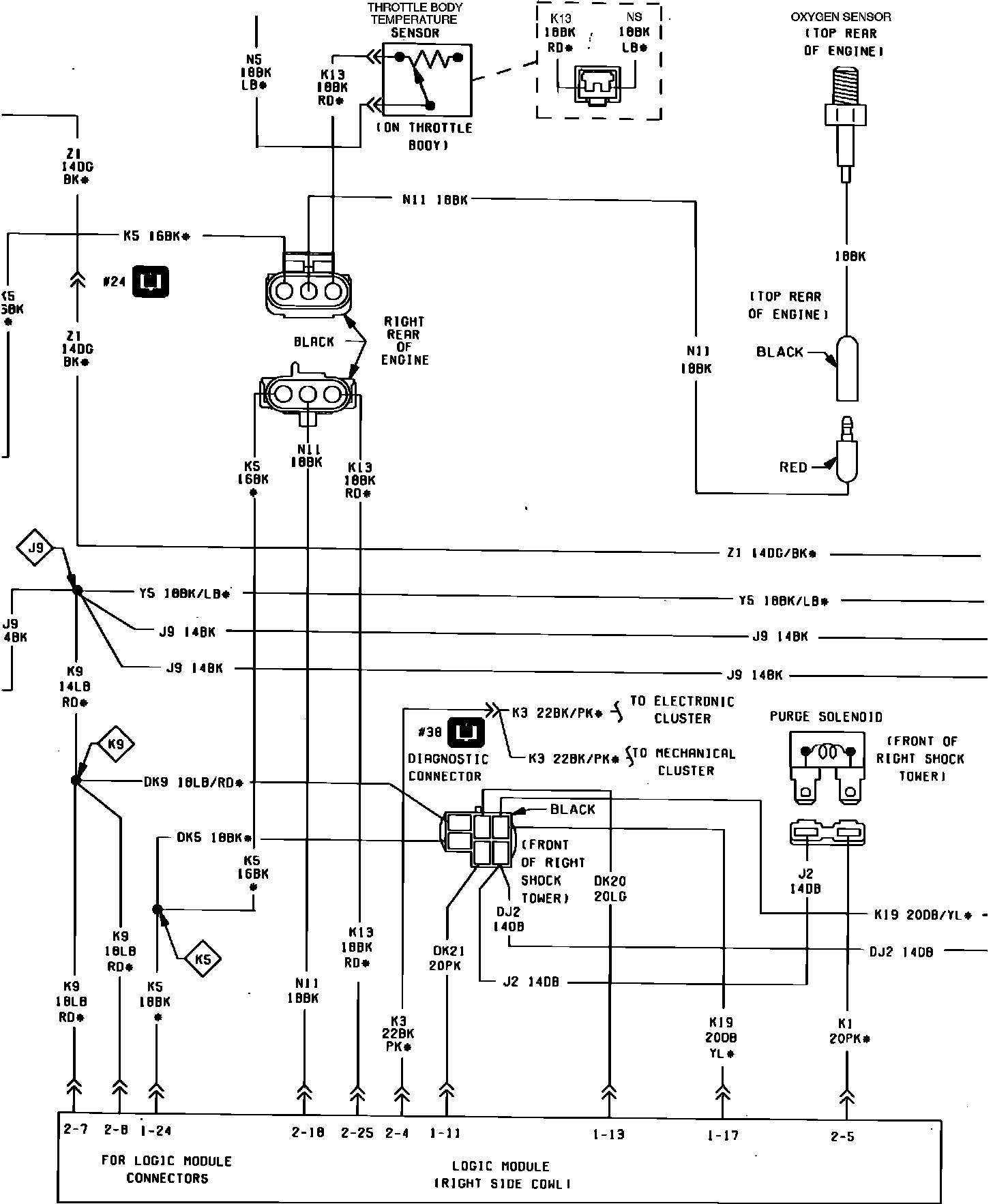

Electronic Fuel Injection Ignition System Wiring Circuit (Part 2 of 4). Less Turbocharged Engine:
