Home >> Dodge >> 1986 >> Lancer L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Part 1

Part 1

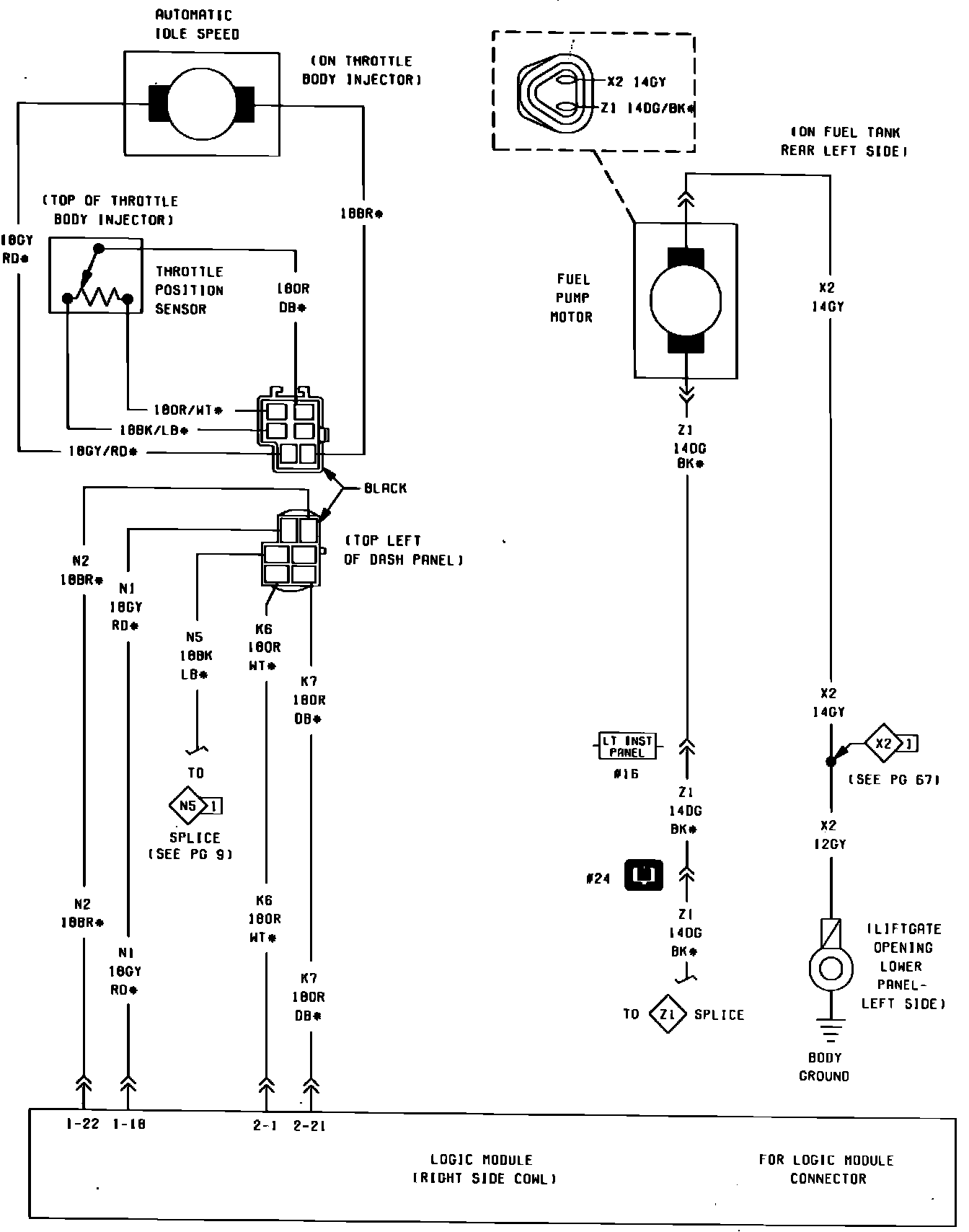

Fig. 29 Ignition System Wiring Circuit (Part 1 of 5). With Turbocharger:
