Auxiliary Shaft Seal
Auxiliary Shaft Seal

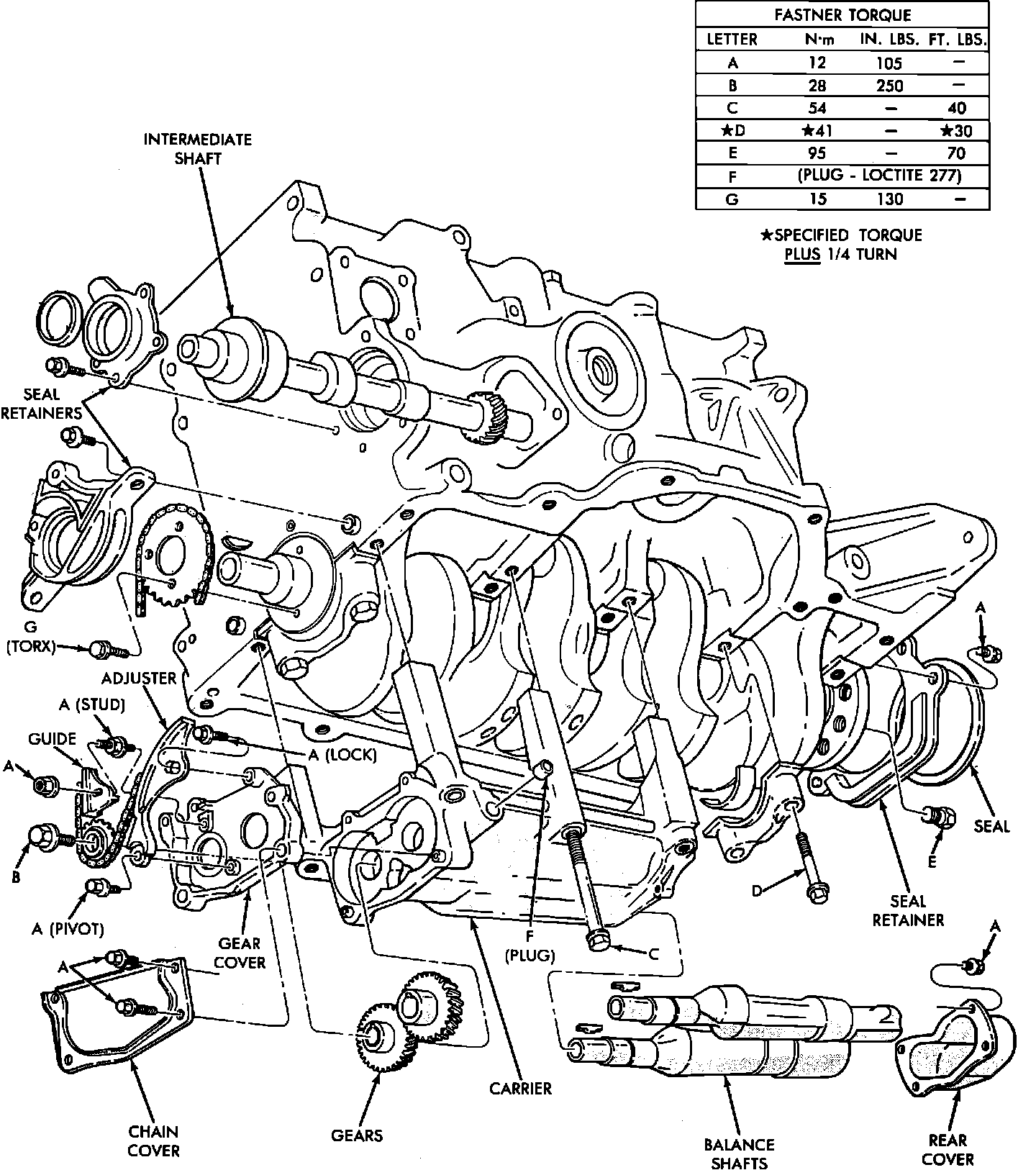

Crankshaft Intermediate And Balance Shaft Assemblies And Oil Seals:
