Home >> Dodge >> 1989 >> Daytona L4-153 2.5L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Valve >> Locations

Expansion Valve: Locations

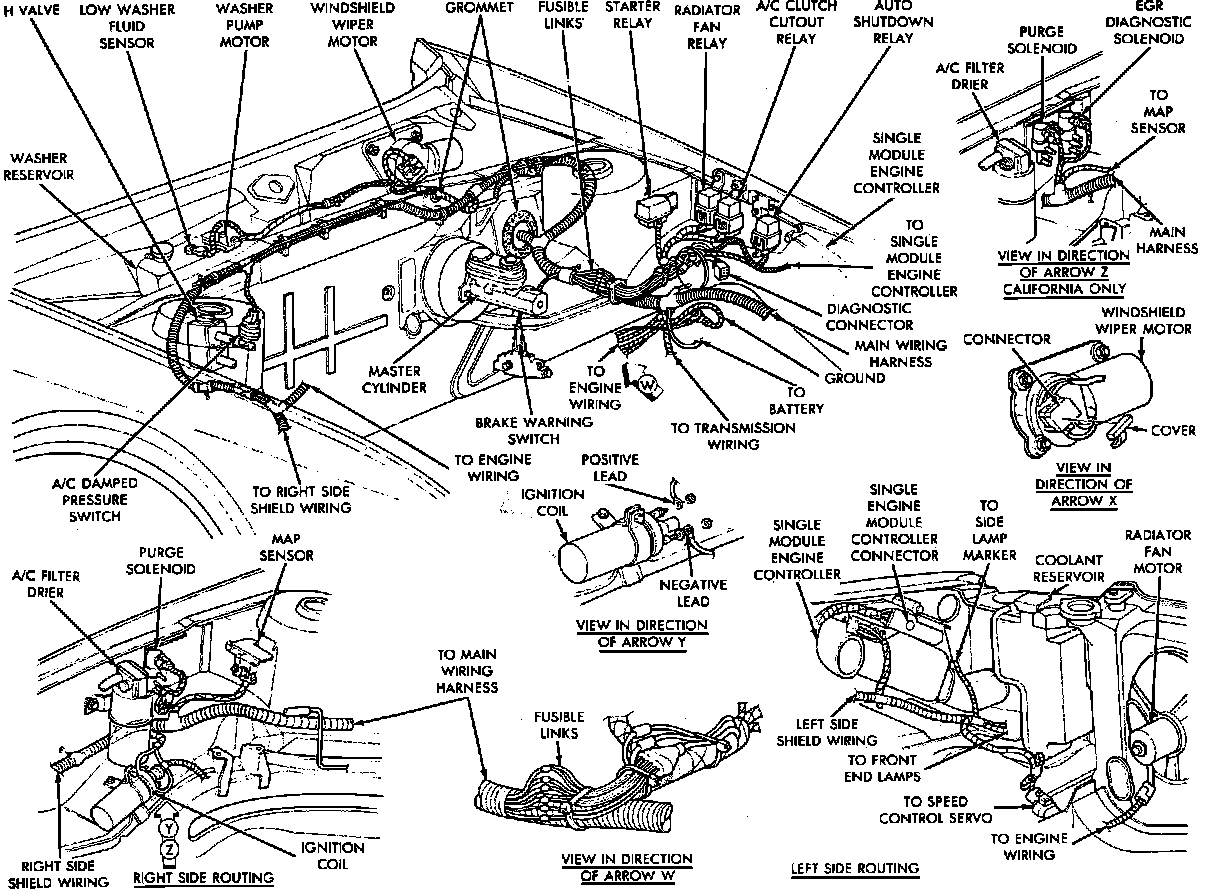

Engine Compartment Components.:




RH Side Of Firewall
