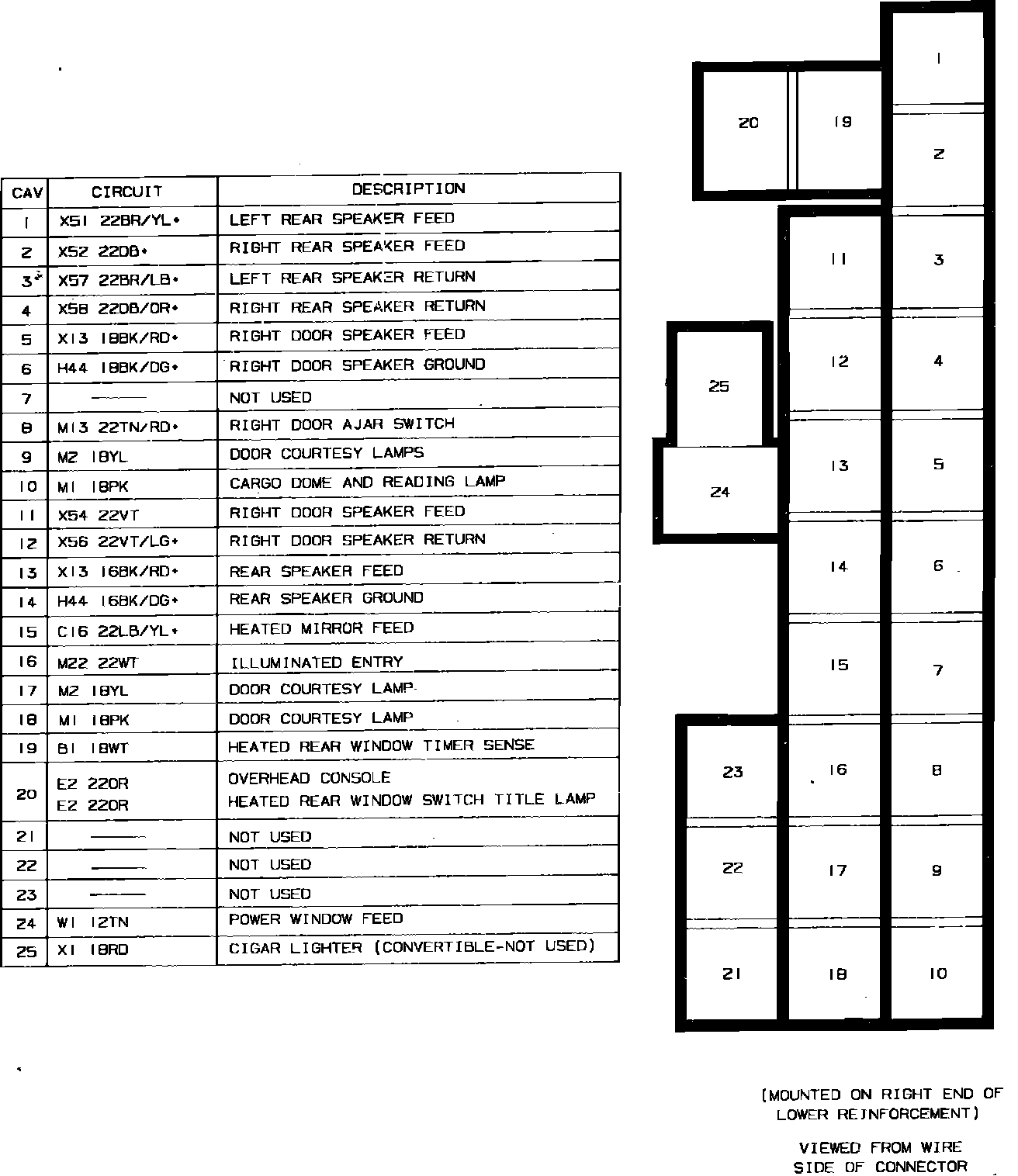

Fig. 6 Body To Instrument Panel Connectors Right Side (Part 2 of 2):

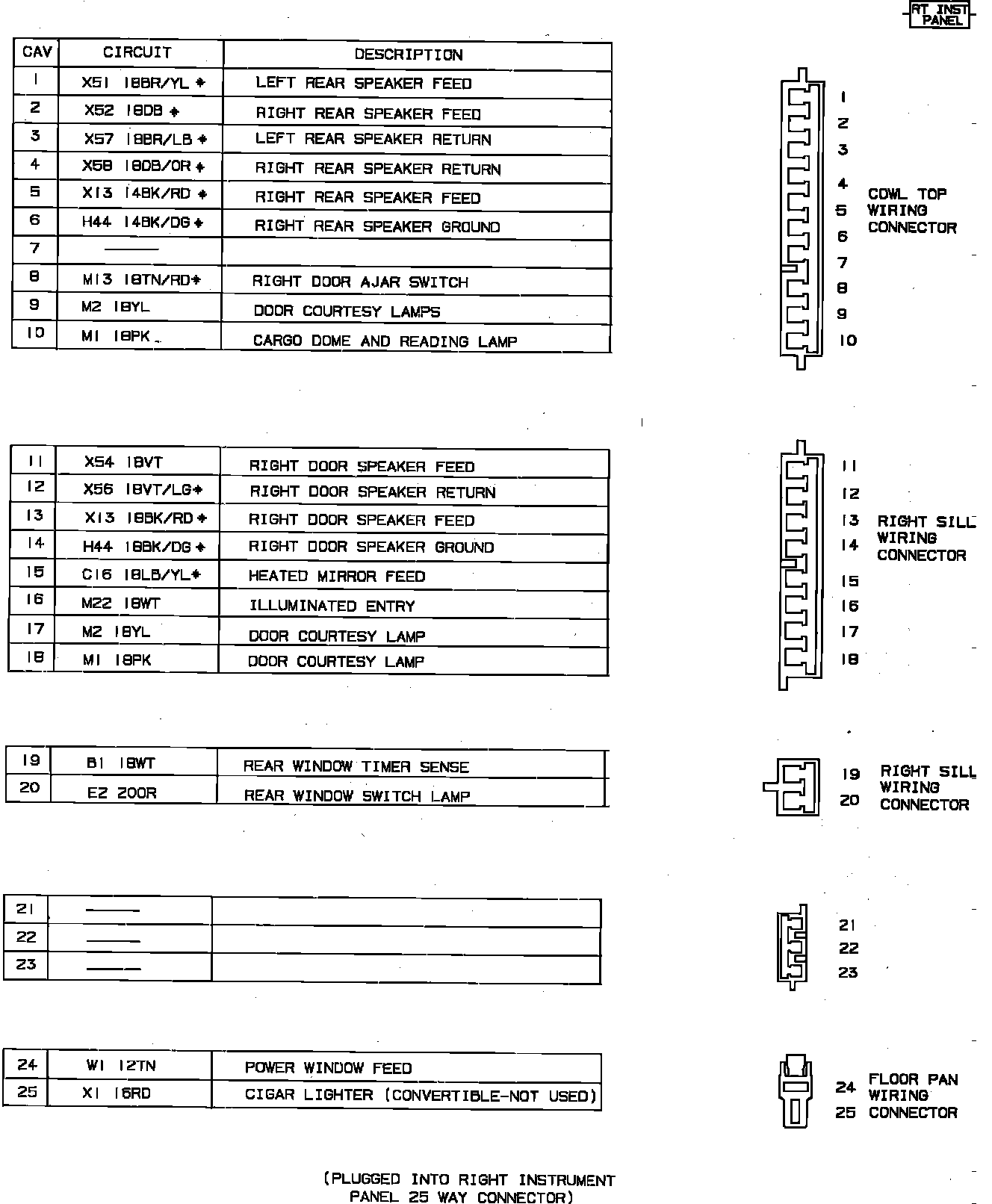

Body To Instrument Panel Connectors, Right Side (Part 2 Of 2):
