Refrigerant Pressure Sensor / Switch: Locations

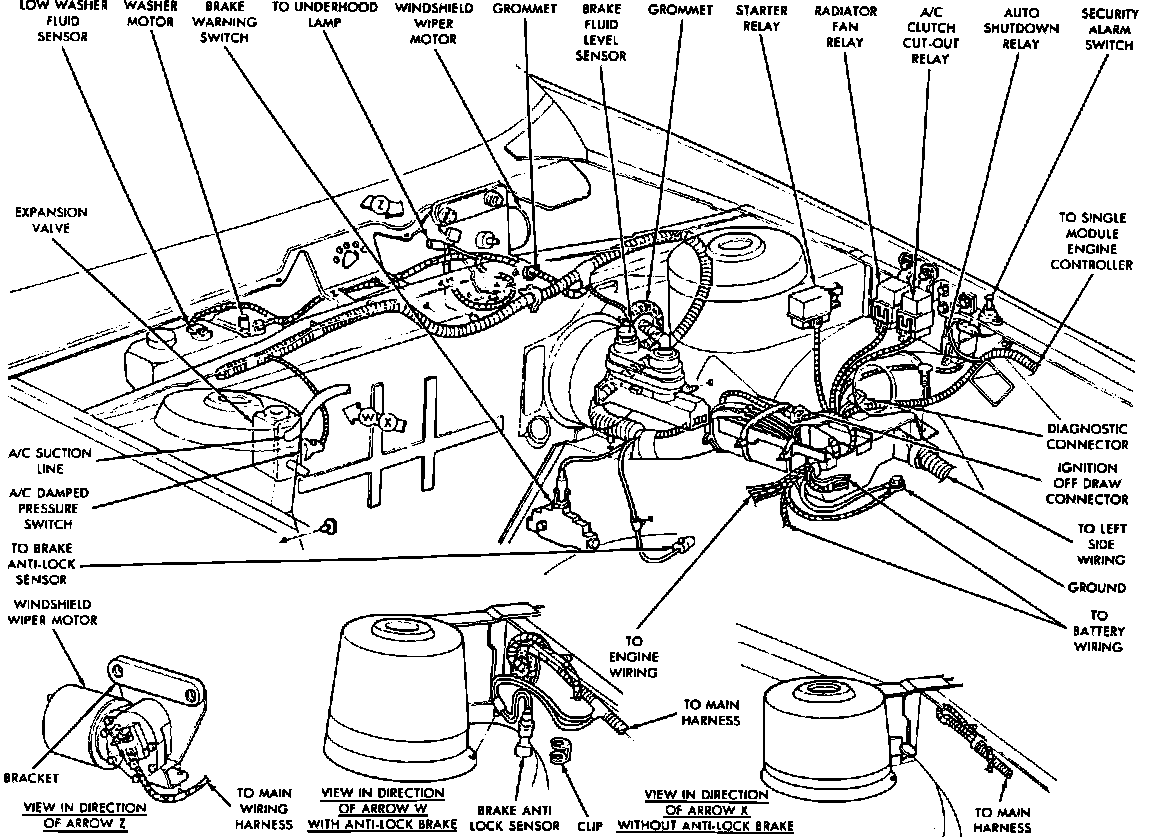

Rear Engine Compartment Components.:
RH Rear Of Engine Compartment
