With Automatic Transmission

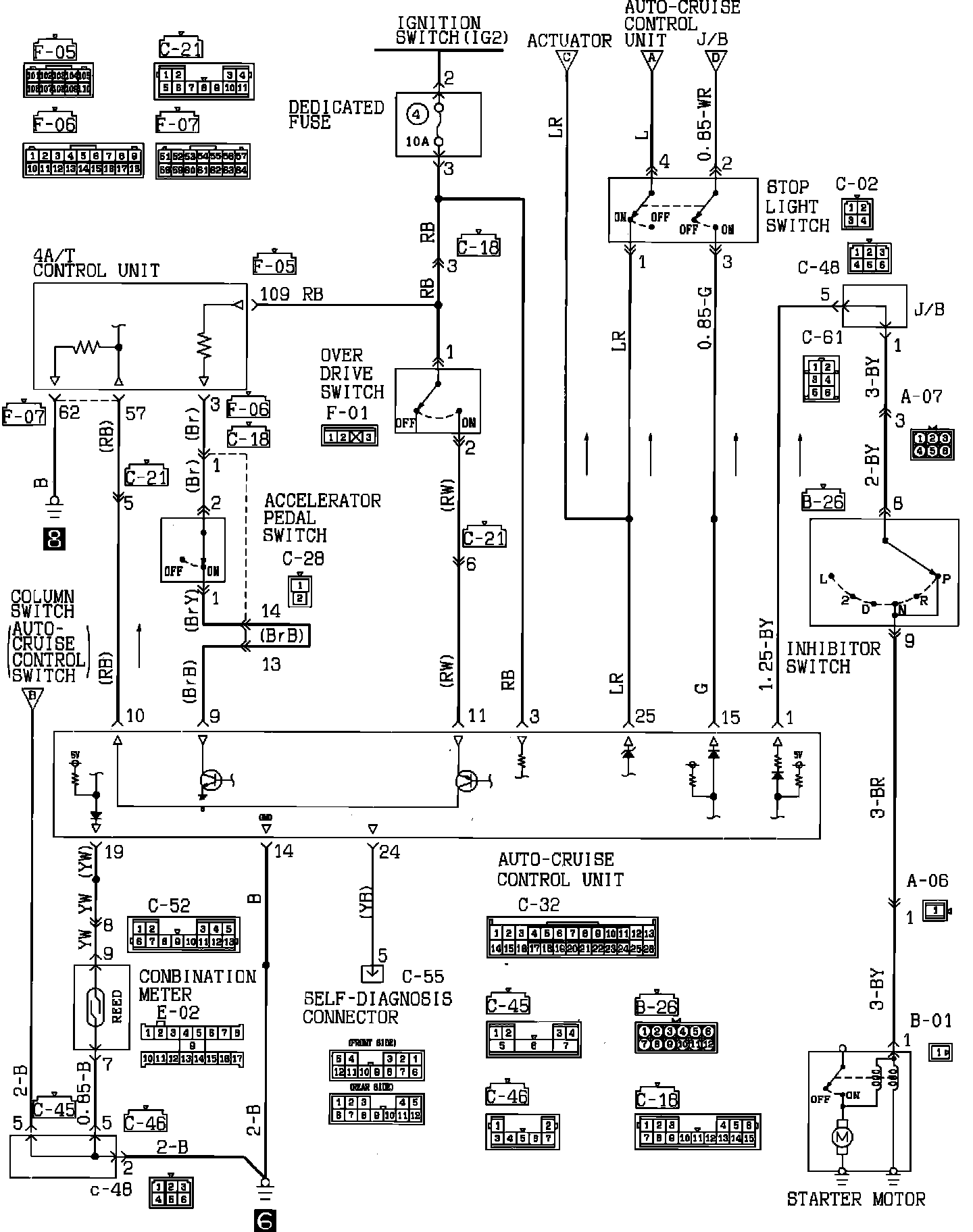

Automatic Transaxle. 4 Speed:

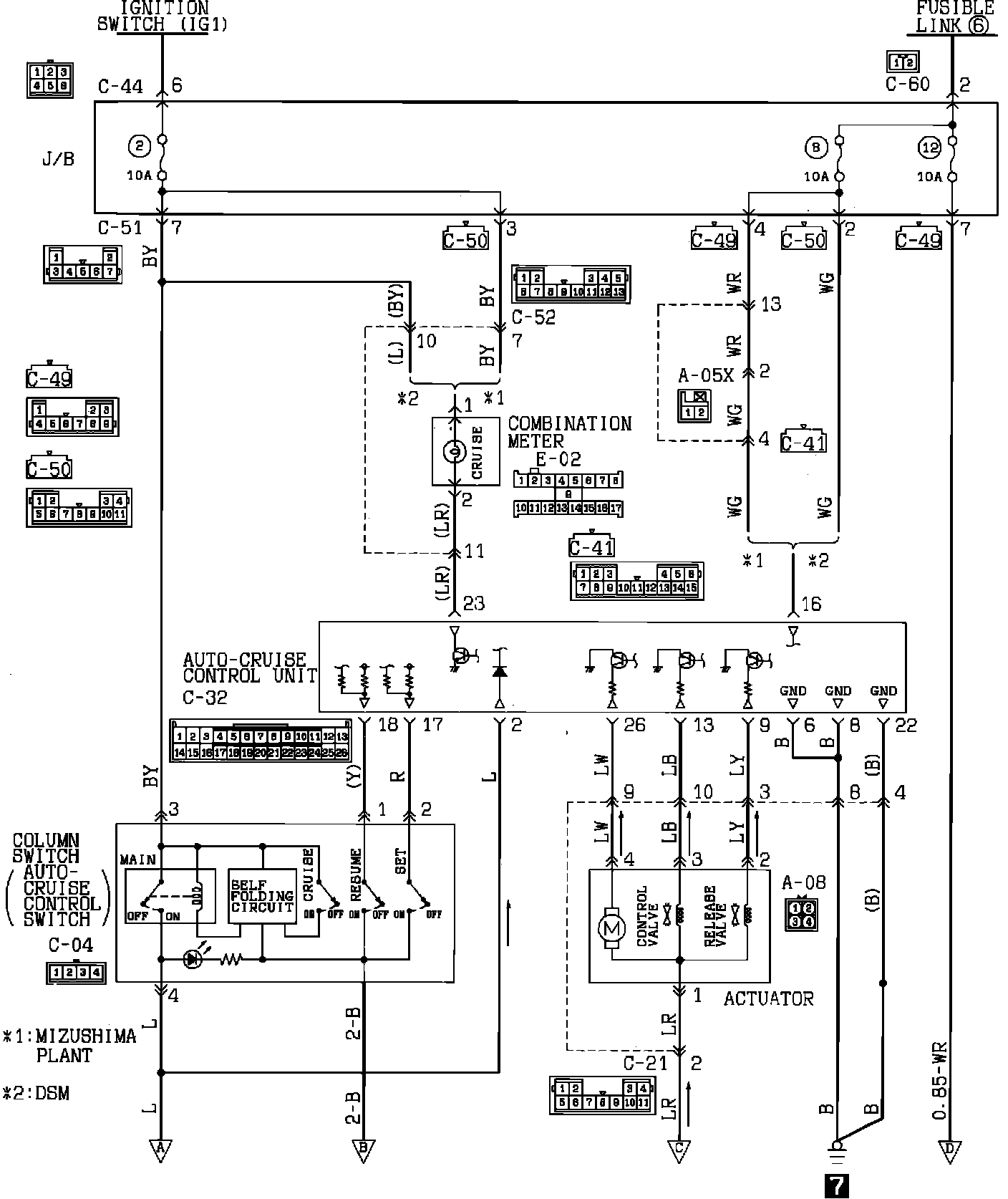

Cruise Control. Automatic Transaxle:

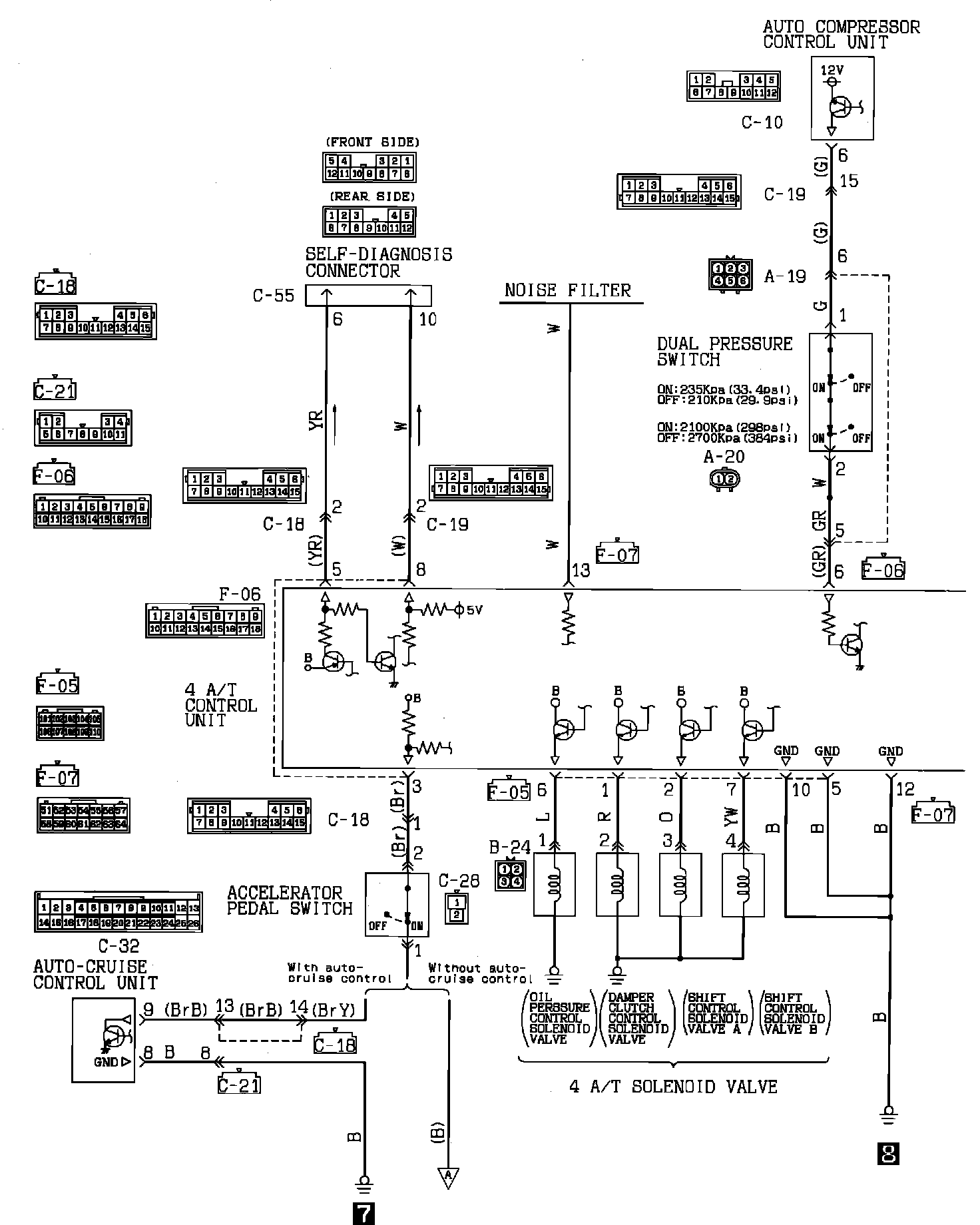

Cruise Control. Automatic Transaxle:

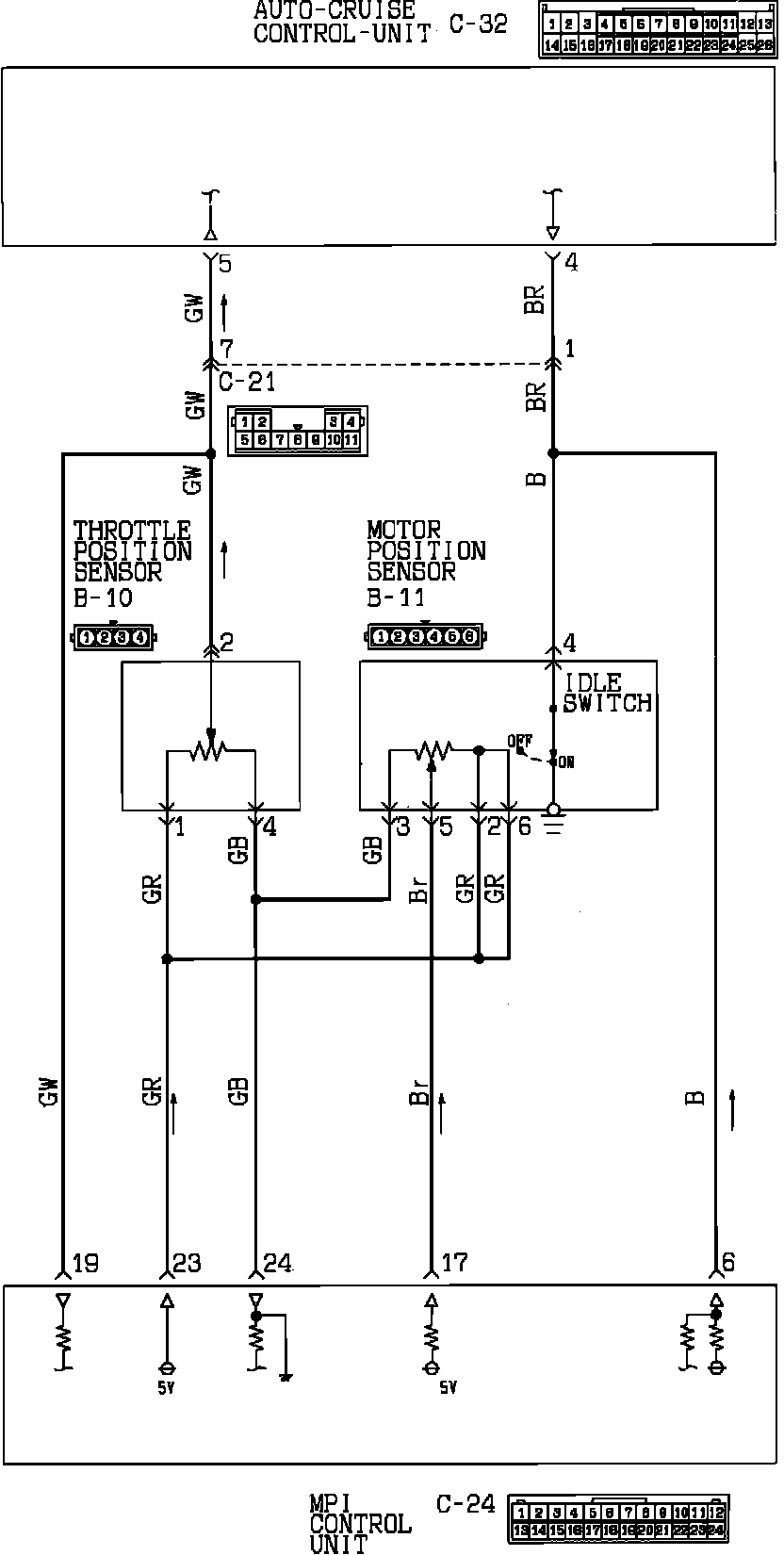

Cruise Control. Automatic Transaxle:
