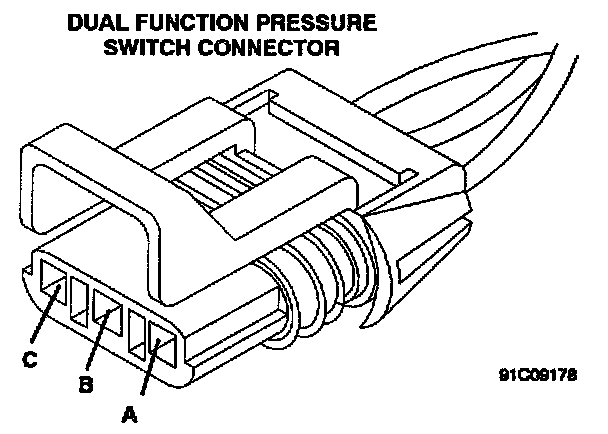

Dual Function Pressure Switch Connector

DUAL FUNCTION PRESSURE SWITCH CONNECTOR

CAV CIRCUIT.......... FUNCTION
A..... S5 BR............ Starter Relay
B..... P6 GY............ Pump Motor Relay
C..... B17 RD........... Warning Pressure
