Home
>>
Dodge
>>
1991
>>
Stealth ES V6-2972cc 3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Panel Details
>>
Dedicated Fuse
Dedicated Fuse

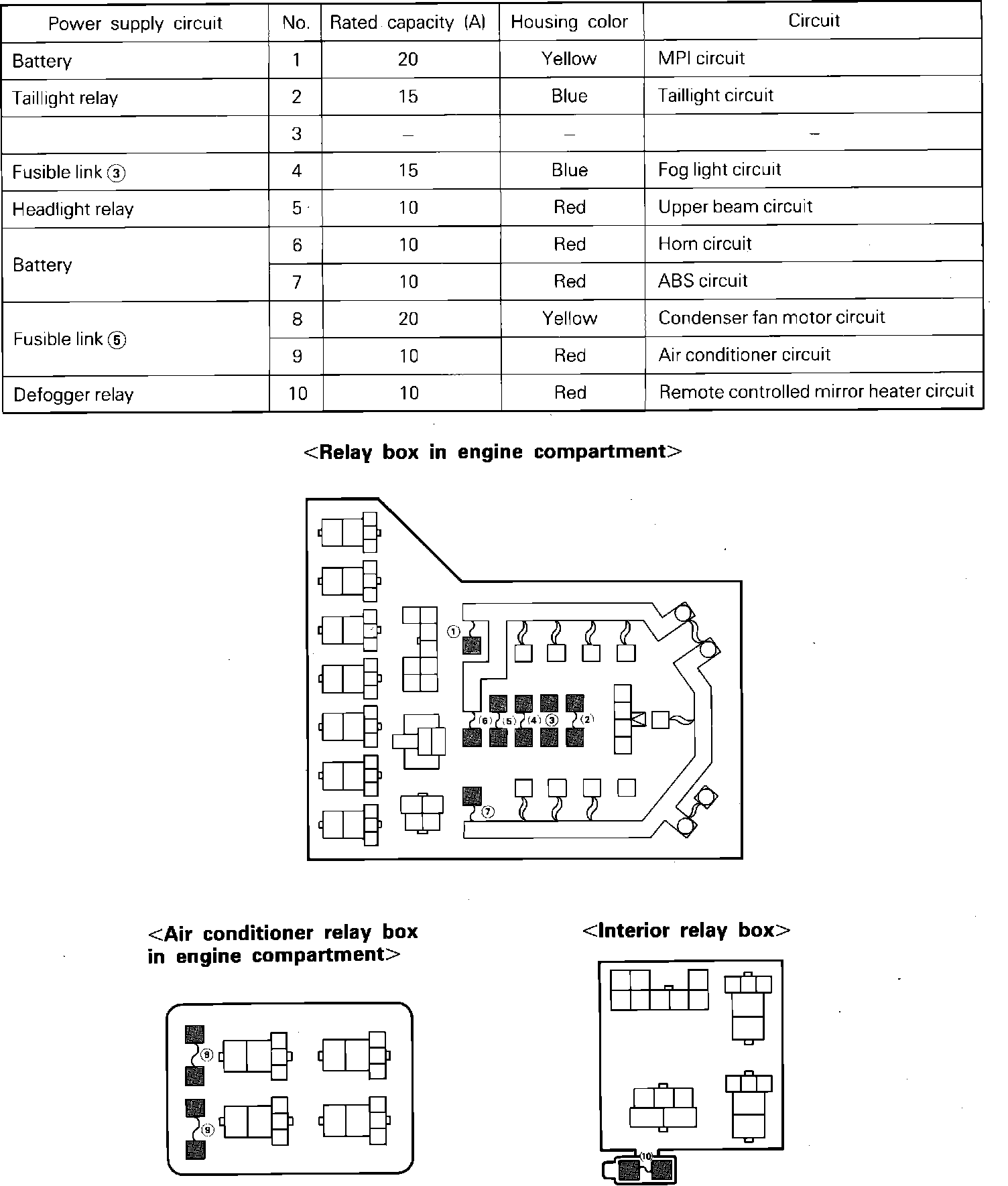

Fuse Panel Details: Centralized Junction Dedicated Fuse:
