Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1991
>>
Stealth V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

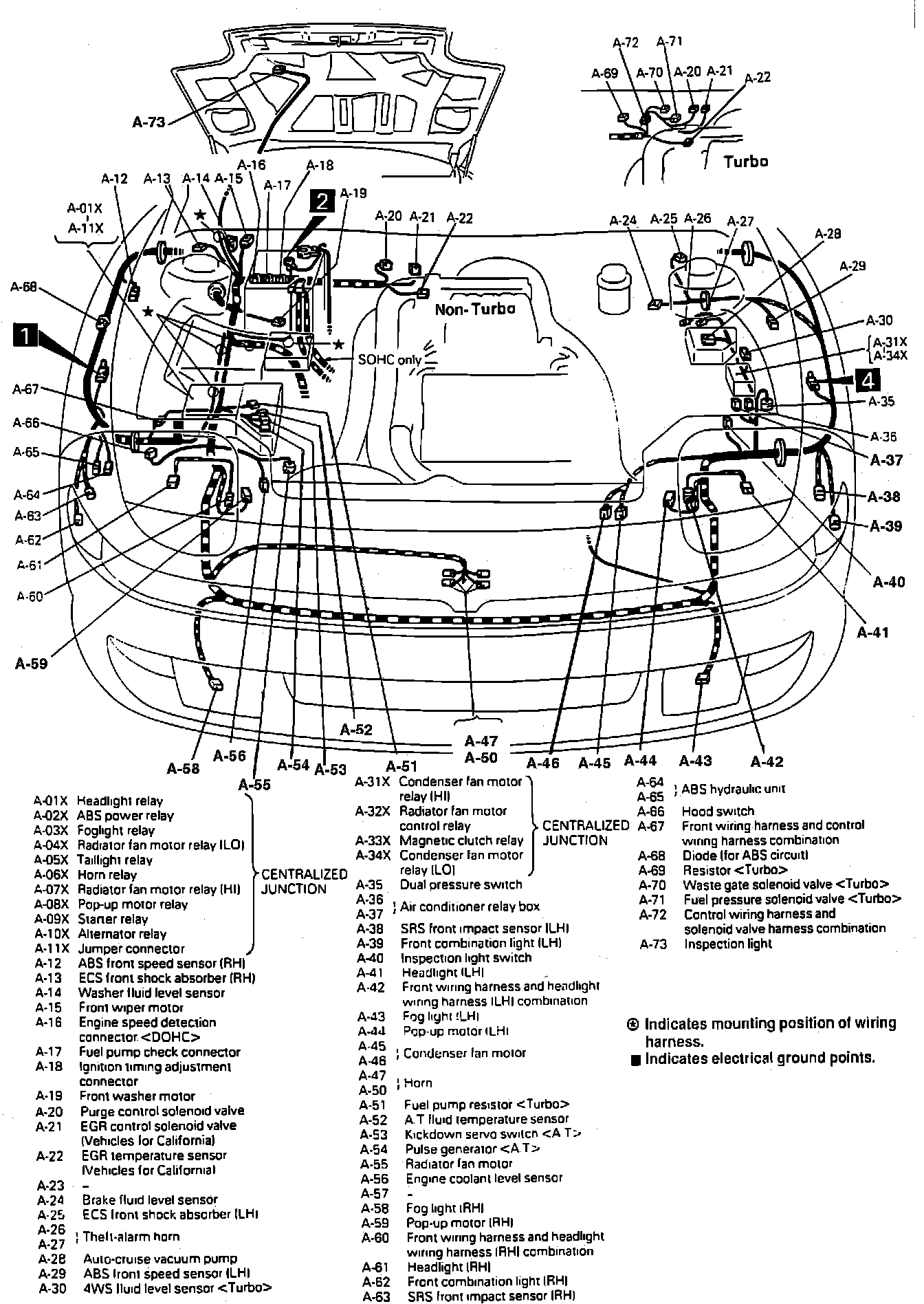

Engine Compartment Connector Locations
Engine Compartment Connector Locations

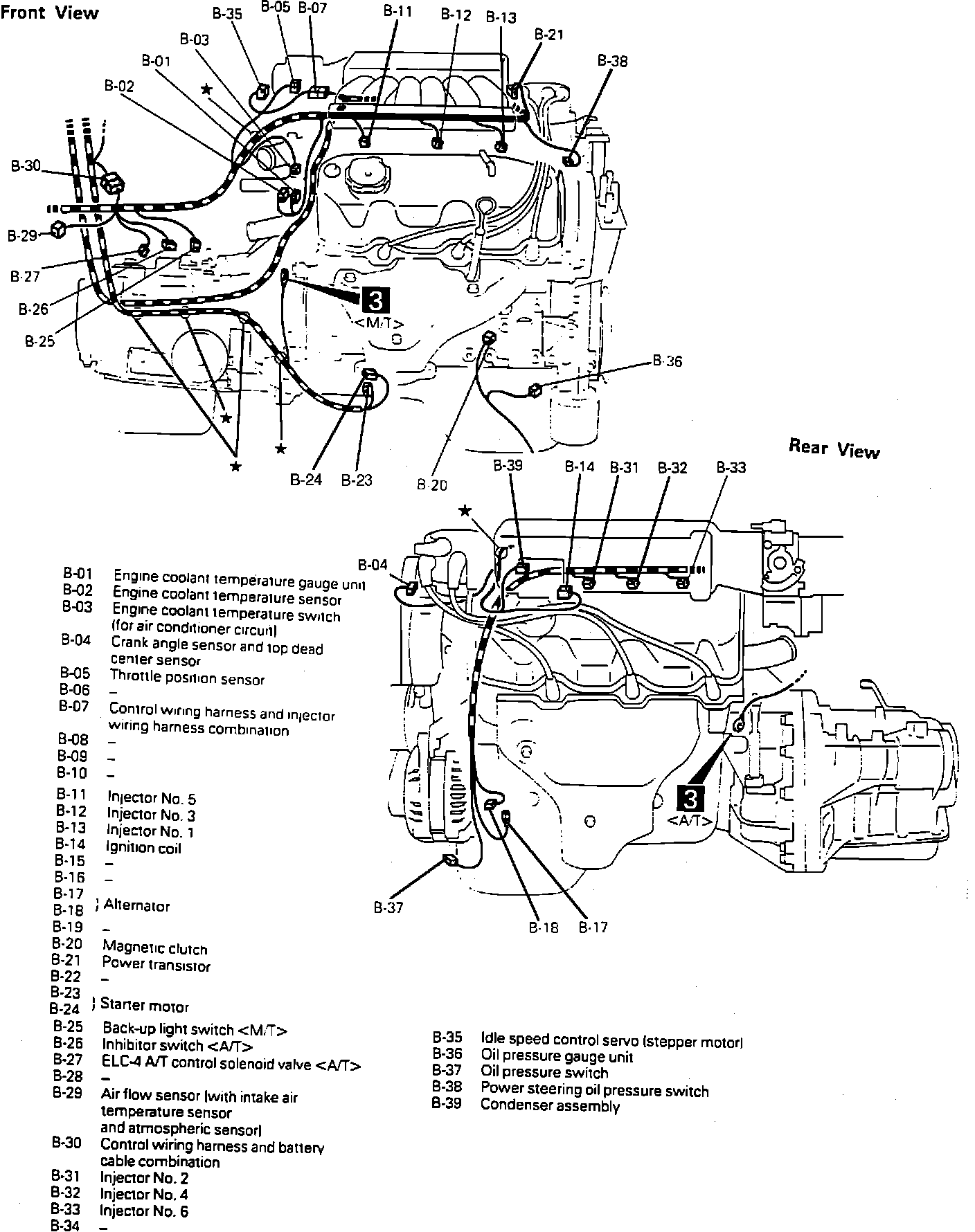

Engine Electrical Connectors:
SOHC - Transaxle Electrical Harness Connectors:
