Home >> Dodge >> 1992 >> Stealth R/T V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Locations >> Connector Locations >> Component Connector Locations

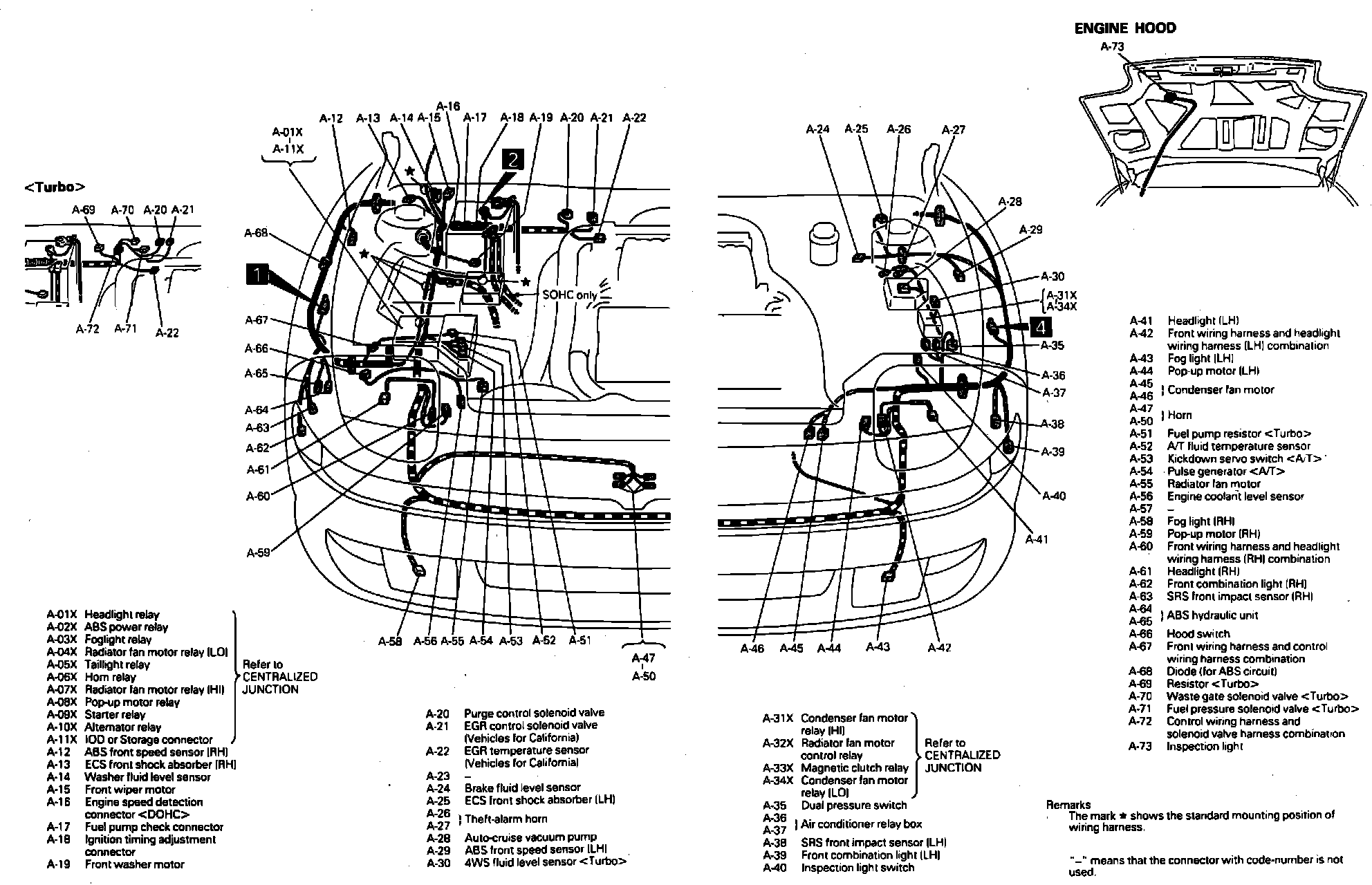

Component Connector Locations

Engine Compartment Connectors:




Front RH Side Of Engine Compartment
