Air Bag Systems: Diagrams

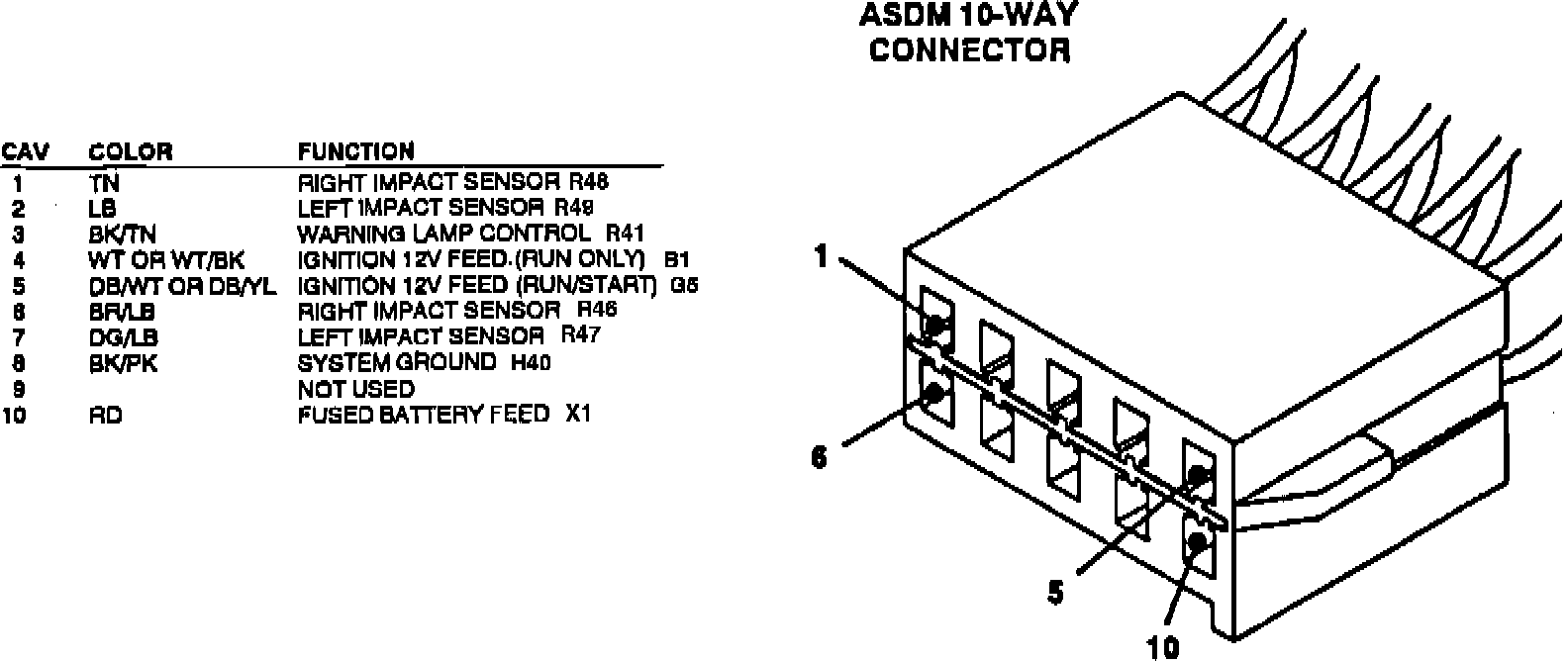

ACM (ASDM) 10-way Connector:



ASDM 2-way Connector Terminal Identification:
