With Keyless Entry System
With Keyless Entry System

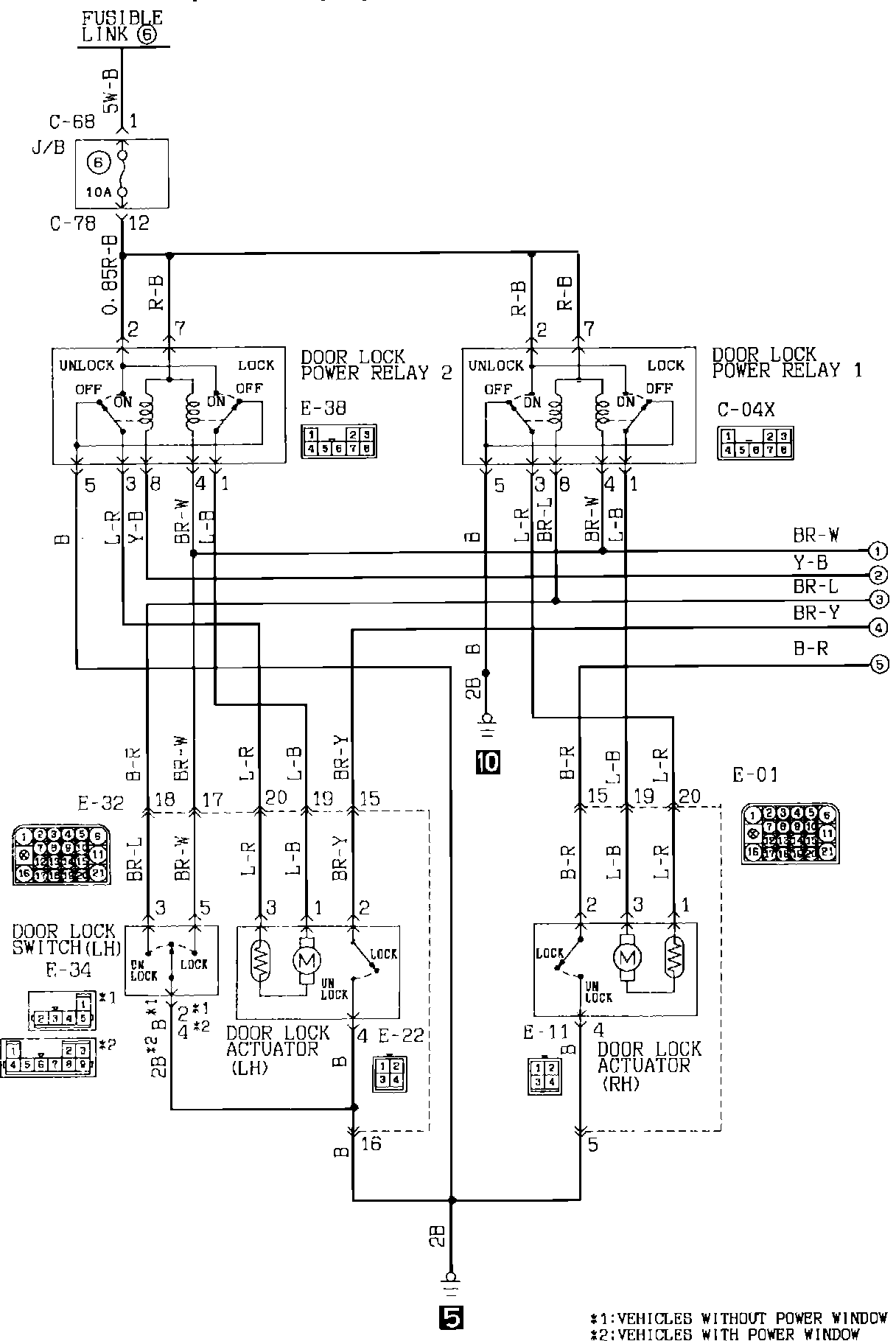

Power Door Lock Circuit Diagram:

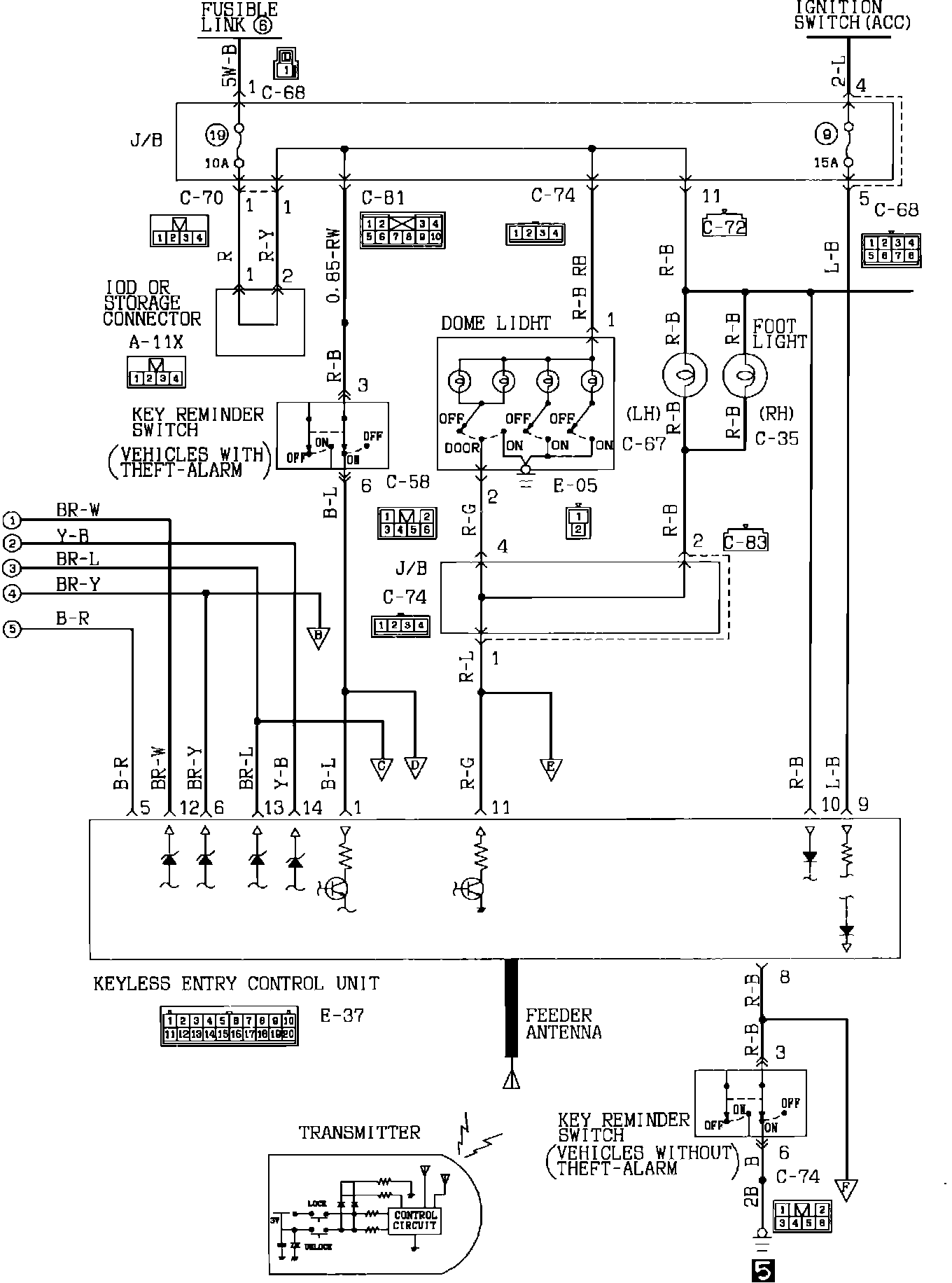

Power Door Lock Circuit Diagram:
Power Door Lock Circuit Diagram:
