Intrepid V6-215 3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

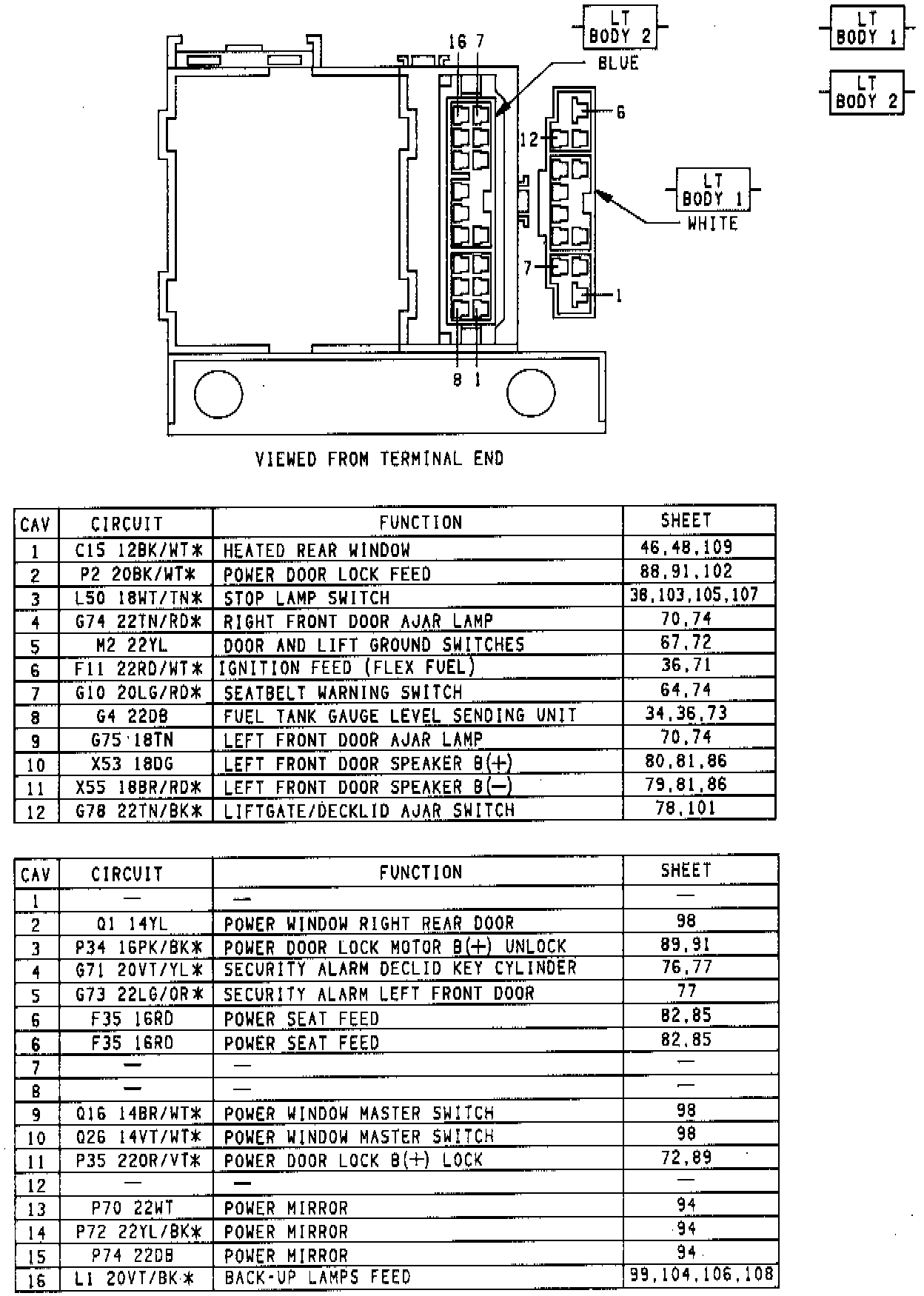

Left Body to Instrument Panel Wiring
Left Body to Instrument Panel Wiring
Left Body To Instrument Panel Wiring:
