Home >> Dodge >> 1994 >> Shadow Convertible L4-153 2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> 4 Door

4 Door

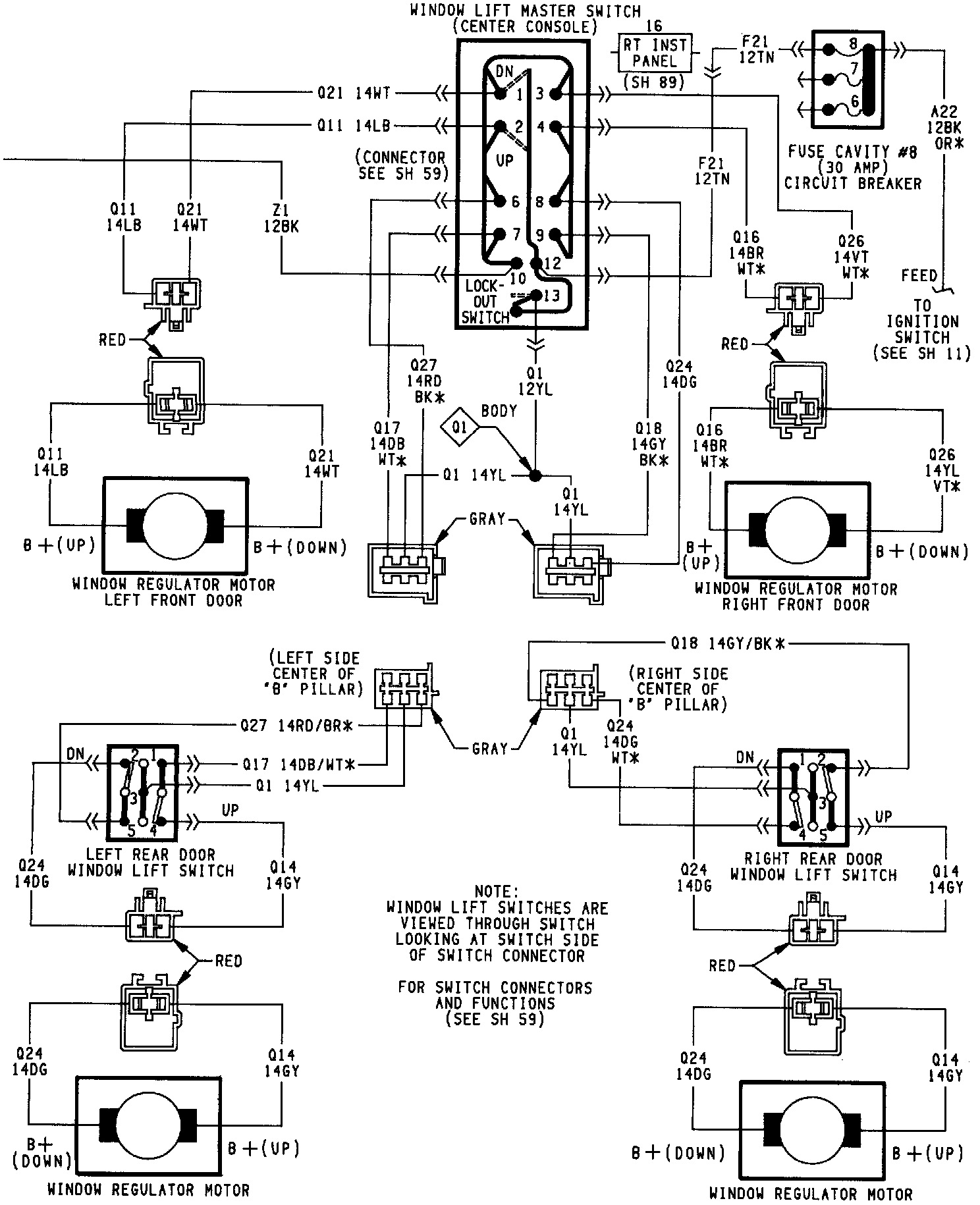

4 Door Power Window System:
