Operation CHARM: Car repair manuals for everyone.
Home >> Dodge >> 1994 >> Stealth R/T V6-2972cc 3.0L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Diagrams

Starter Motor: Diagrams

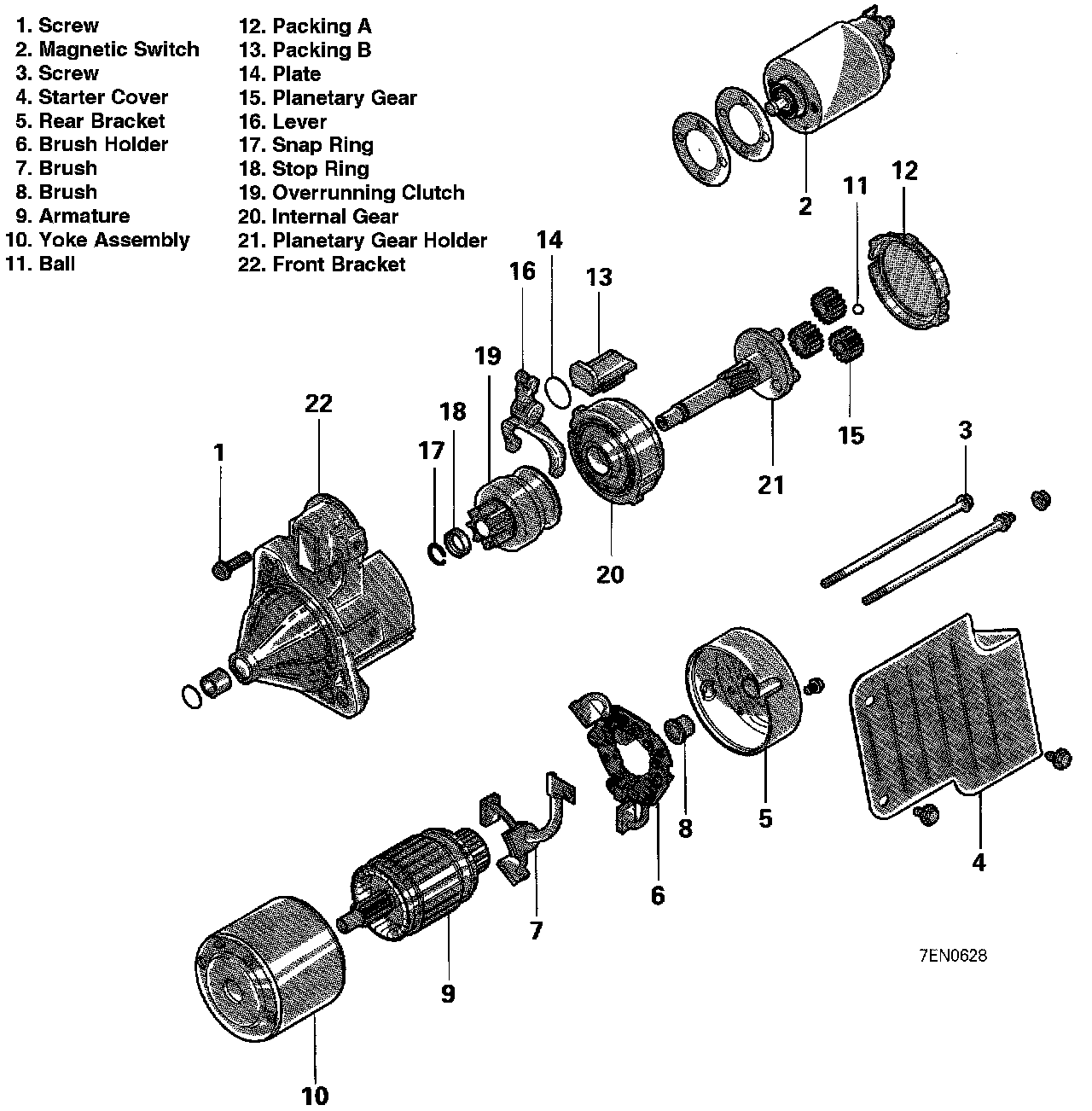

Starter Motor <Federal And Canada>:

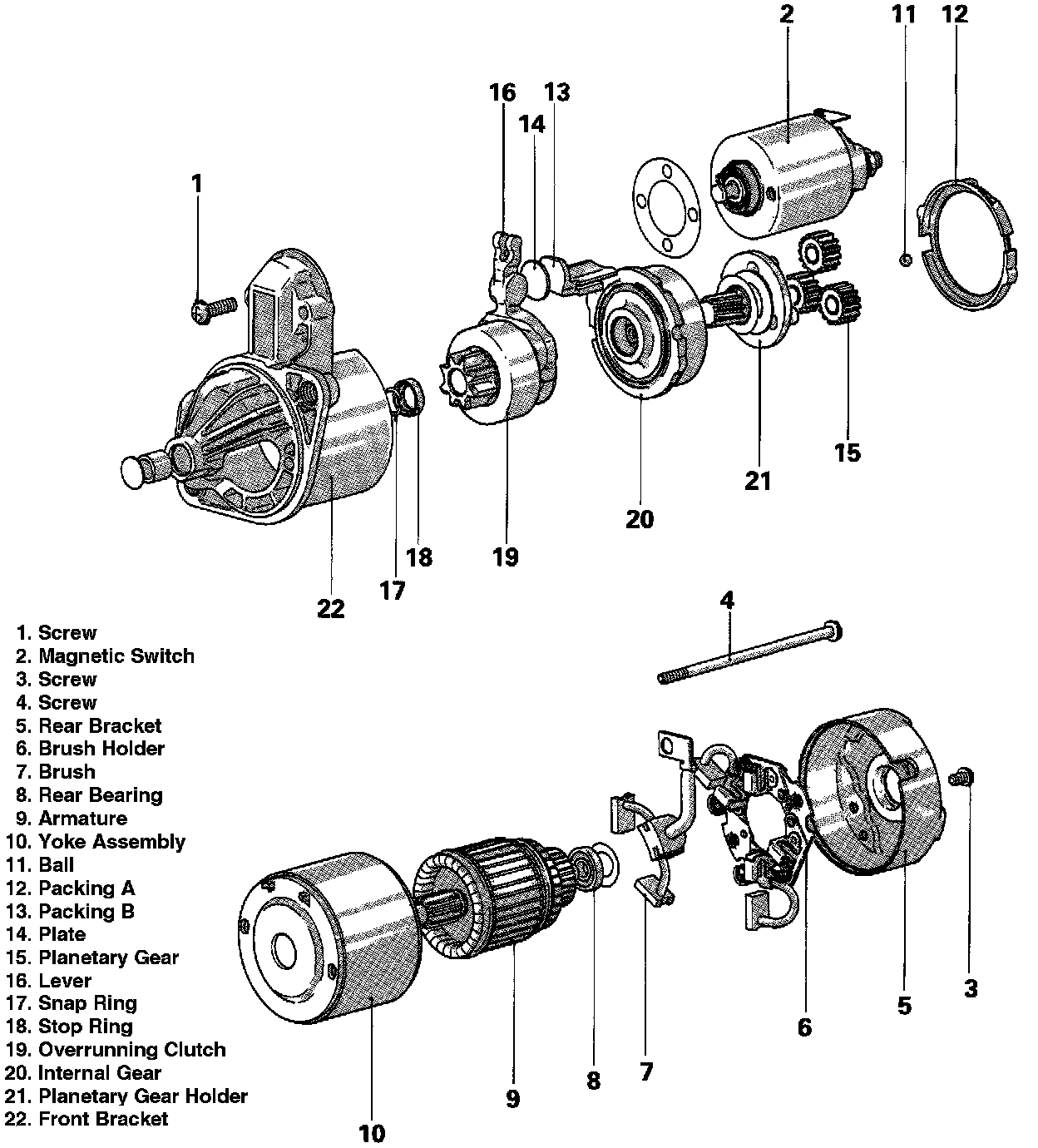

Starter Motor <California>:
