Uni-Body to Instrument Panel Wiring
Uni-Body to Instrument Panel Wiring

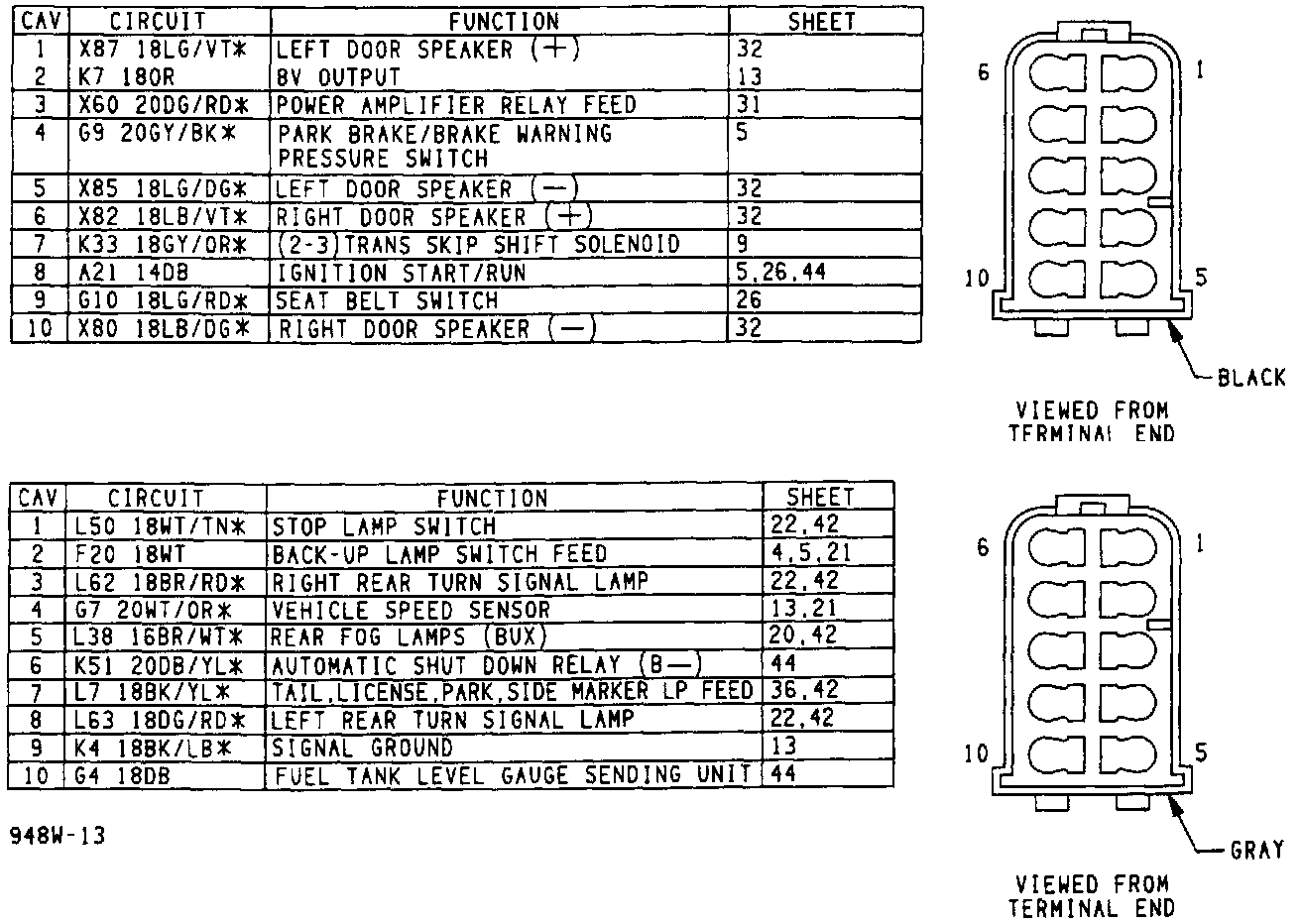

Unibody To Instrument Panel Wiring:
