Dodge
>>
1995
>>
Avenger V6-2.5L SOHC 24 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Pump
>>
Fuel Pump Relay
Fuel Pump Relay

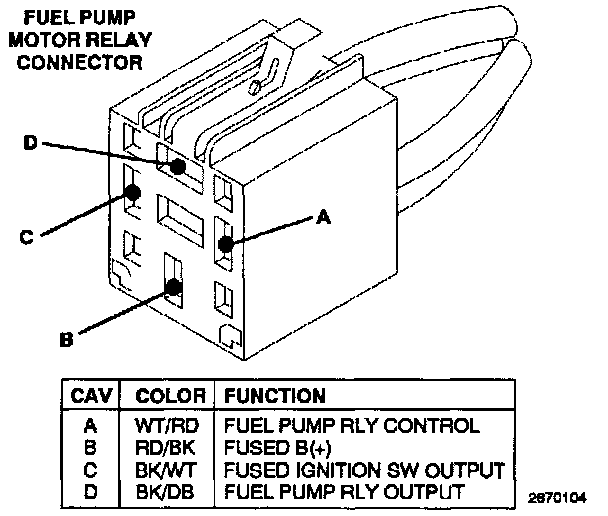

Fuel Pump Motor Relay Connector:
