Dodge
>>
1996
>>
Viper V10-488 8.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Left Oxygen Sensors
>>
Upstream
Upstream

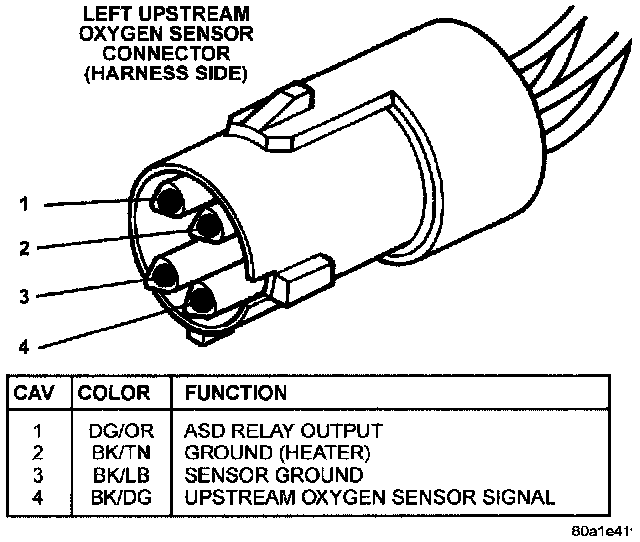

Left Upstream Oxygen Sensor:
