NTC-7A Checking For Oxygen Sensor Switching
NTC-7A Checking For Oxygen Sensor Switching
Related Images:

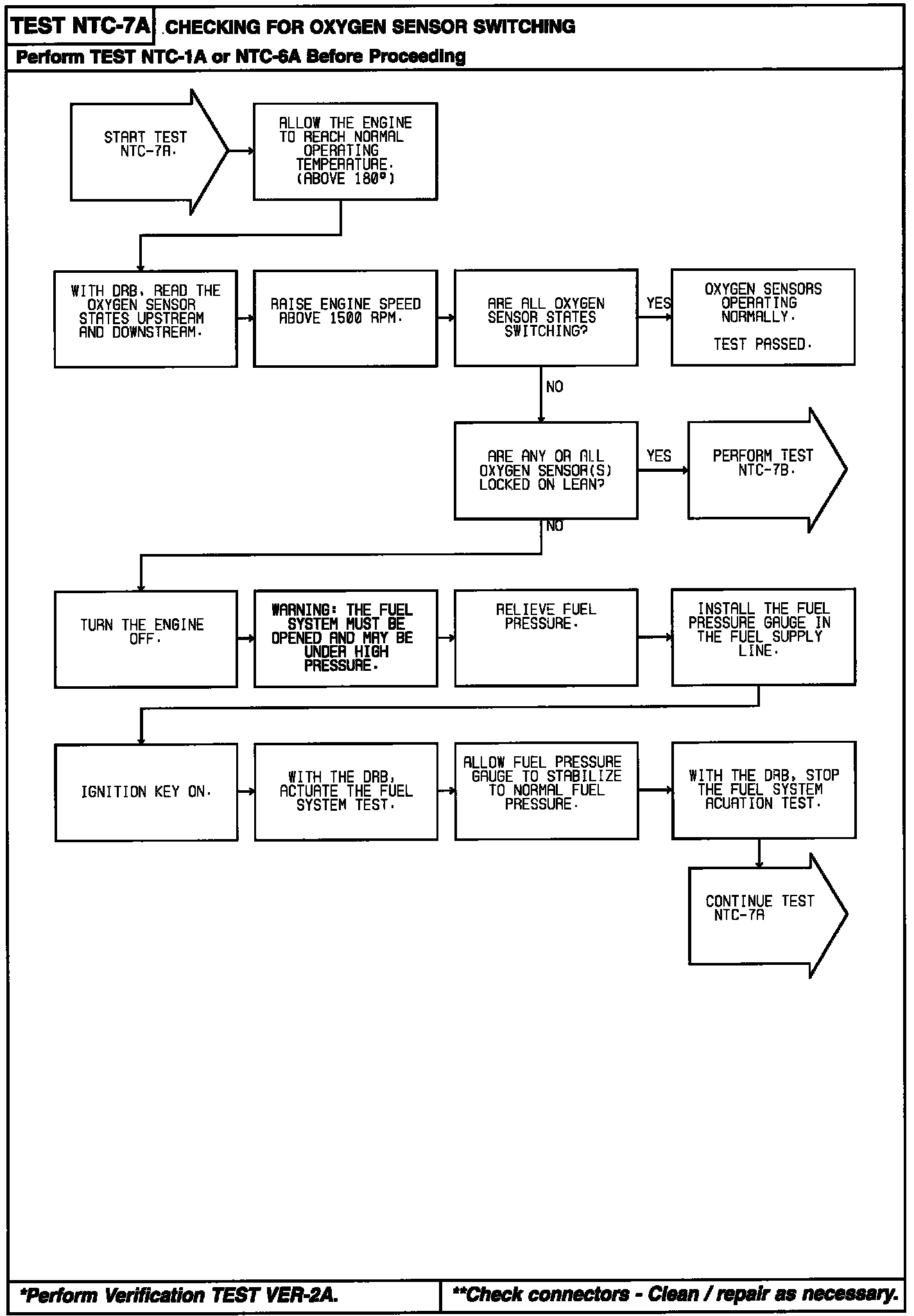

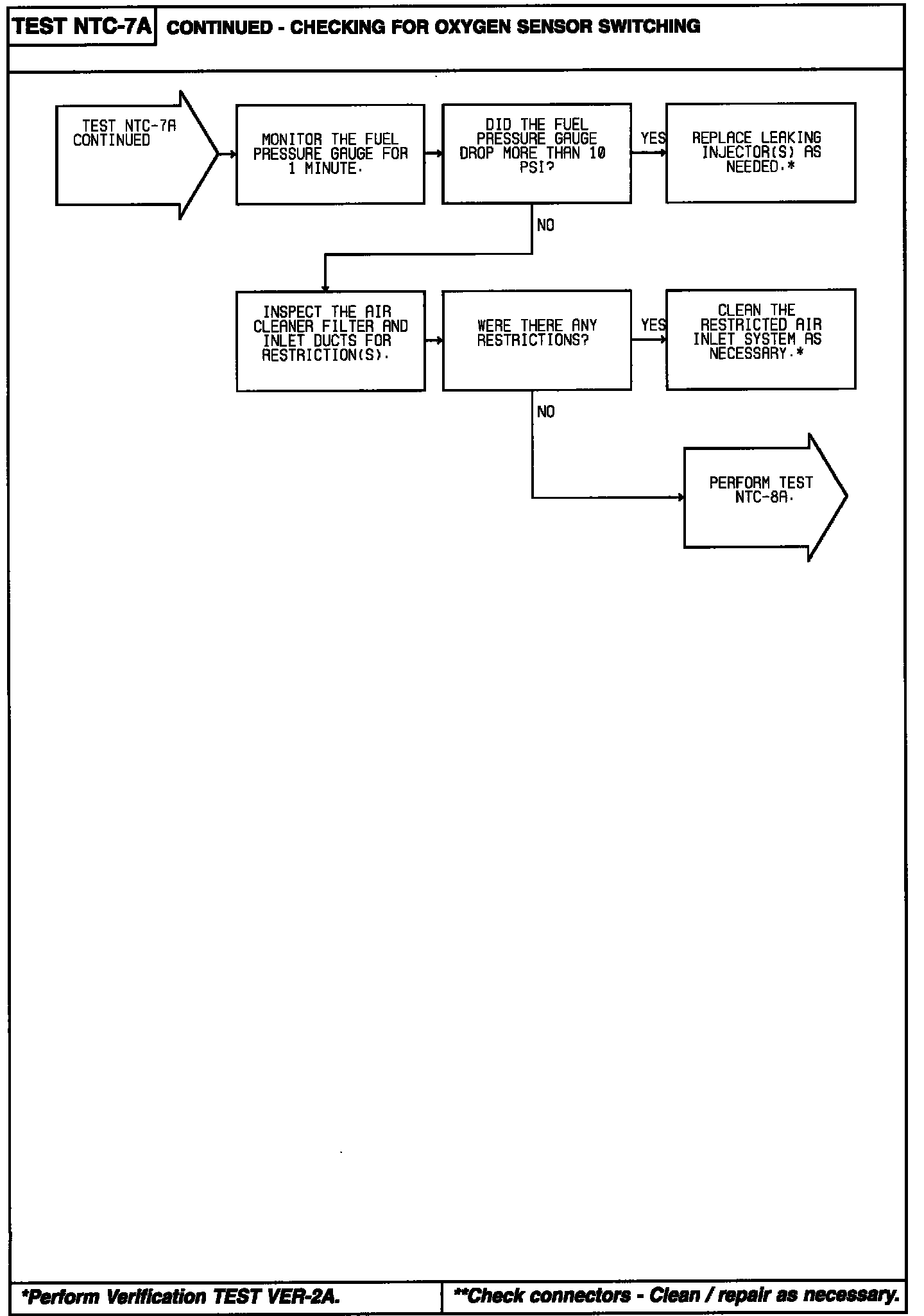

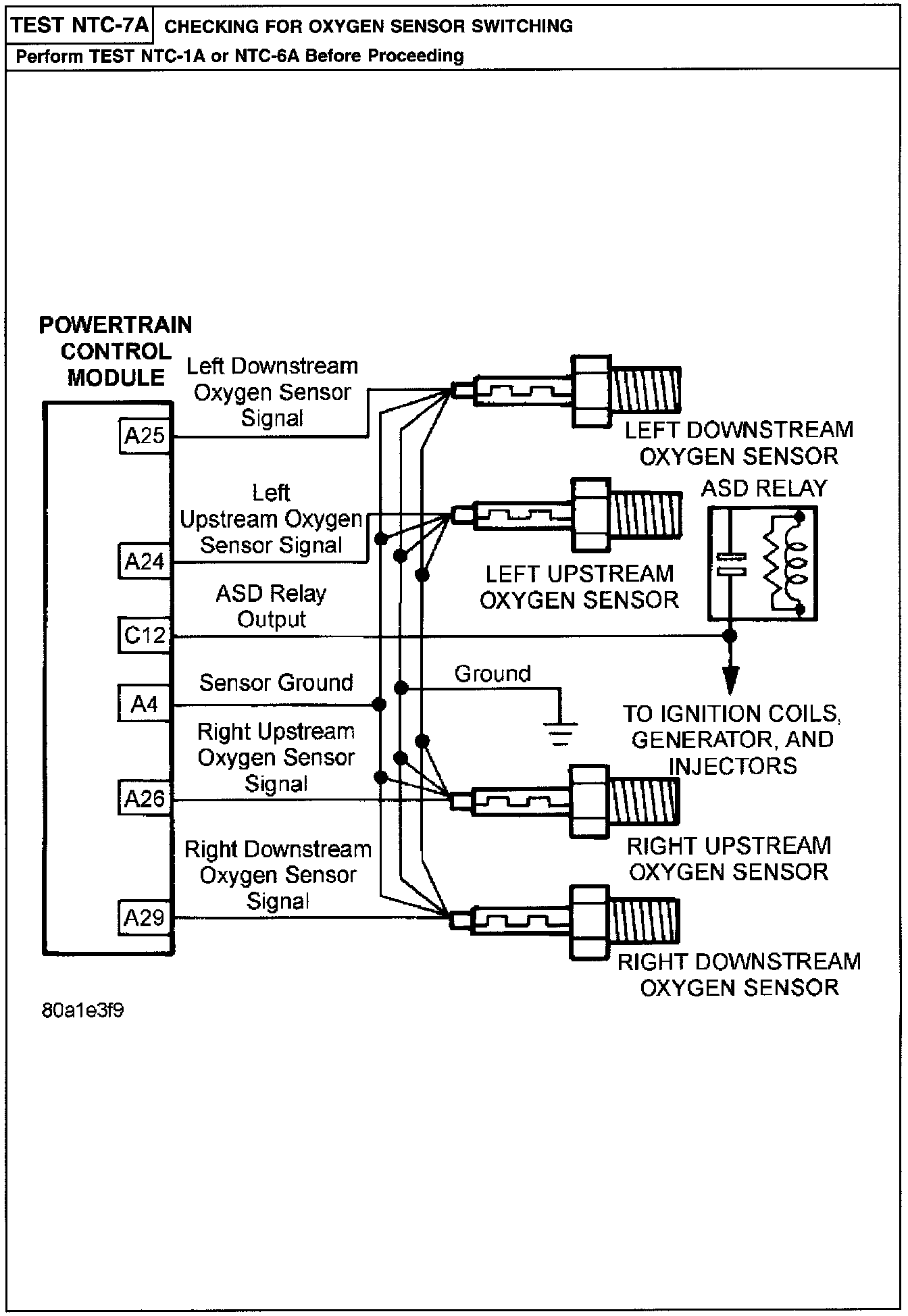

! +Diagnostic Chart:
; +Diagnostic Chart:
