NTC-7B Checking For Oxygen Sensor Switching
NTC-7B Checking For Oxygen Sensor Switching
Related Images:

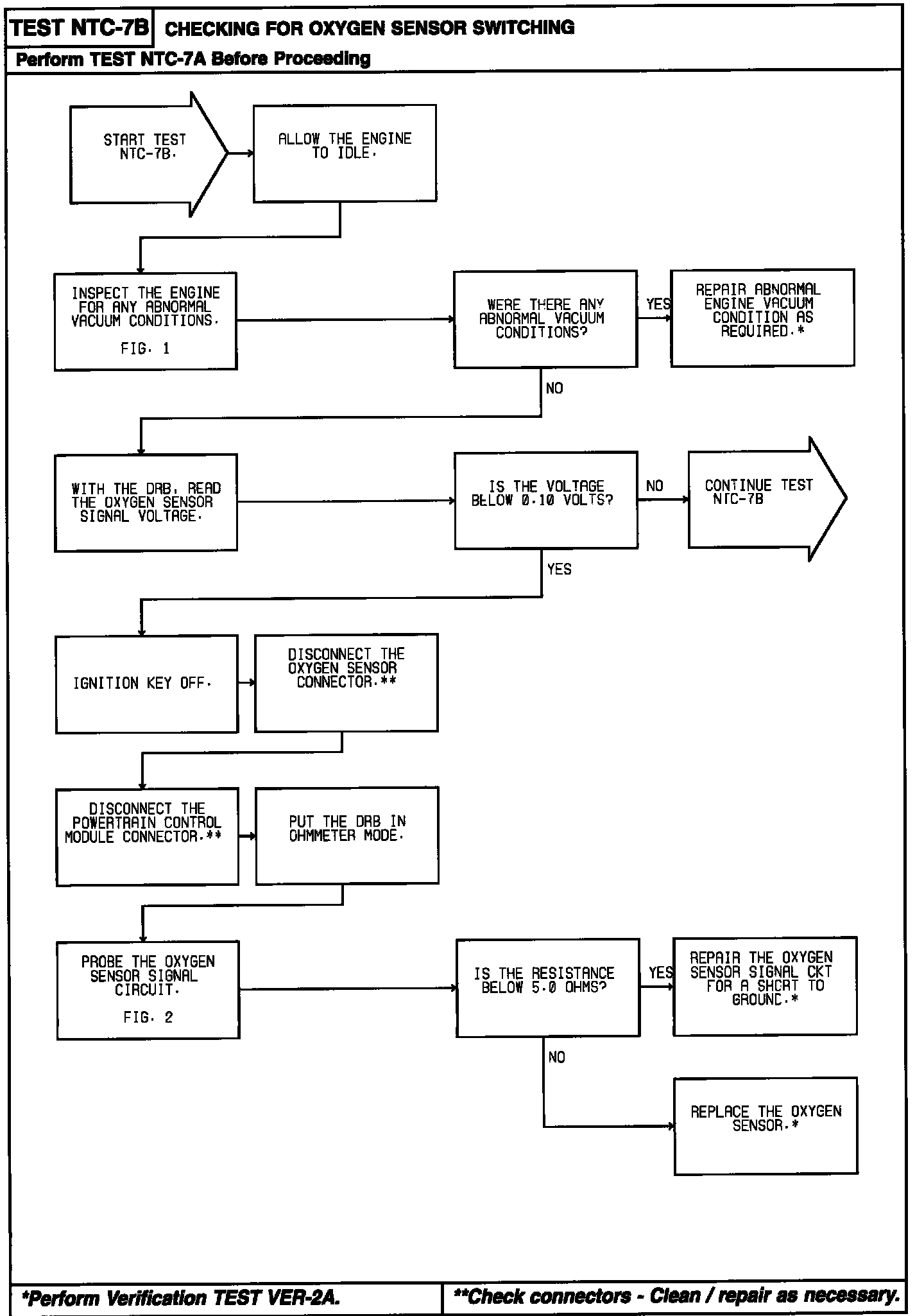

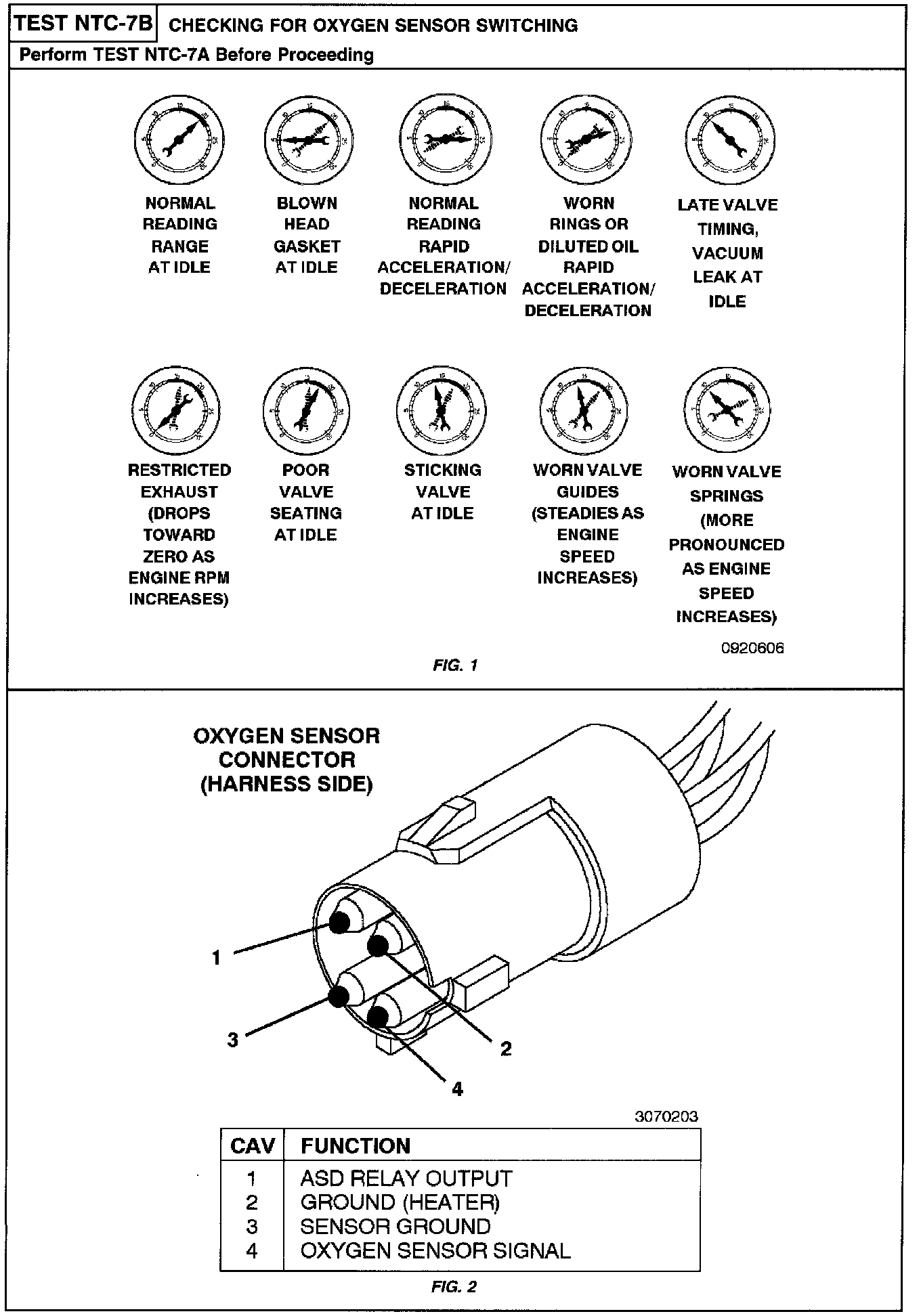

j�+Diagnostic Chart:

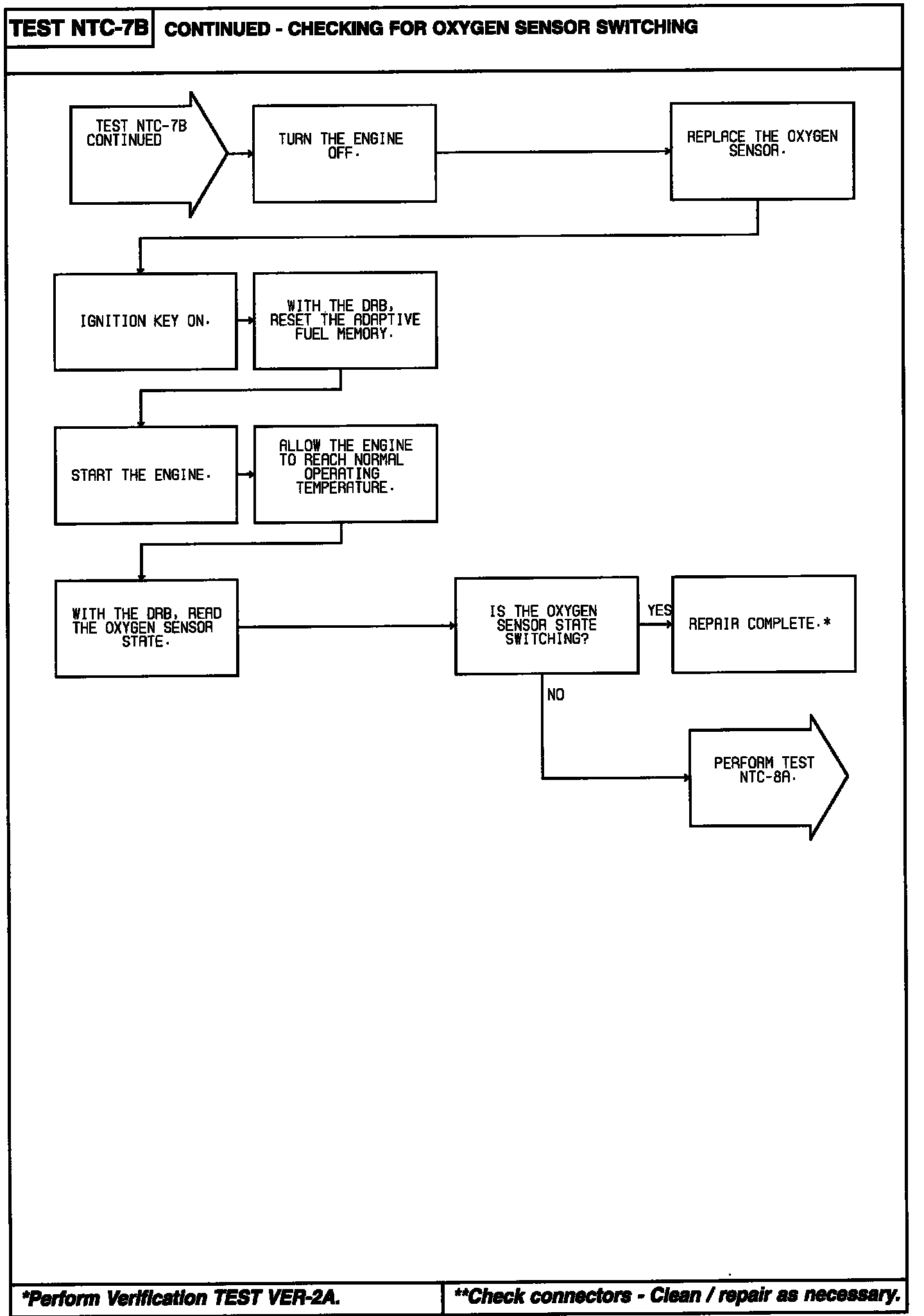

" +Diagnostic Chart:
