Accessory Drive Belt

The Poly-V generator/power steering belt has an adjustable tensioner pulley located on the front timing belt cover.

REMOVAL
1. Loosen tensioner pulley locking nut.
2. Raise vehicle on hoist.
3. Remove the two (2) push clips attaching lower air shield to engine cradle. Remove air shield.
4. Loosen tensioner adjusting bolt until the accessory belt can be removed.

INSTALLATION
1. Install accessory drive belt.

NOTE: Use Special Tool 7198, Belt Tension Gauge to obtain proper tension on accessory drive belt.

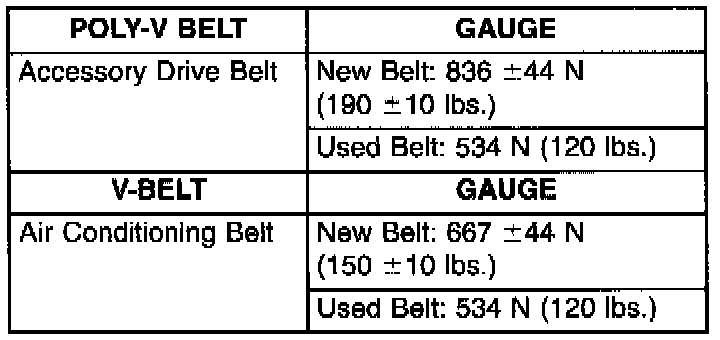

Belt Tension Chart-3.2L:

2. Tighten adjusting bolt until the specified tension is obtained.
3. Install lower air shield and attaching push clips.
4. Lower vehicle.
5. Tighten tensioner pulley locking nut.
