Home >> Dodge >> 2001 >> Viper GTS V10-8.0L VIN E >> Repair and Diagnosis >> Locations >> Fuse and Fusible Link Locations >> Fuse Block

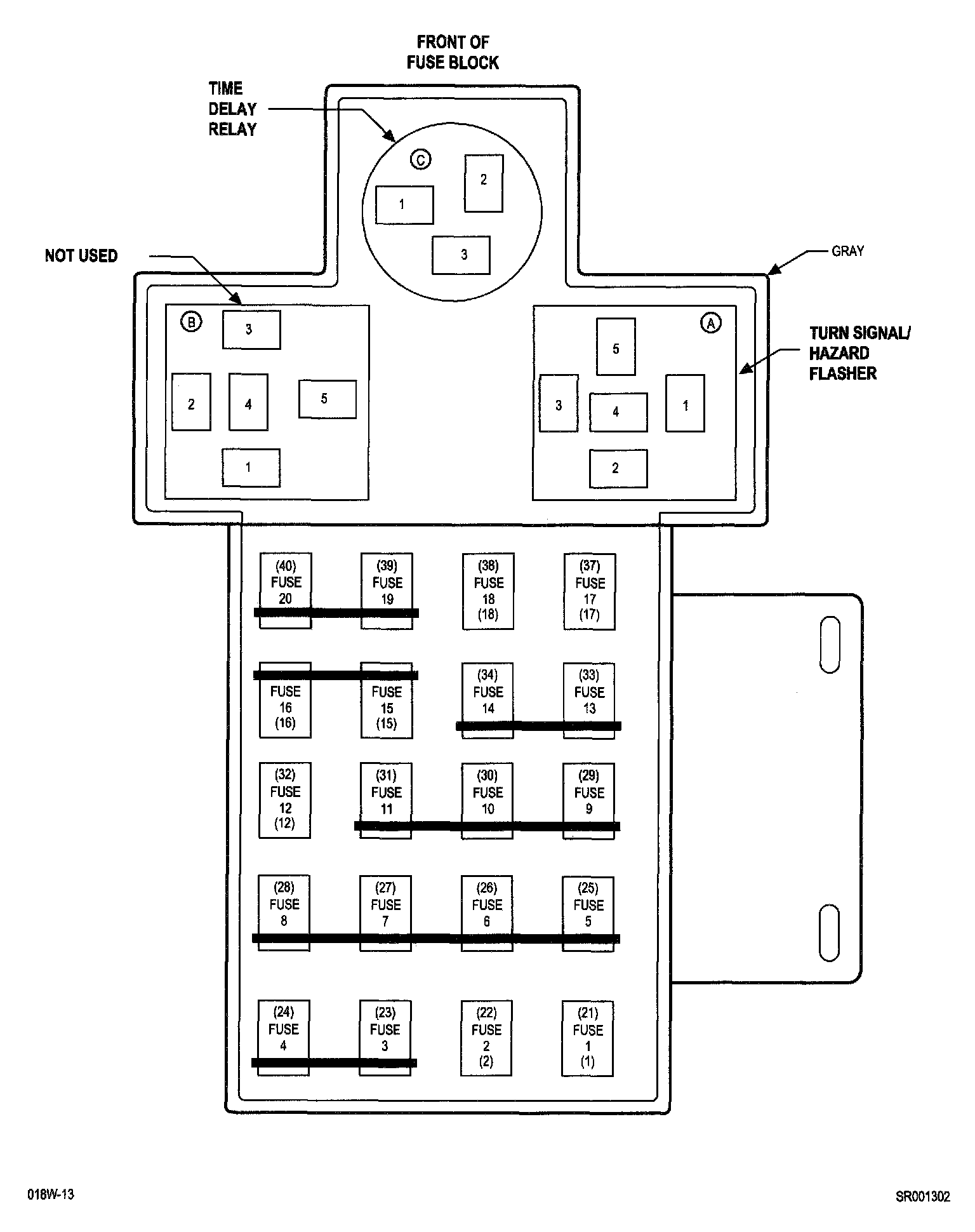

Fuse Block

8w-13-2:

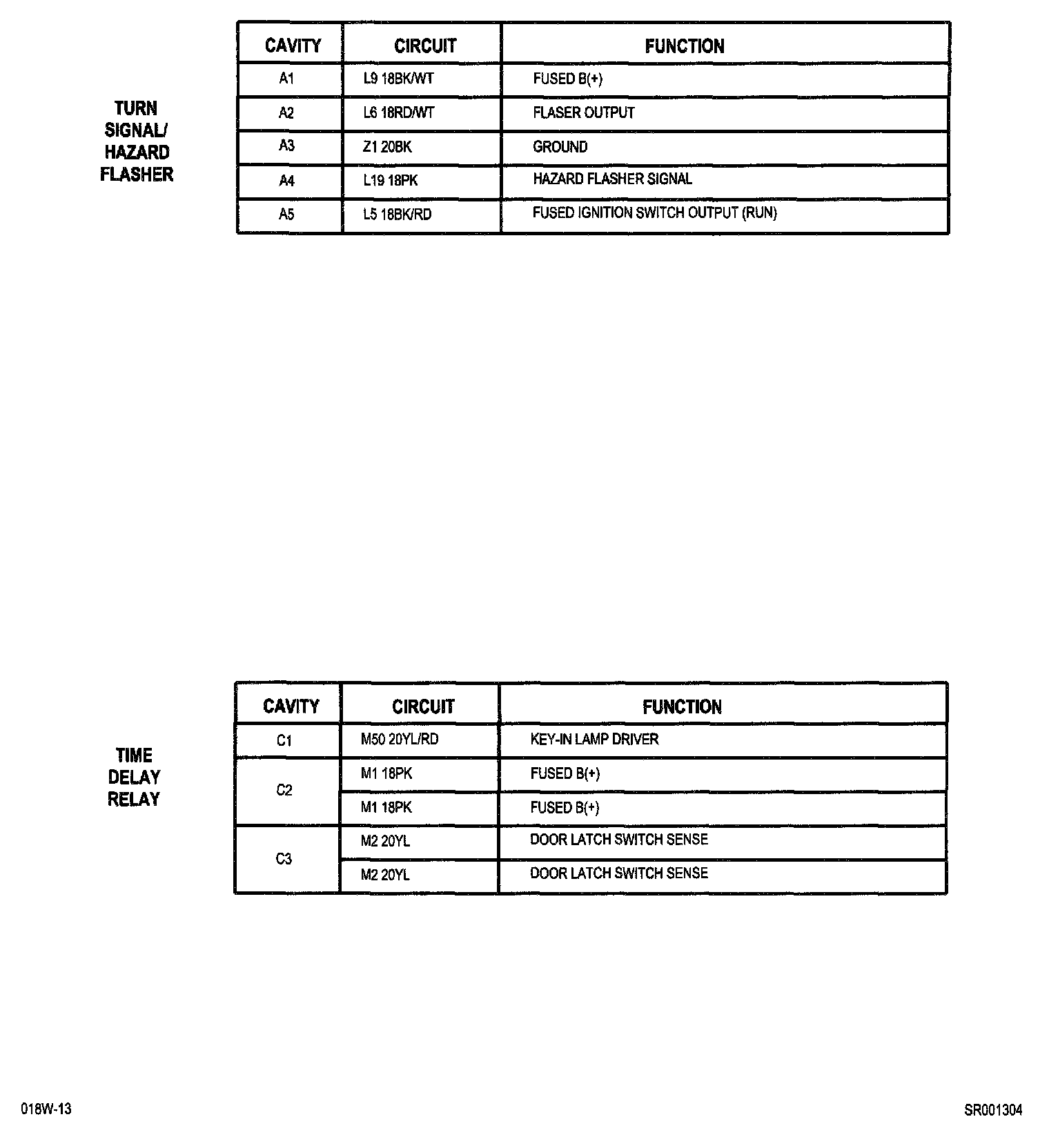

8w-13-4:
