Master Cylinder Bleeding

STANDARD PROCEDURE - MASTER CYLINDER BLEEDING

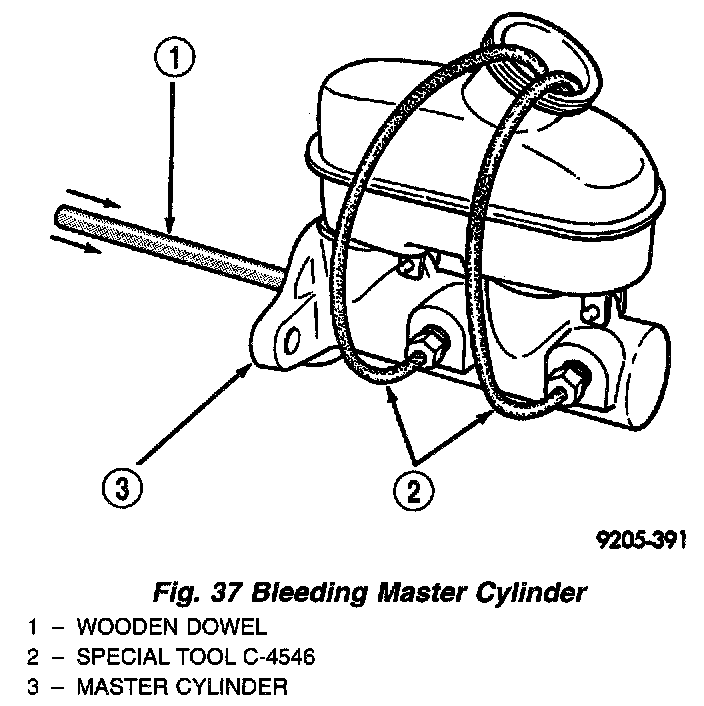

1. Clamp master cylinder in a vise. Attach Bleeding Tubes, Special Tool C-4546 to the master cylinder. Position tubes so outlets of Bleeding Tubes will be below the surface of the brake fluid when reservoir is filled to the proper level.
2. Fill reservoir with brake fluid conforming to DOT 4 Mopar© Brake Fluid or Equivalent. If DOT 4 is not available, DOT 3 is acceptable.
3. Using a wooden dowel, depress master cylinder pistons slowly, then allow pistons to return to released position. Repeat several times until all air bubbles are expelled.
4. Remove bleeding tubes from cylinder, plug outlets and install caps.
5. Remove master cylinder from vise and install on power brake booster.
