Center Mounted Brake Lamp
Center Mounted Brake Lamp
C308 (Coupe):

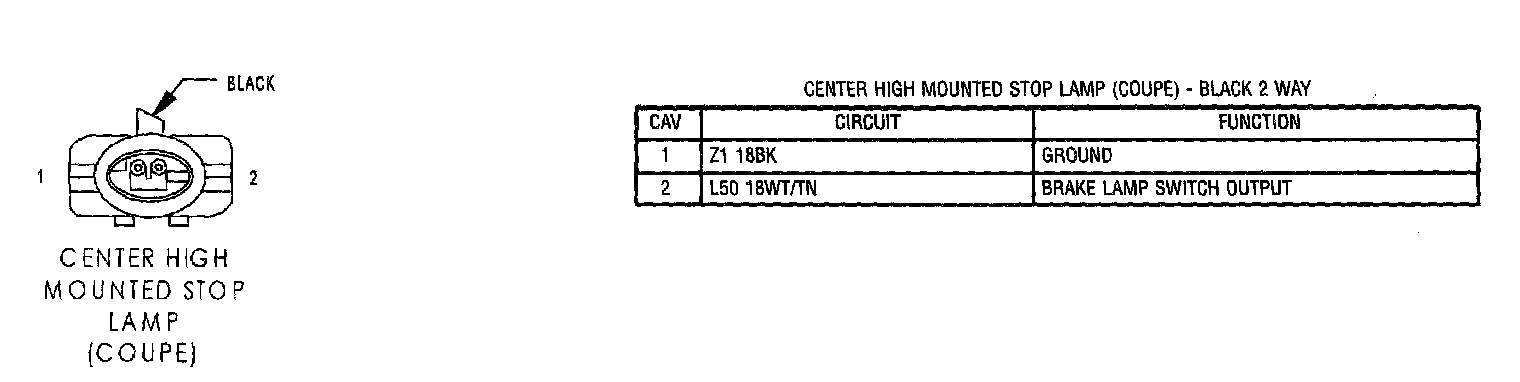

Center High Mounted Stop Lamp (Coupe):

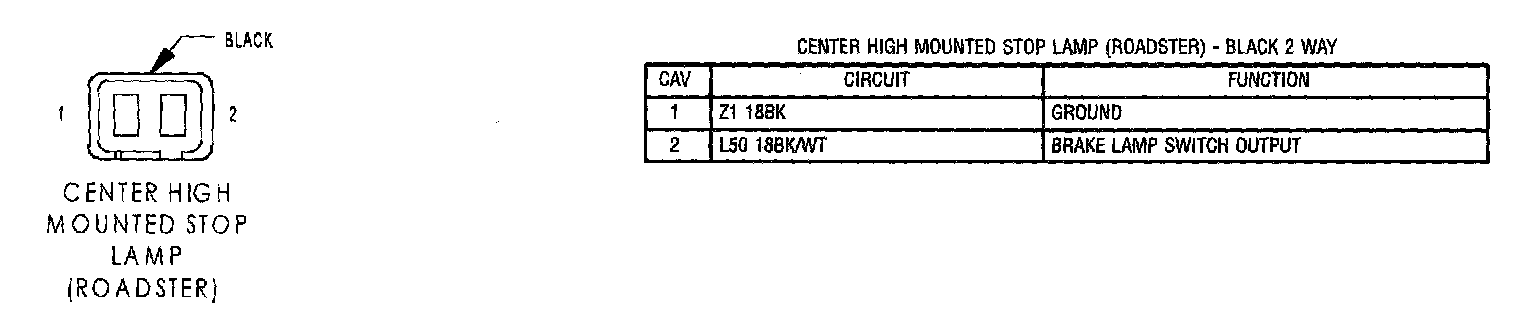

Center High Mounted Stop Lamp (Roadster):
