Trunk Lamp: Service and Repair

TRUNK LAMP UNIT

REMOVAL
1. Disconnect and isolate the battery negative cable
2. Open decklid.

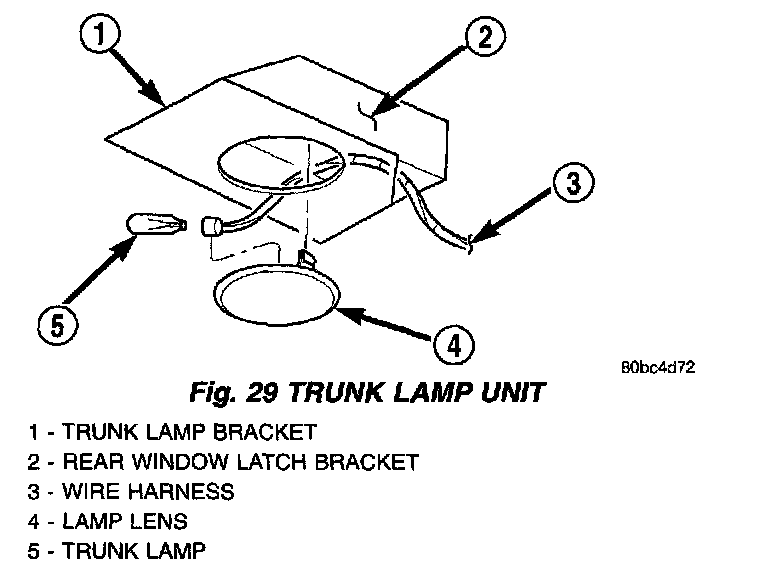

Fig. 29 Trunk Lamp Unit:

3. Remove lens from trunk lamp bracket .
4. Remove bulb.


INSTALLATION


1. Install new bulb.
2. Install lens.
3. Connect the battery negative cable.
