Front Door Latch

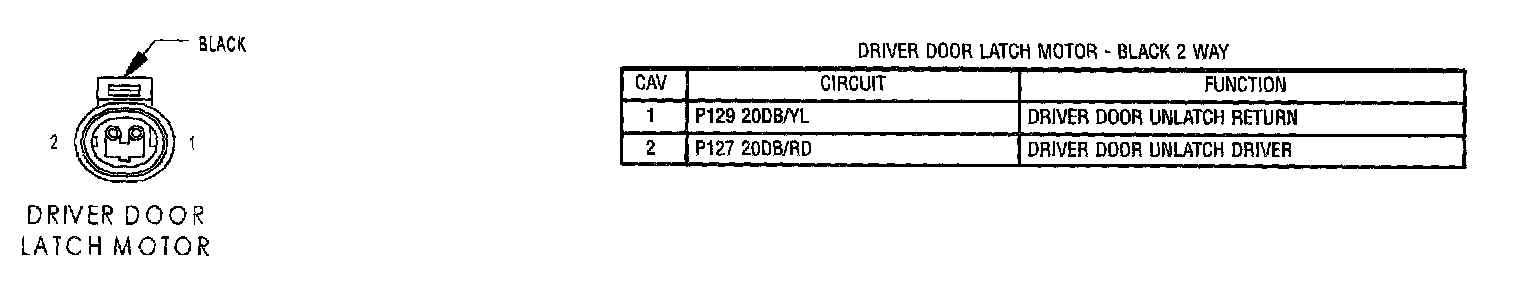

Driver Door Latch Motor:

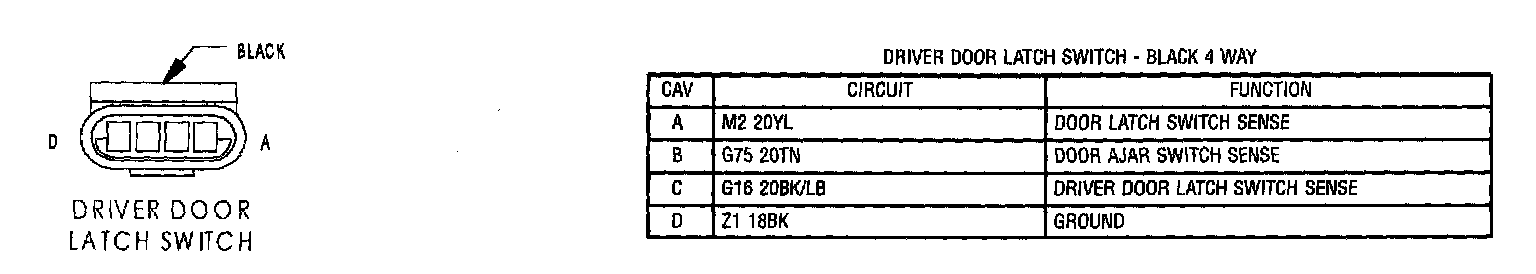

Driver Door Latch Switch:

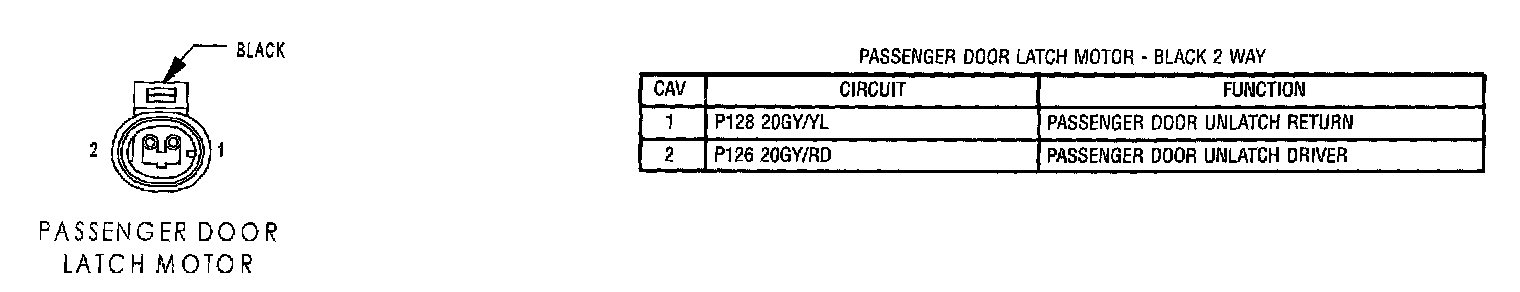

Passenger Door Latch Motor:

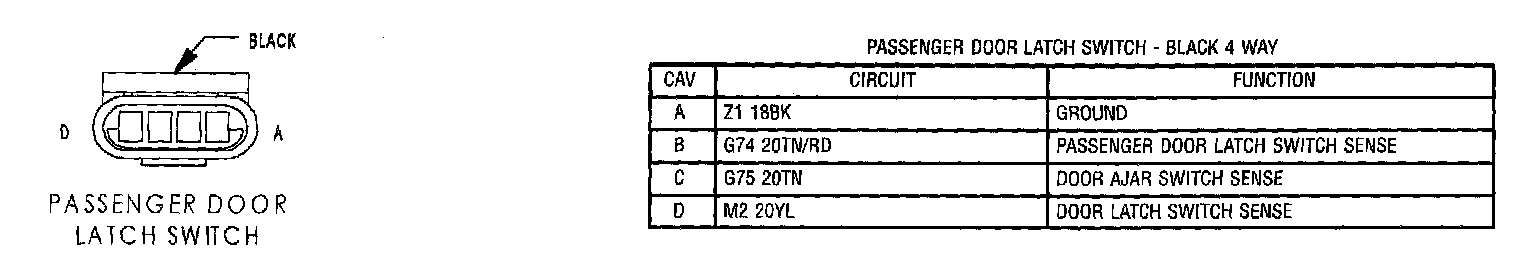

Passenger Door Latch Switch:
