Carpet: Service and Repair

CARPETS

REMOVAL

Floor Carpets
1. Disconnect and isolate the battery negative cable.
2. Remove the seat.
3. Remove the lower seat belt anchor.
4. For the passenger side carpet, remove the radio amplifier.

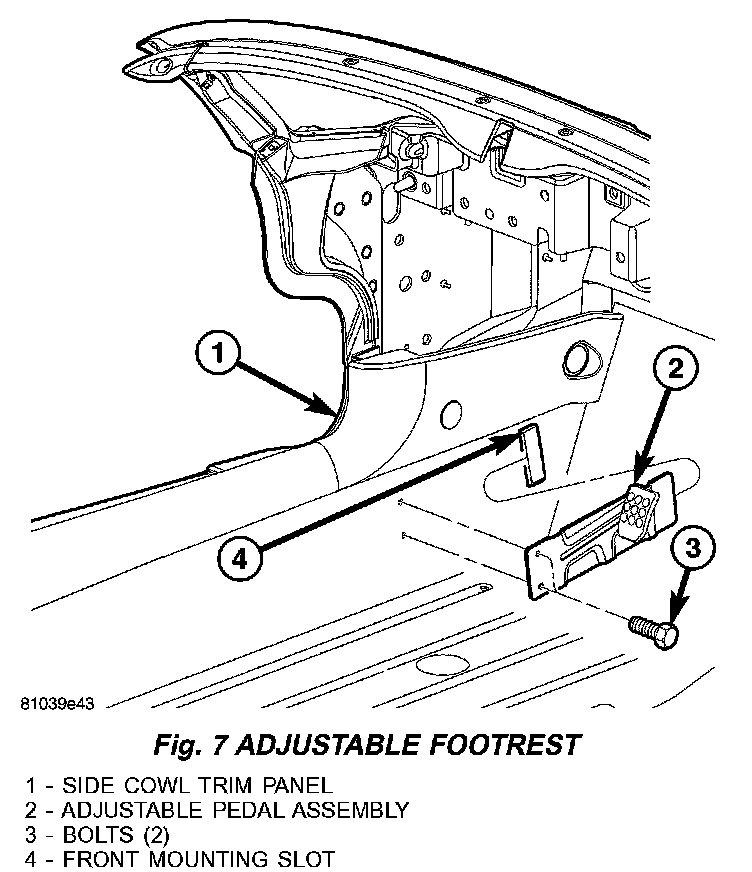

Fig. 7:

5. For the driver's side carpet, remove the bolts and remove the adjustable footrest. (Fig. 7)

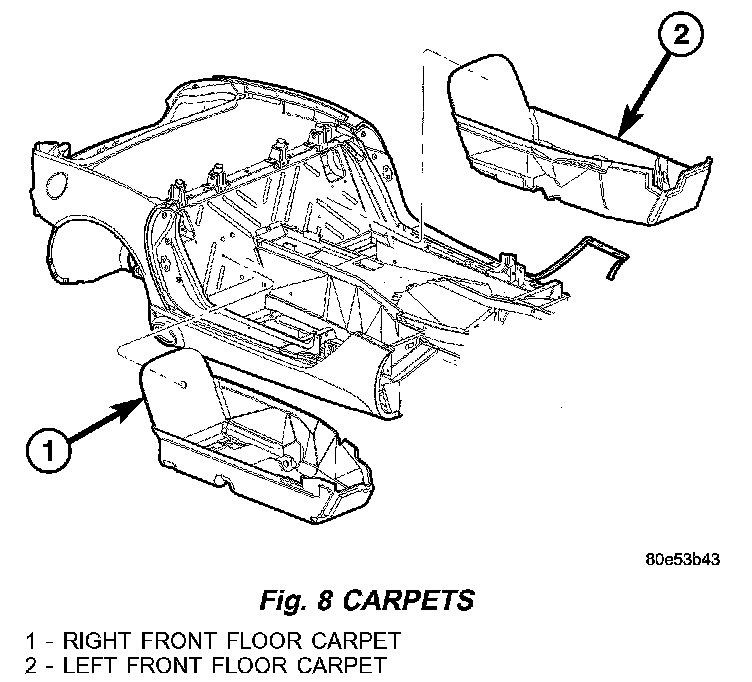

Fig. 8:

6. Remove the carpet. (Fig. 8)

Top Stack Carpet

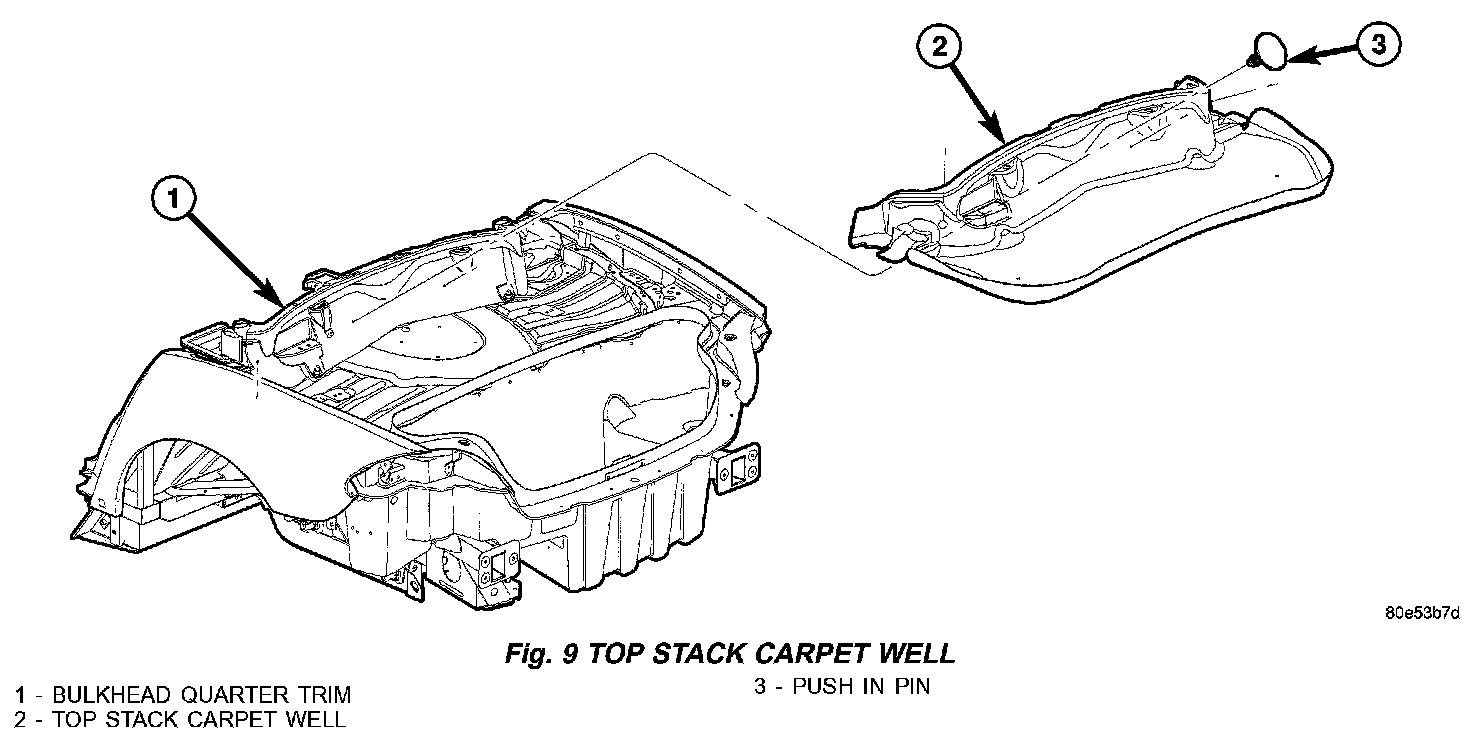

Fig. 9:

1. Remove the push pin fasteners and remove the carpet. (Fig. 9)

INSTALLATION

Floor Carpets
1. Install the carpet.
2. For the passenger side carpet, install the radio amplifier.
3. For the drivers side carpet, insert the front of the adjustable footrest into the slot and install the rear bolts.
Tighten the footrest bolts to 11 N.m (8 ft.lbs.).
4. Install the lower seat belt anchor.
5. Install the seat.
6. Connect the battery negative cable.

Top Stack Carpet
1. Install the carpet and install the push pin fasteners.
