Headliner: Service and Repair

HEADLINER - COUPE

REMOVAL

1. Remove door weatherstrip.
2. Remove A-pillar trim. Refer to Trim Panel.
3. Remove B- pillar trim. Refer to Trim Panel.
4. Remove headliner escutcheons.(4)
5. Remove sunvisors.
6. Remove push pins (4).
7. Remove headliner from vehicle.

INSTALLATION

1. Install headliner into vehicle and position headliner into position.
2. Install push pins (4).
3. Install sunvisors.

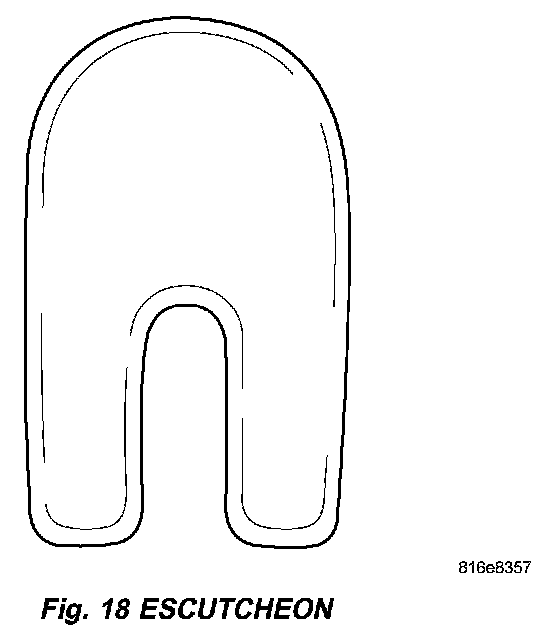

Fig. 18:

4. Install escutcheons (4). (Fig. 18)
5. Install weatherstrip.
6. Install A-pillar trim.
7. Install B-pillar trim.
