Accessory Drive Belt - Installation

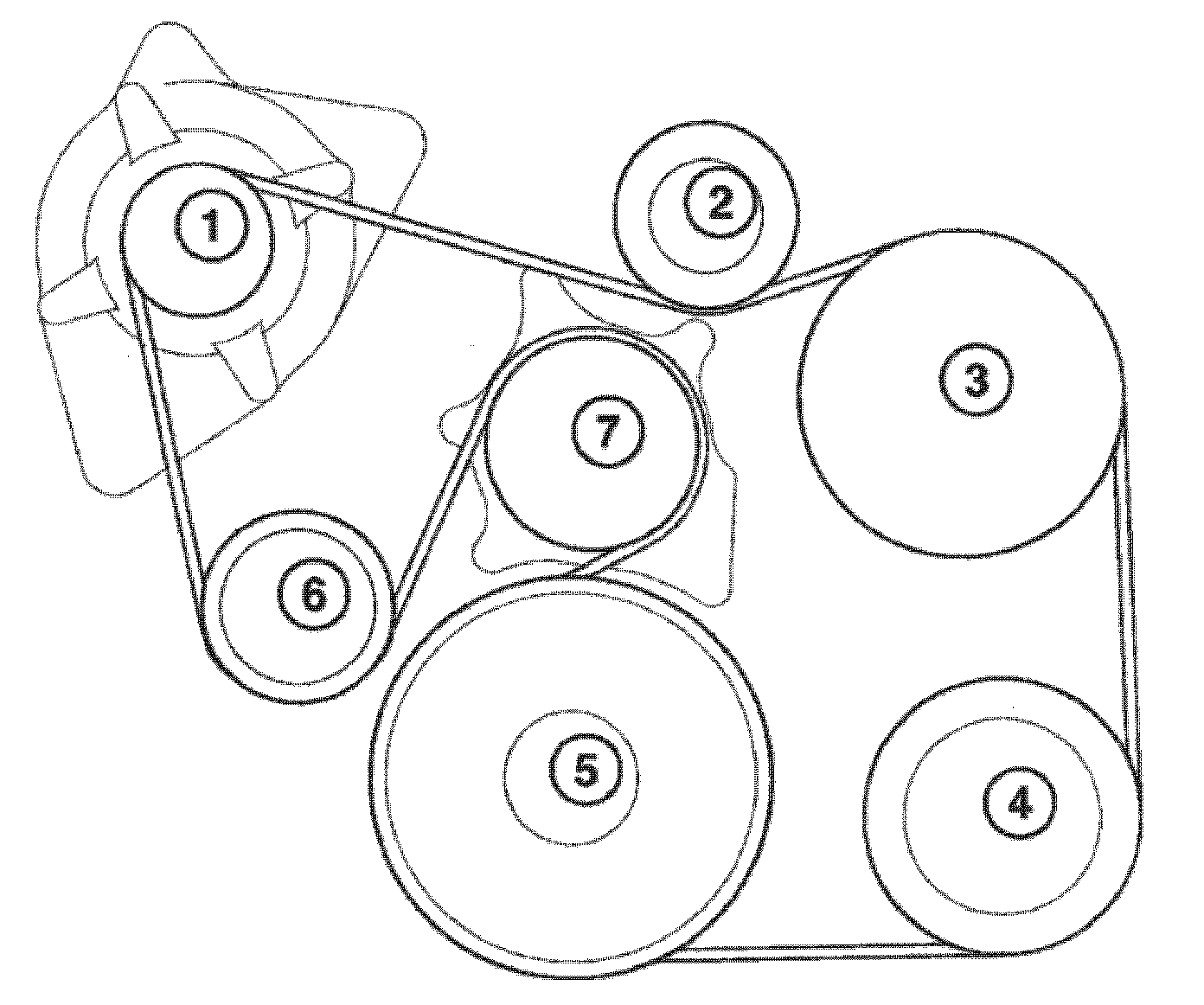

NOTE: When installing accessory drive belt onto pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulleys.

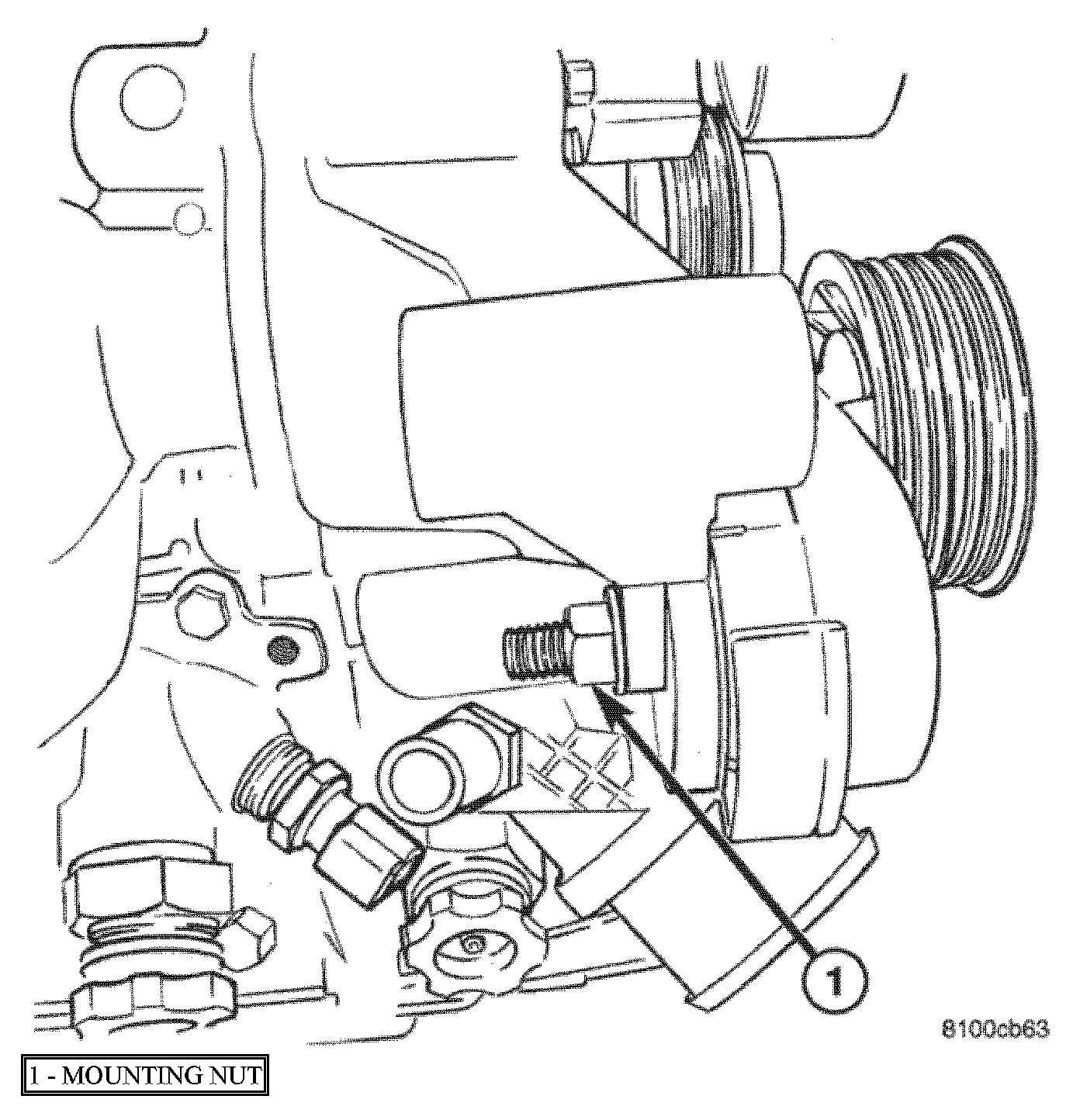

1. If belt tensioner was removed, install tensioner and mounting nut. Torque mounting nut to 41 N-m (30 ft. lbs.).













2. Position the drive belt over all pulleys except for the water pump pulley.

3. Rotate tensioner counterclockwise and slip the belt over the water pump pulley.

4. Gently release tensioner.

5. Install the air cleaner housing.
