Rear Fender Liner: Service and Repair

SHIELD-WHEELHOUSE - REAR

REMOVAL




1. Raise and support the vehicle.
2. Remove the wheels from the side of the vehicle being serviced.
3. Remove the rear portion of the body side cladding from the side of the vehicle being serviced.

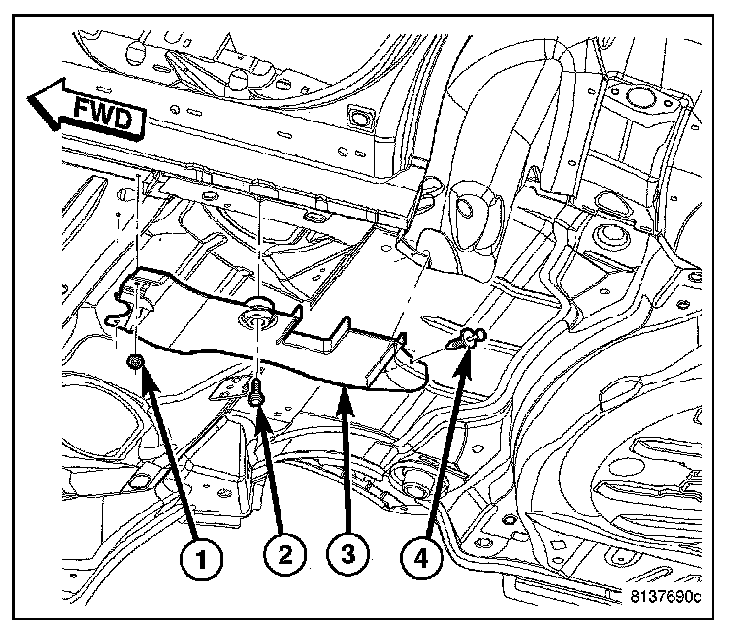

4. Remove the nuts (1), bolt (2) and the push-pins (4), that secure the lower rear wheelhouse shield (3) to the body.
5. Remove lower rear wheelhouse shield from the vehicle.

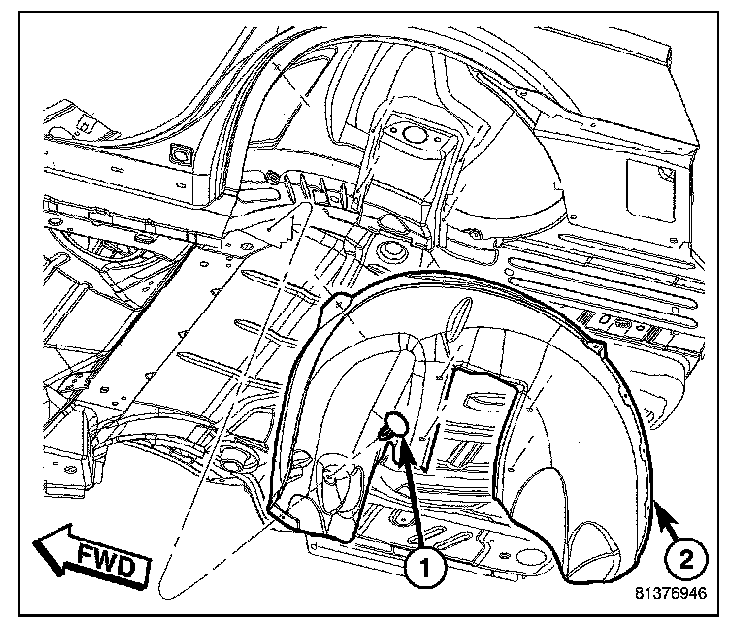

6. Remove the push-pins (1) that secure the rear wheelhouse shield (2) to the body.
7. Remove the rear wheelhouse shield from the vehicle.

INSTALLATION

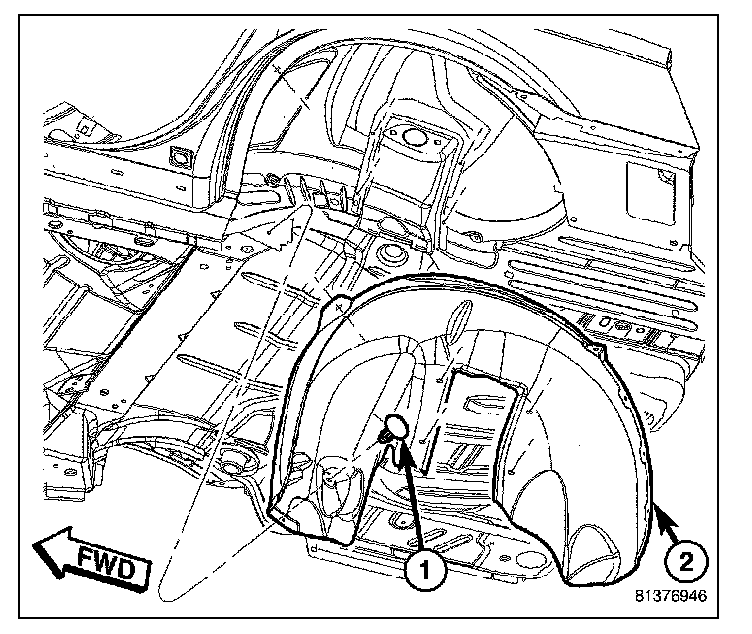

1. Position the rear wheelhouse shield (2) into the rear wheelwell.
2. Install the push-pins (1) that secure the rear wheelhouse shield to the body.

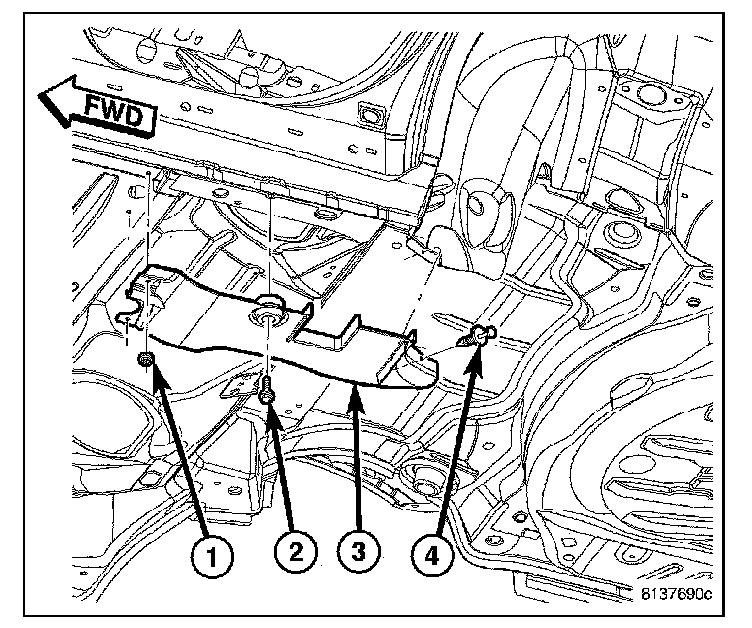

3. Position the lower rear wheelhouse shield (3) onto the body.
4. Install the nuts (1), bolt (2) and the push-pins (4) that secure the lower rear wheelhouse shield to the body. Tighten the nuts and the bolt securely.
5. Install the rear portion of the body side cladding.
6. Install the wheels.
7. Lower the vehicle.
