Connector Views
>>
Antenna
>>
Antenna Amplifier
Antenna Amplifier

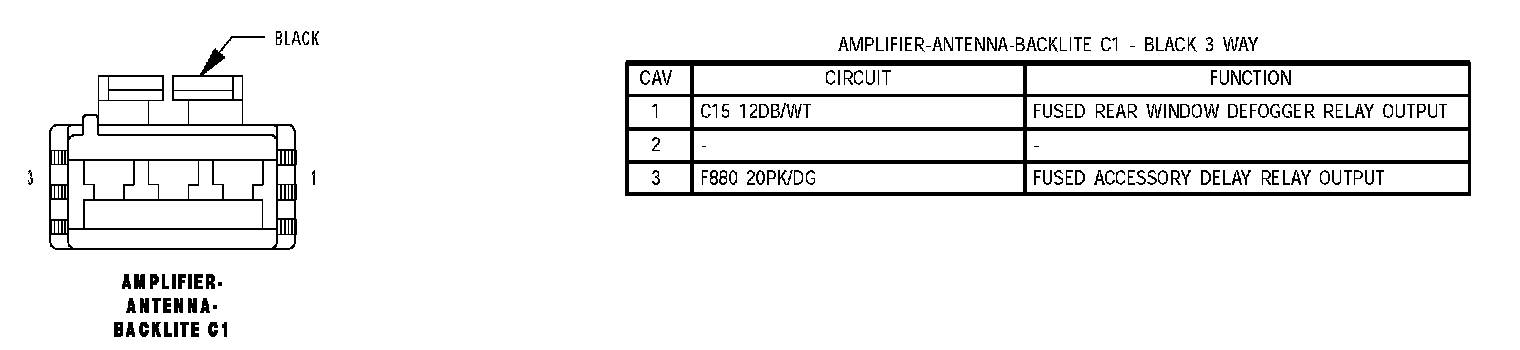

Amplifier - Antenna Backlite C1:

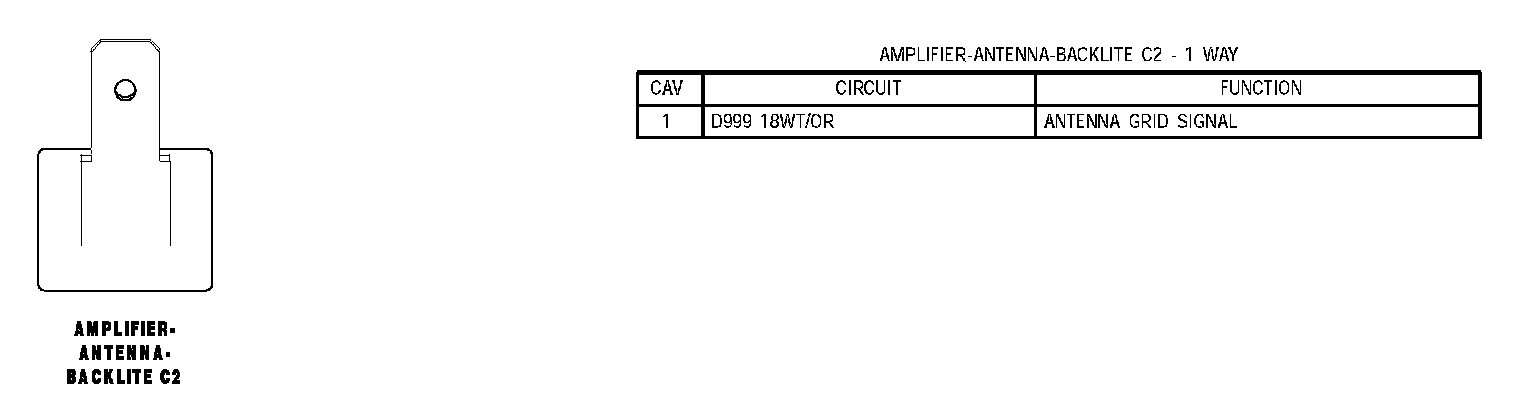

Amplifier - Antenna Backlite C2:

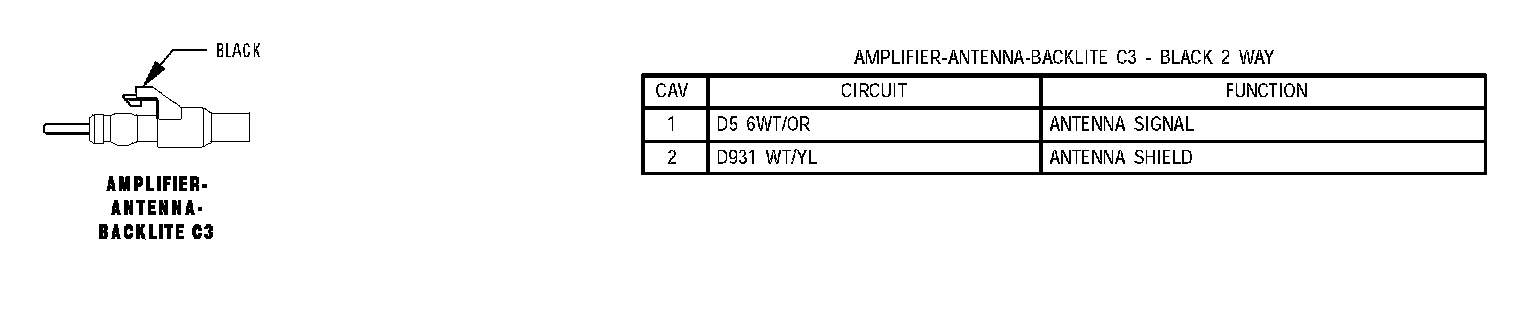

Amplifier - Antenna Backlite C3:

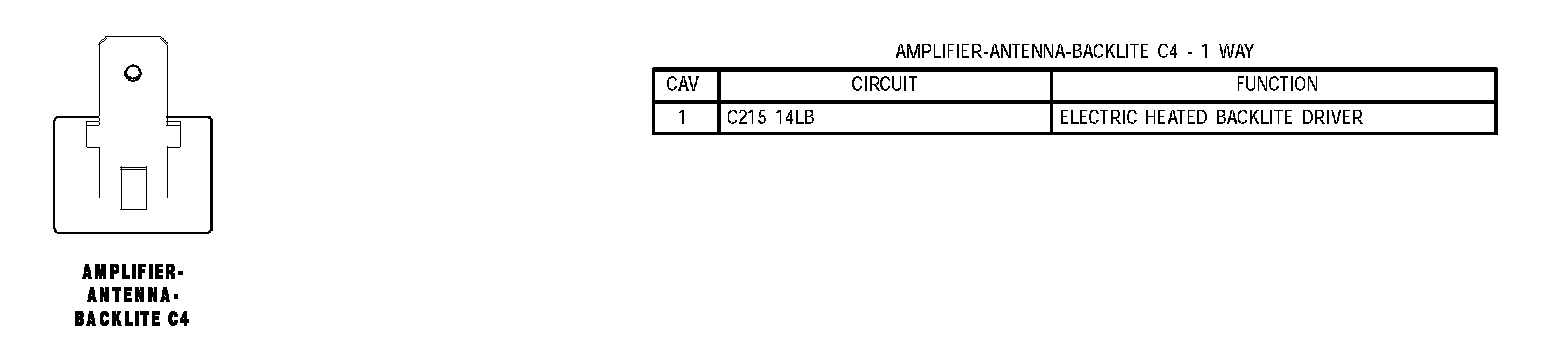

Amplifier - Antenna Backlite C4:
