Connector Views

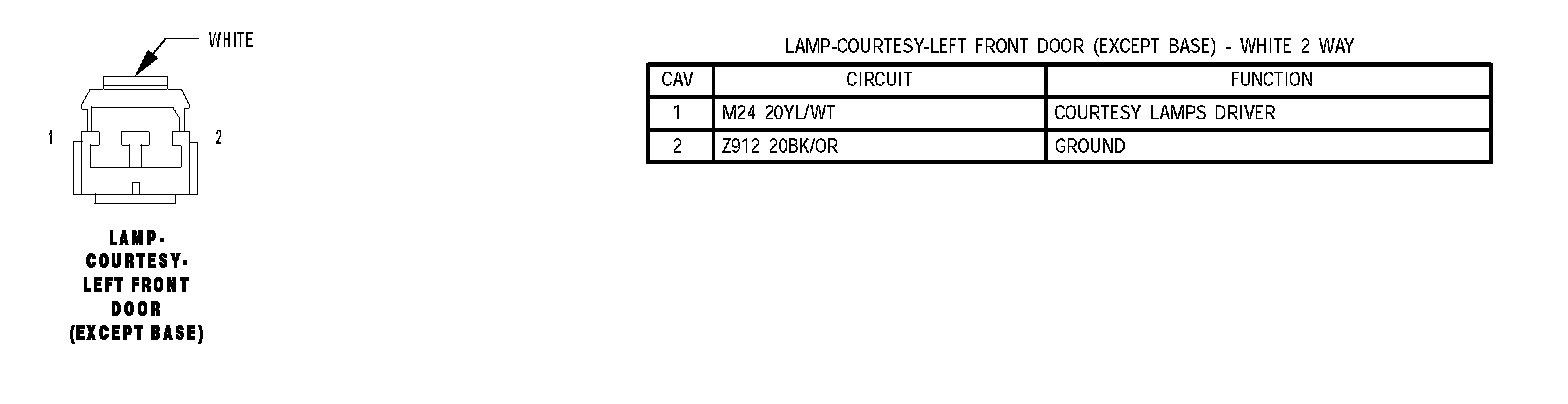

Lamp - Courtesy - Left Front Door (Except Base):

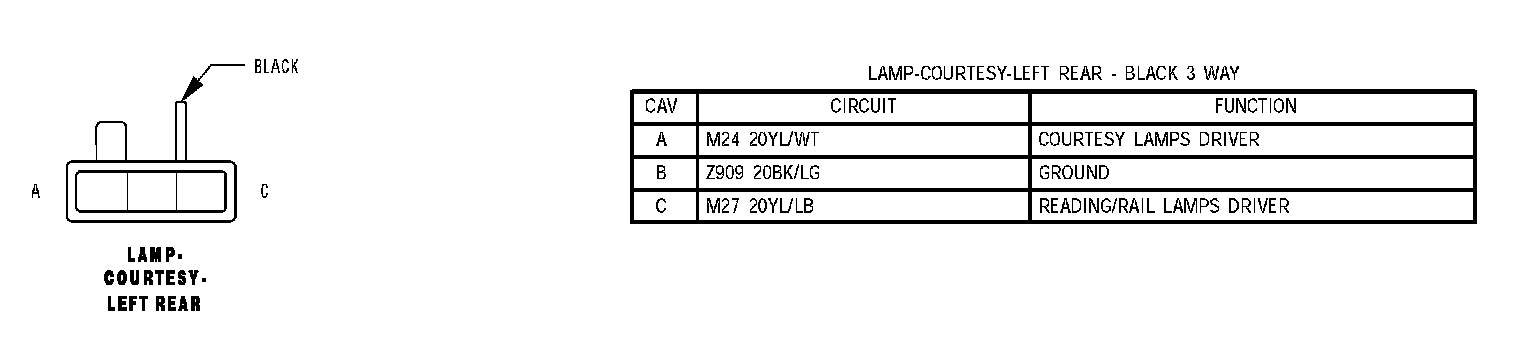

Lamp - Courtesy - Left Rear:

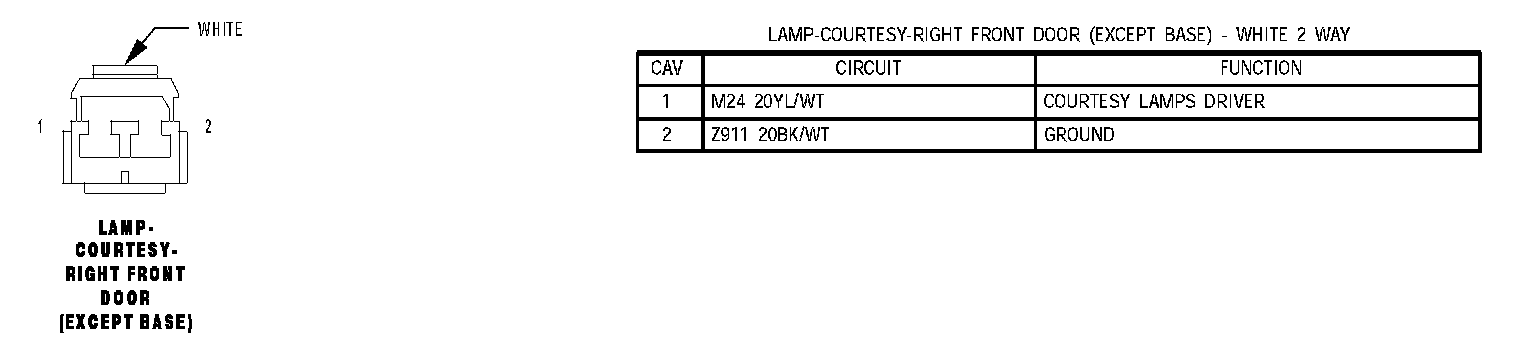

Lamp - Courtesy - Right Front Door (Except Base):

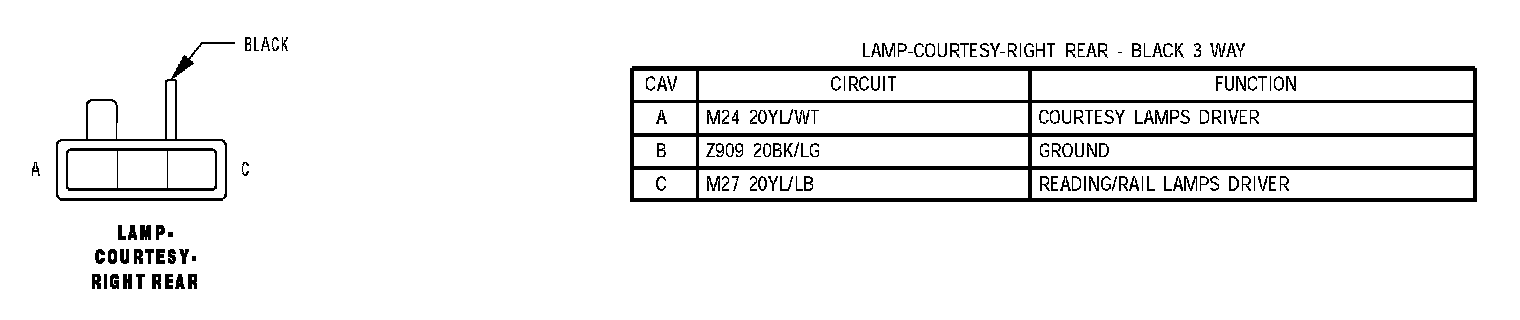

Lamp - Courtesy - Right Rear:
