Stratus Sedan V6-2.7L VIN T FFV
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
System Diagram
System Diagram

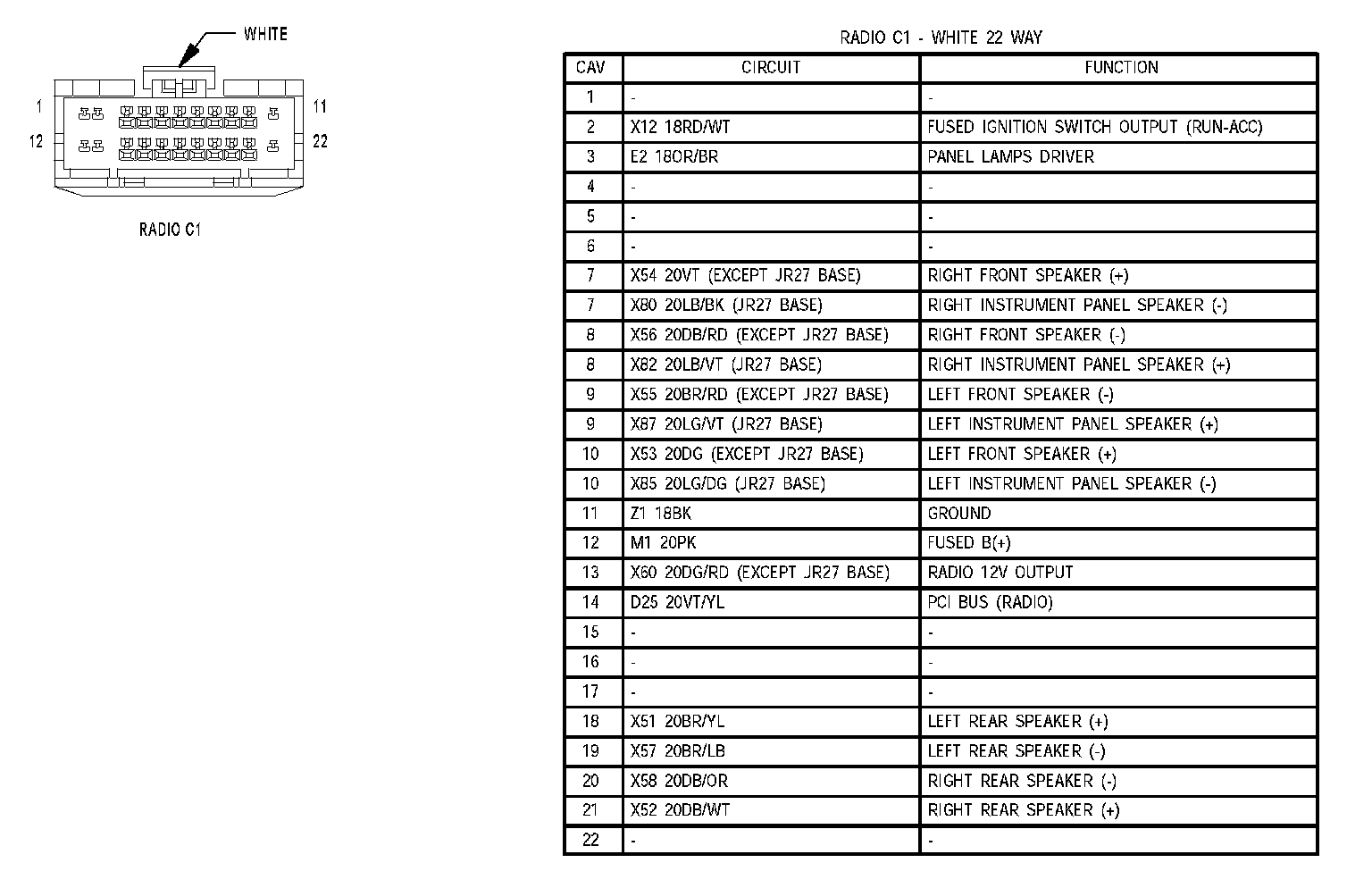

Radio C1:

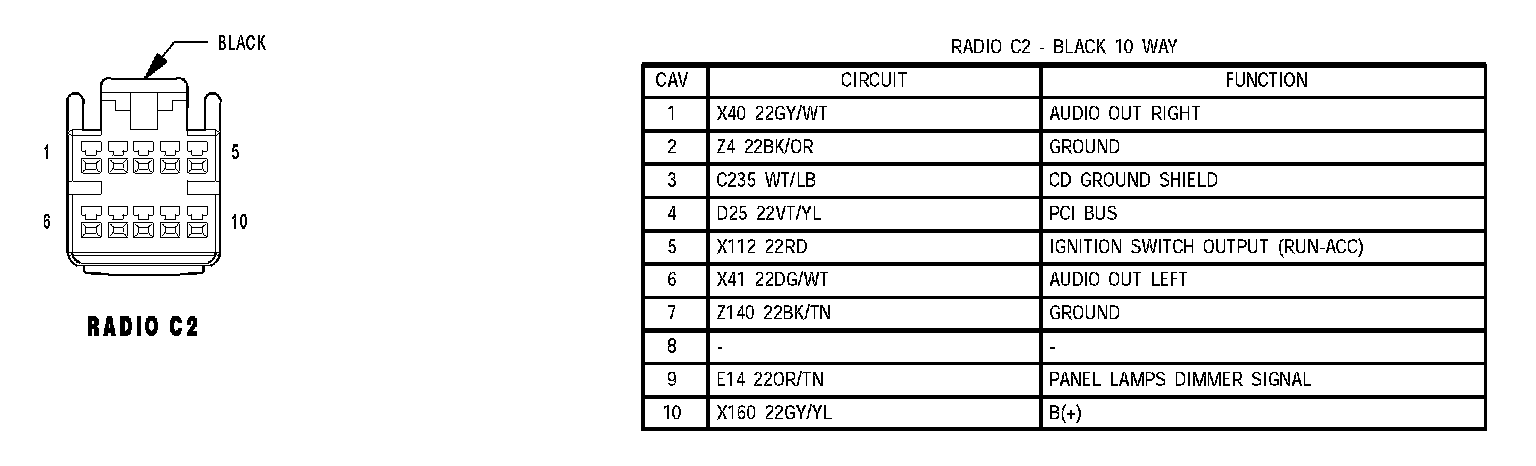

Radio C2:
