Seat Adjusters

SEAT ADJUSTERS

REMOVAL

NOTE: Do not service adjusters separate from cushion assembly.

1. Remove the seat.

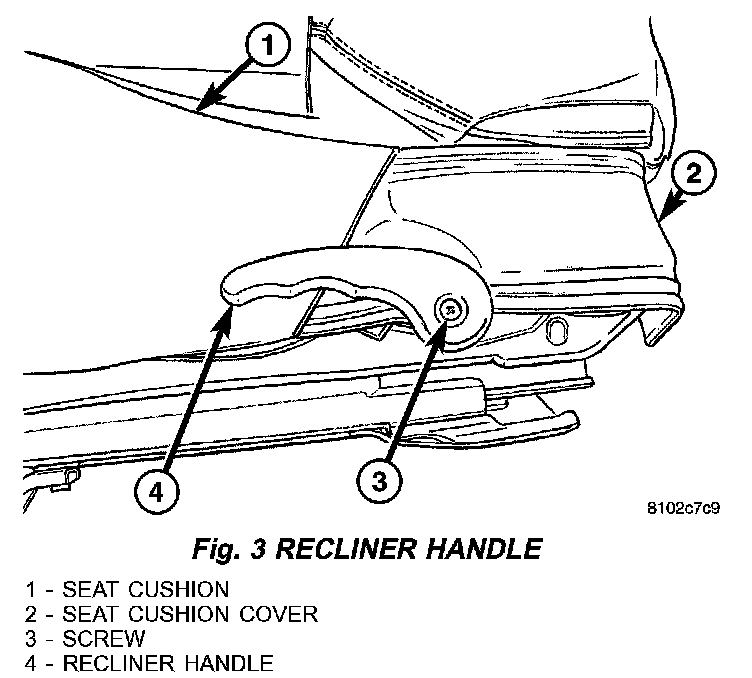

Fig. 3:

2. Remove the screw and remove the recliner handle. (Fig. 3)

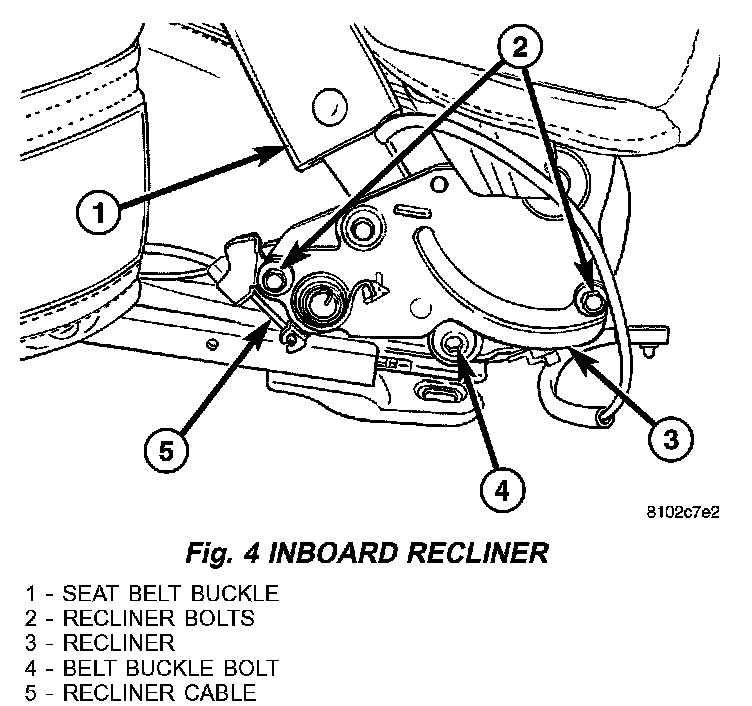

Fig. 4:

3. Remove the seat belt buckle bolt and buckle. (Fig. 4)
4. Remove the bolts attaching the recliners to the seat cushion.
5. Remove the bolts and remove the child restraint anchorage bars, if equipped.

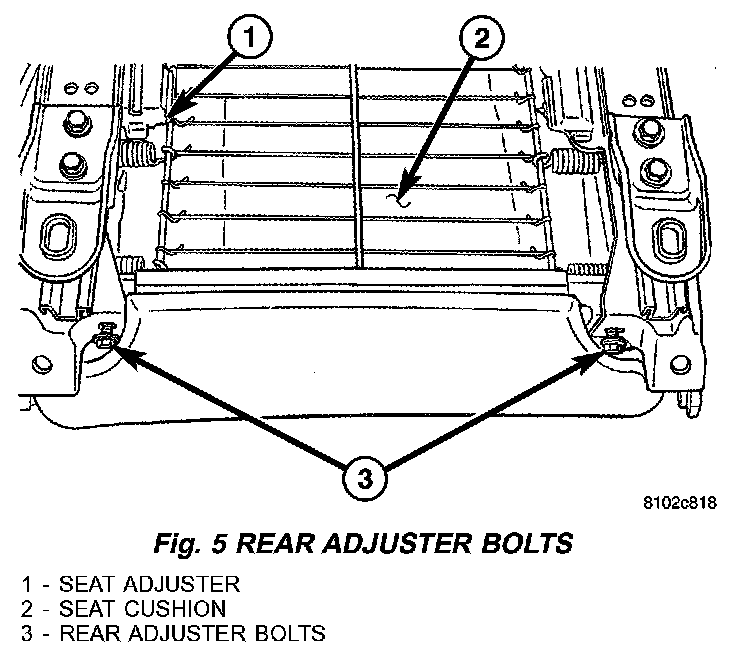

Fig. 5:

6. Remove the two rear adjuster bolts. (Fig. 5)

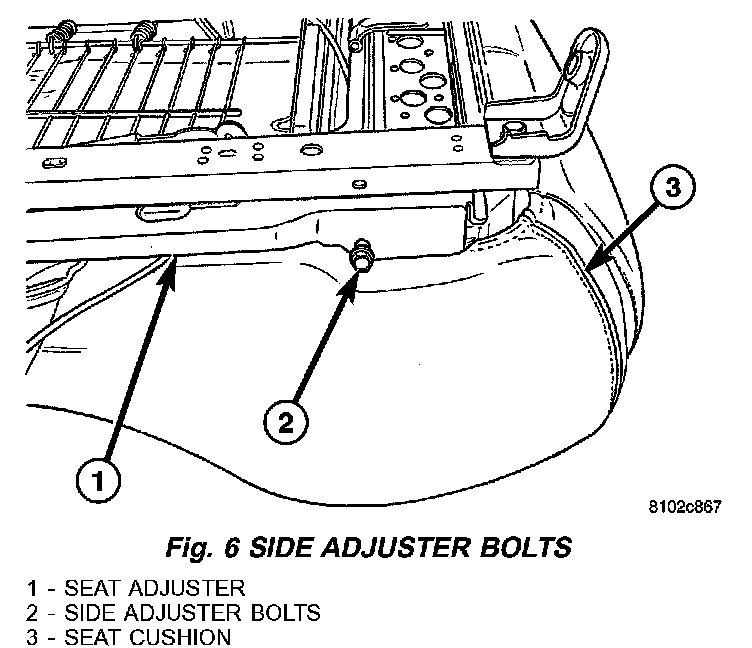

Fig. 6:

7. Remove the two side adjuster bolts and remove the adjuster. (Fig. 6)

INSTALLATION

NOTE: Do not service adjusters separate from cushion assembly.

1. Install the seat adjuster onto the seat cushion and install the bolts.
2. Tighten the bolts to 28 N.m (21 ft.lbs.).
3. Install the seat back and recliners onto the seat cushion and install the bolts.
4. Tighten the bolts to 28 N.m (21 ft.lbs.).
5. Install the child restraint anchorage bars and install the bolts, if equipped.
6. Tighten the bolts to 28 N.m (21 ft.lbs.).
7. Install the seat belt buckle and install the bolt.
8. Tighten the bolt to 40 N.m (30 ft.lbs.).
9. Position the seat cushion cover flaps back and install the recliner handle and screw.
10. Install the seat.
