Subwoofer Amplifier (Body) 10 Way
Subwoofer Amplifier (Body) 10 Way

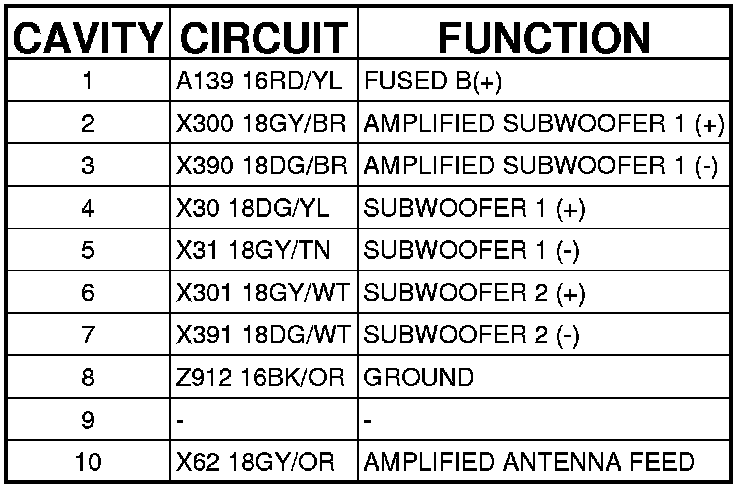

Connector - (BODY) 10 WAY

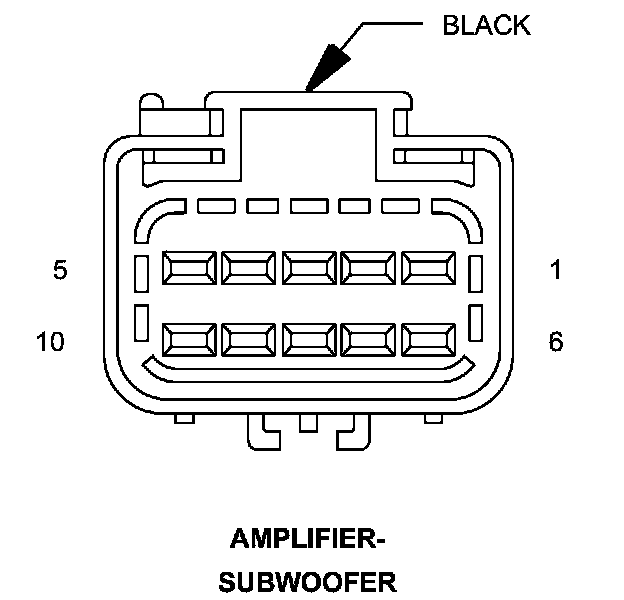

AMPLIFIER
-SUBWOOFER - (BODY) 10 WAY
