Eagle L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Testing and Inspection
>>
Delco-Remy Starters
>>
No Cranking, No Sound From Solenoid
No Cranking, No Sound From Solenoid

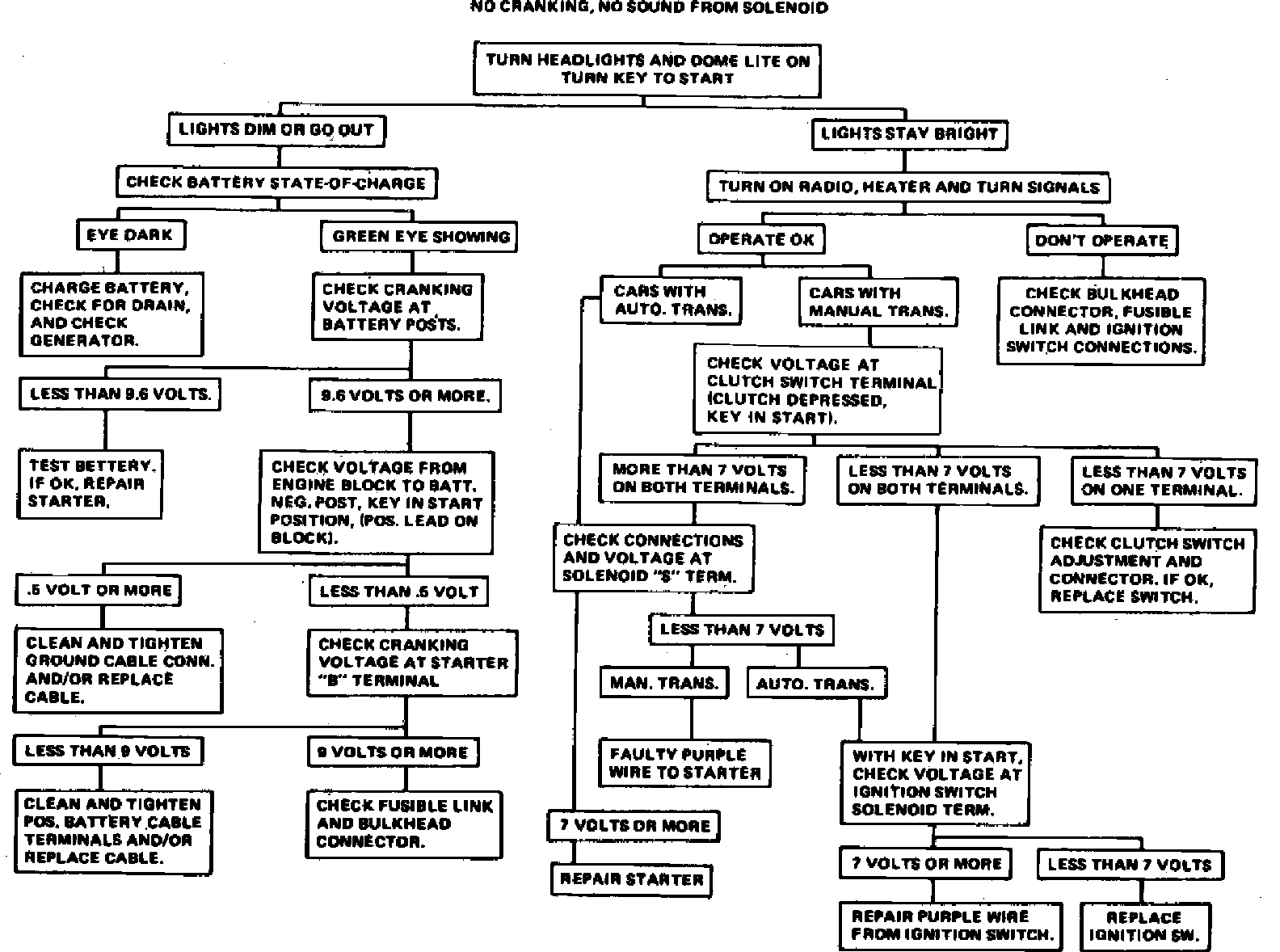

Fig. 2 Delco-Remy starter motor diagnosis:
